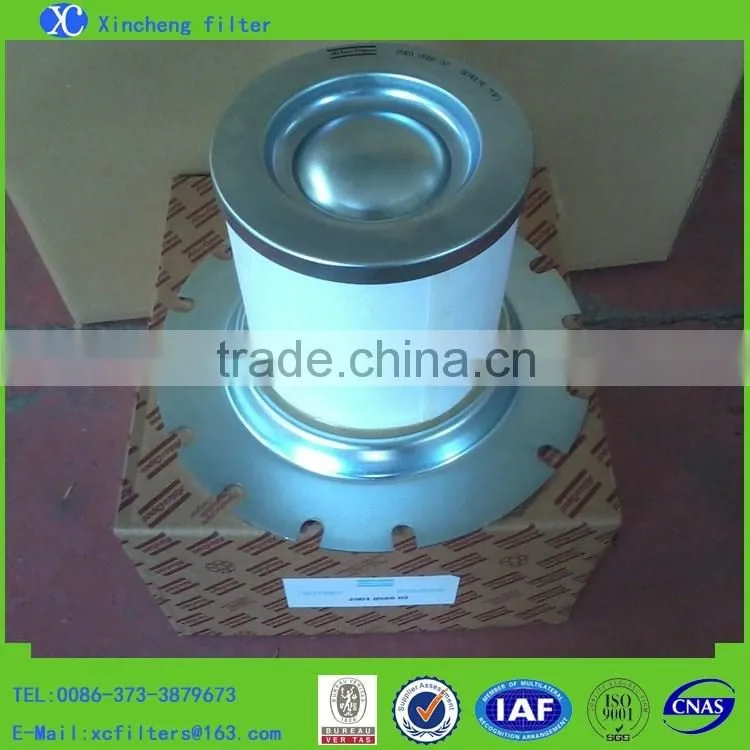

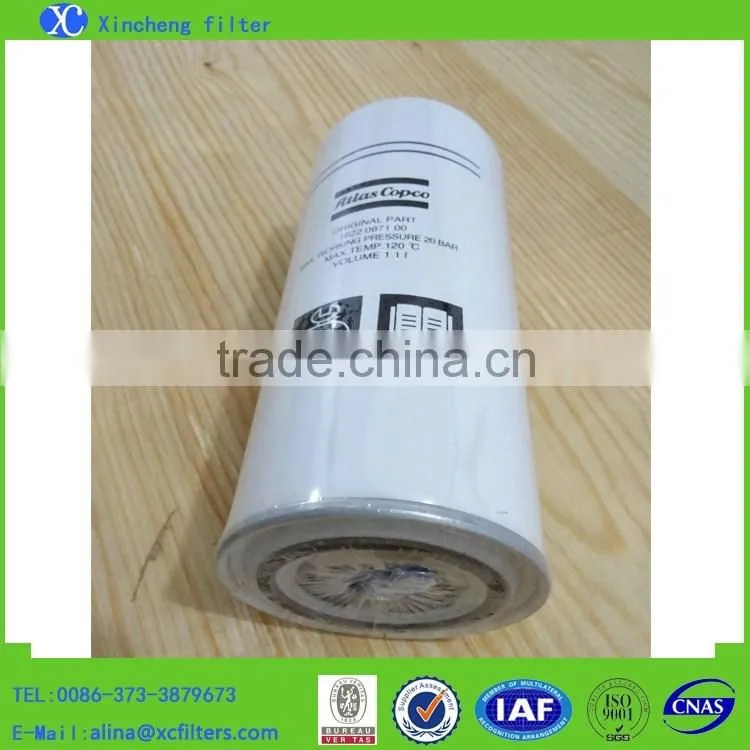

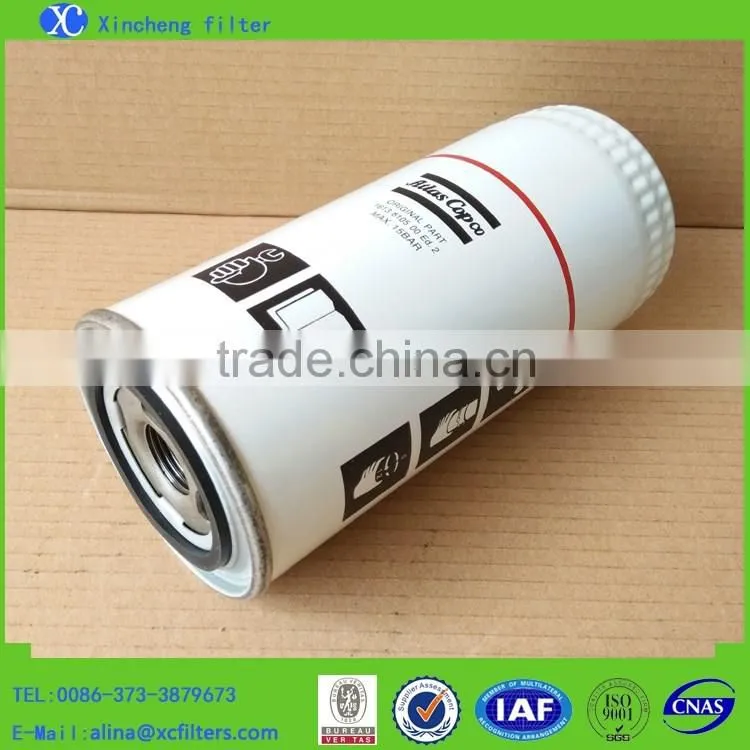

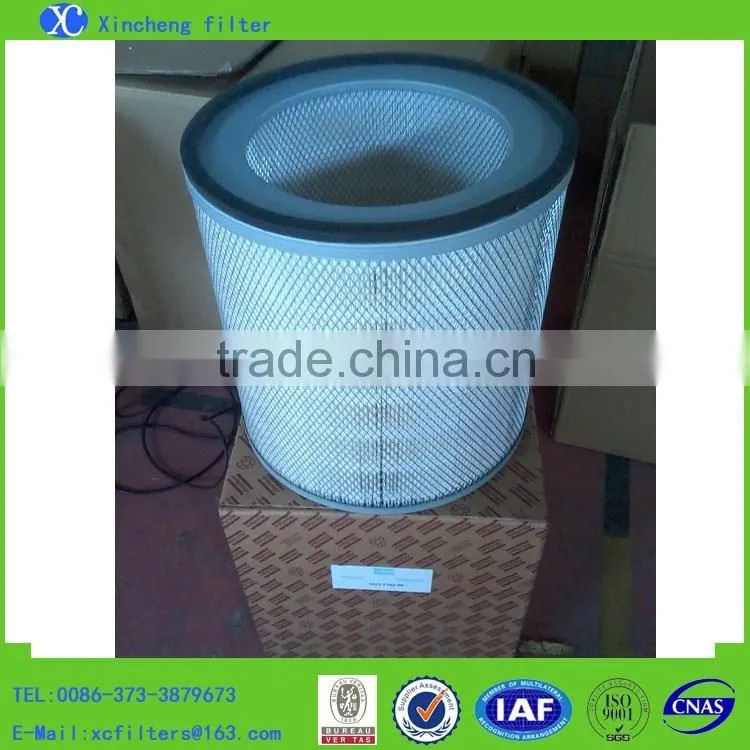

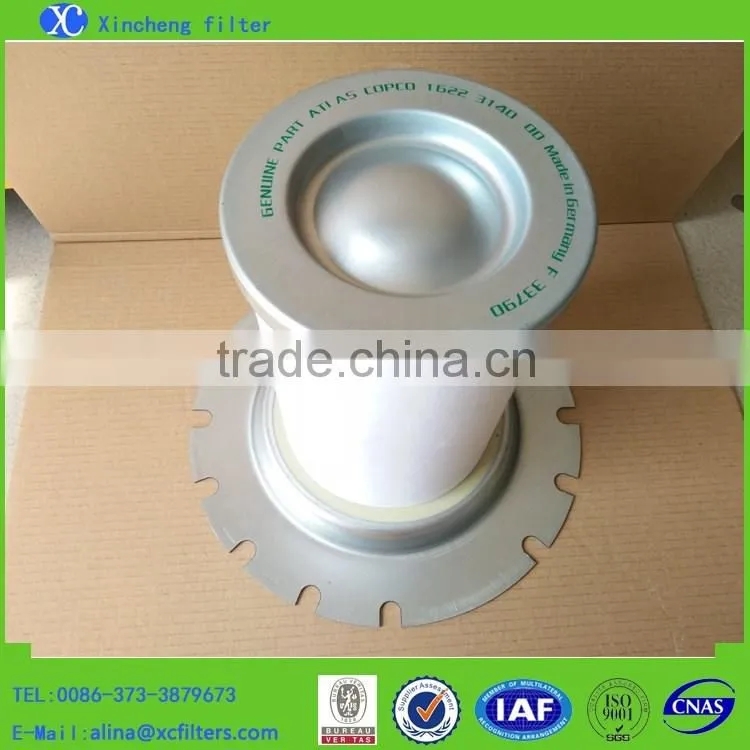

Atlas Copco Air Compressor Oil Separator Filter 1604132800
Atlas Copco Compressor Oil Filters Technical Data:
1. Filtration Accuracy: 10μm-15μm
2. Filtration efficiency: 99.8%
3. Service life is up to 2000h
4. Oil filters are made of imported US HV & Korea Ahlstrom company pure wood pulp paper
Atlas Copco Compressor Air Filters Technical Data:
1. Filtration Accuracy: 5μm-10μm
2. Filtration efficiency: 98%
3. Service life is up to 2000h
4. Air filters are made of imported US HV & Korea Ahlstrom company pure wood pulp paper
Atlas Copco Compressor Separator Technical Data
1. Filtration Accuracy: 0.1μm
2. Oil contained in compressed is below 3 ppm
3. Filtration efficiency: 99.999%
4. Service life is up to 4000-6000h
5. Initial pressure differential ≤0.02Mpa
6. Filter element of air oil separator is made of imported composite fiber, which imported from HV & Lydall company
Related Atlas Copco Compressor Filter Models
Model |
Oil Air Separator Cartridge Model |
Filter Flange Diameter (mm) |
Filter Height (mm) |
GA18 |
1612386900 |
220 |
250 |
GA22 |
1613750200(2901034300) |
240 |
175 |
GA30 |
1622007900 |
203 |
139 |
GA37 |
1613243300 |
300 |
300 |
GA45 |
1613688000 (2901021300) |
299 |
230 |
1613839700 (2901056600) |
298 |
177 |
|
GA75 |
1613730600 (2901007000) |
300 |
350 |
1613800700 (2901043200) |
400 |
300 |
|
1613955900 1613984000 |
364 |
274 |
|
GA90C |
1614642300 (2906009800) |
500 |
450 |
GA110 |
1614905400 (2906056400) |
594 |
280 |
GA132GA160 |
1614905600 |
596 |
350 |
GA160 |
1614642300 |
500 |
450 |
GA200 |
1614704800 (2906020200) |
500 |
600 |
GA250 |
1614952100 (2906058800) |
596 |
545 |
Filters Test Center
Comapny Profile
Xinxiang Xincheng Equipment Co., Ltd is a research, design, production, sales and service as one of modern science and technology enterprises. Xincheng company combines the latest technology at home and abroad, with advanced detection equipment and sophisticated manufacturing process, is committed to providing customers with the highest quality products and perfect reasonable design.
Xincheng is professional production of air compressor filter series, hydraulic oil filter series, compressor inline air filter series and vacuum pump filter series. Xincheng filte is made of imported filtration material, which is high filtration precision, good effect, long service life. In addition, we also produce filters according to customer’s samples to meet the various needs of customers.
Filters in Stock
Filters we produce Catalog
Hydraulic Oil Filter |
Air Compressor Filter Air Oil Separator / Air Filter / Oil Filter |
Compressed Inline Filter |
Vacuum Pump Filter |
|
PALL Filter HYDAC Filter MAHLE Filter Donaldson Filter Parker Filter Rexroth Filter EPE Filter Internormen Filter Taisei Kogyo Filter MP FILTRI Filter Filtrec Filter Stauff Filter Vickers Filter Argo Filter HY-PRO Filter Schroeder Filter Sofima Filter Demag Filter Hilco Filter Indufil Filter Plasser Filter Fairey Arlon Filter Allison Filter Denison Filter Norman Filter Behringer Filter Fleetguard Filter Kaydon Filter Western Filter ST Filter Purolator Filter Fram Filter Finn Filter Leemin Filter |
Atlas Copco Filter Ingersoll Rand Filter Compair Filter Fusheng Filter Sullair Filter Liutech Filter Kaeser Filter Kobelco Filter Boge Filter Zscrew Filter Quincy Filter Hitachi Filter Sotras Filter Demag Filter Gardner Denver Filter Mitsuiseiki Filter Mann&Hummel Filter
|
Atlas Copco Filter Ingersoll Rand Filter Domnick Hunter Filter Hankison Filter Ultrafilter Zander Filter Compair Filter Parker Filter Hiross Filter Sullair Filter SMC Filter Wilkerson Filter
|
Rietschle Filter Busch Filter Becker Filter Leybold Filter Orinon Filter Ulvac Filter Edwards Filter Alcatel Filter Piab Filter Pfeiffer Filter Doovac Filter Kawake Filter Pvr Italy Filter Siemens Filter
|
Filter Application: Steel factory / Power Plant / Paper mill / Wind plant / Textile factory / Marine line / Oil field / Mining / Chemical line etc. | |||
