24 Bits 60 Pin 2016 Popular Tft Lcd Panel

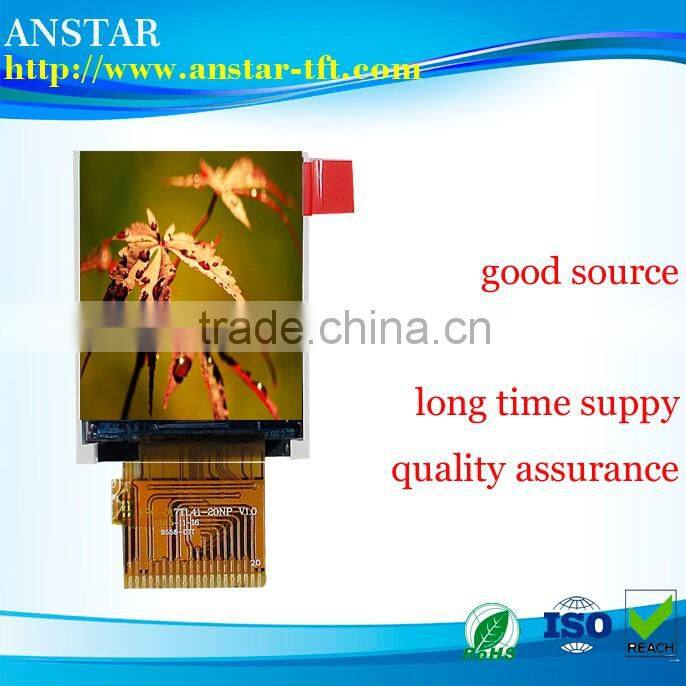

24 Bits 60 Pin 2016 Popular Tft Lcd Panel photo-1

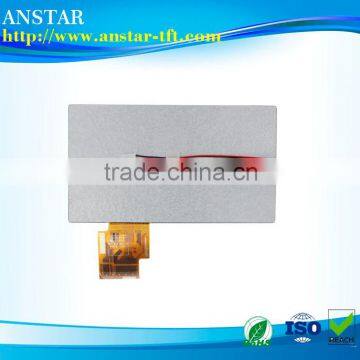

24 Bits 60 Pin 2016 Popular Tft Lcd Panel photo-2

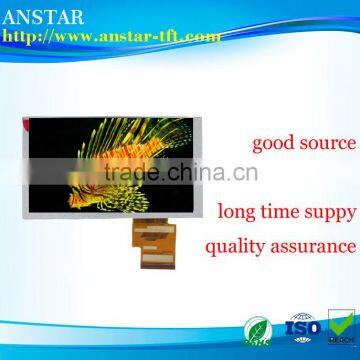

24 Bits 60 Pin 2016 Popular Tft Lcd Panel photo-3
US$ 1 - 99 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Anstar
Model Number:
AS062LA01CW-21B
Payment & Shipping
Payment Methods:
Port of Shipment:
HONGKONG
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Anstar
Model Number AS062LA01CW-21B
Type TFT
Product Description
Screen Size
6.2''
Module Size(WxHxD,mm)
155.2 x 88.2 x 5.0
Active Area(mm)
137.52 x 77.232
Display Mode
Normally White,TN
Display colors
16.7M
Resolution
800 × 3(RGB) × 480
Viewing Angle (Tpy.)θT/θB/θL/θR
70/70/75/75
Aspect Ratio
16:9
Luminance(nits)
400
Contrast Ratio
600
Power Consumption (W)
1.686
Interface
24bit*RGB
connecting type
60 pin FPC +backlight cable
Operation Temperature( ℃)
-20~70
Storage Temperature (℃)
-30~80
Driver IC
 original FOG
HTHH.(op)
60℃,90% RH
Response Time(ms)
16
Dot Pitch(WxH,mm)
0.1719 x 0.1609
