Changshu Tinymote Electrical Appliance Co., Ltd. is the professional manufacturer of heating element with more than 10 years experience.Our factory total area 3000 square meters,which is located at Suzhou City, near by Shanghai,only 50 kms far from our factory to Shanghai and 200 kms to Ningbo.
Our main products are water heating element for water heater, solar energy heating element and ALCI( capability of leakage protective plugs.).we introduced many advanced technology and equipment so that we can provide higher quality product to customer, and the delivery time will be shorter. Our products are accpeted by many customer.
| |||||||
| |||||||
| Our Product Experience | |||||||
| Tiny mote is the professional manufacturer of electric heater,with experienced design team, specialized in the production of high quality electric heating element, which mainly sales at: South Africa,the Middle East,Latin America and so on. | |||||||
| |||||||
|
|
Technical Parameter | |

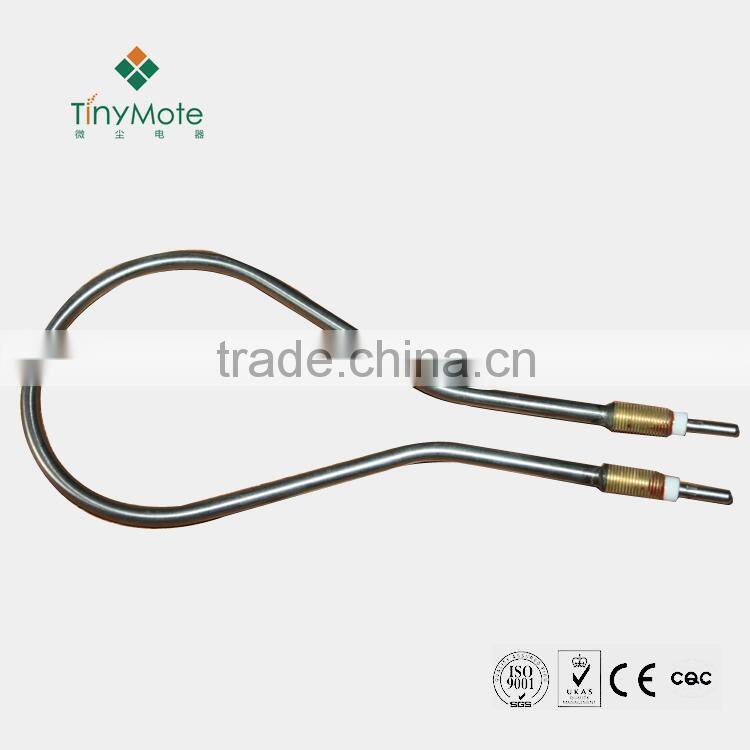

iron pipe heating element for BBQ plate | |
Body Material |
iron;brass and so on |
Pipe Size |
Φ8.0 |
Tube wall thickness |
0.5mm |

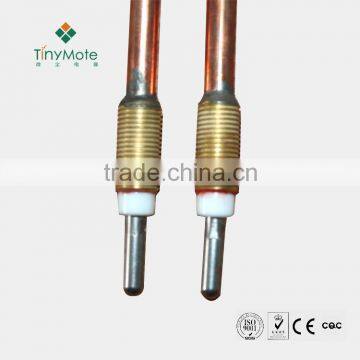

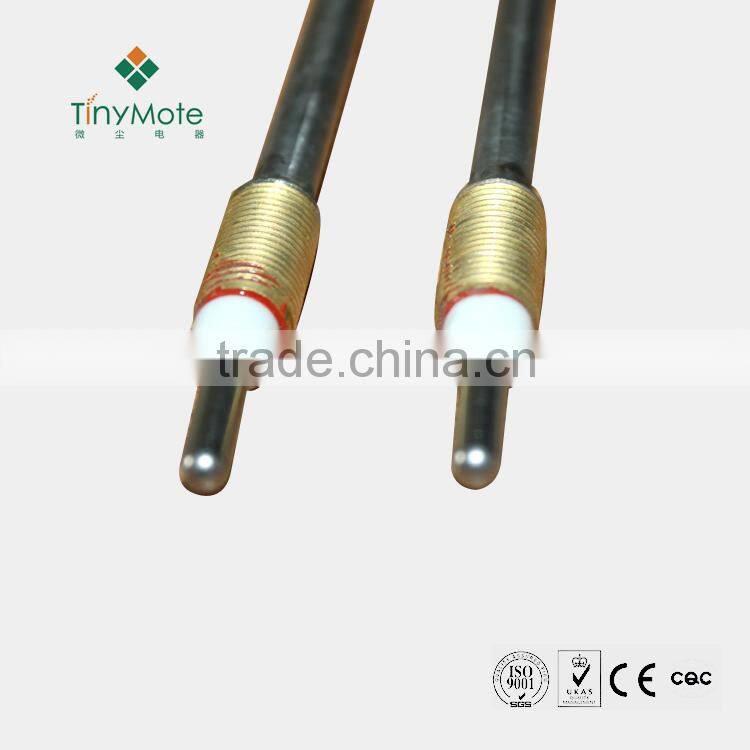

Terminal Size |
187# terminal plug,terminal spot welding withstand 10kg tension without loose. |
|
Tube surface copper |
Watt |
customized |
Voltage |
Customized |
Overall Dimensions |
OEM,customized in drawing or samples. |
Electrical Performance |
AC1500V/0.5mA.3S;DC500V 100MΩ;Leakage current<0.5mA |
Life Time |
Put in the humidity cabinet more than 48 hours under the humidity of 90~96%,then placed at the room temperature 30 minutes,should satisfy the demand of cold insulation resistance and pressure.Under the 1.15 rated voltage,dry quenching more than 150 hours,test after cooling should satisfy the cold insulation resistance and pressure requirement.Under rated voltage,power on 1 hour,power off 0.5 hour,recycle more than 1000 times,the heating element is normal. |
Warranty |
TWO year |
High- pot test |
1500V/2mA/1S |
Resistance insulation |
100MΩ MIN |
Leakage current |
0.5mA MAX |
Surface Treatment |
Oil pressure to finalize the tube design,dimensional stability |
|
Nozzle sealing with RTV silicon,instal insulating colloidal particle,safety specific creepage distance≥4mm |
|
|
| ||||||||
| ||||||||
| ||||||||
|
|
|
|
1.Q: Are you a trading company or .a factory? A:We are a factory. |
|
2.Q:Where is your factory located? How can I visit there? A:Our factory is located in Changshu of Suzhou city, Jiangsu province, China. It is about 100 km far from Changshu to Shanghai,drive only need 2 hours to our factory. All the client, from home or abroad, are warmly welcome to visit us. |
|
3.Q:How can I get some samples? A:We are honored to offer you samples,will send to you by express. |
|
4.Q:Are your products customized? A:Yes, the products in the website are only common type or the customized types ordered by our customers, we can supply products according to your samples and drawings. |
|
5.Q: How does your factory control quality? A:Quality is priority, our QC always keep step to quality control during production process,all of the orders will be delivery after QC passed. |
