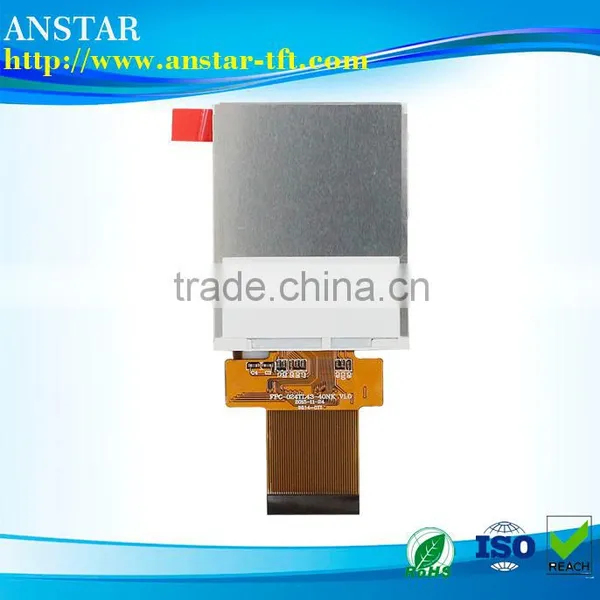

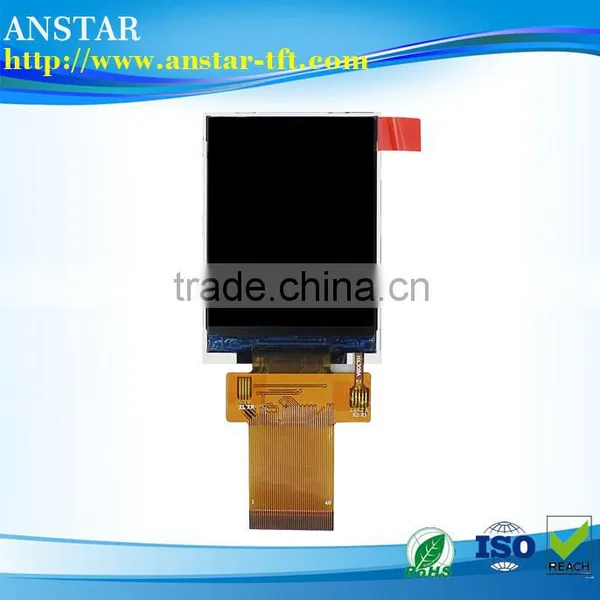

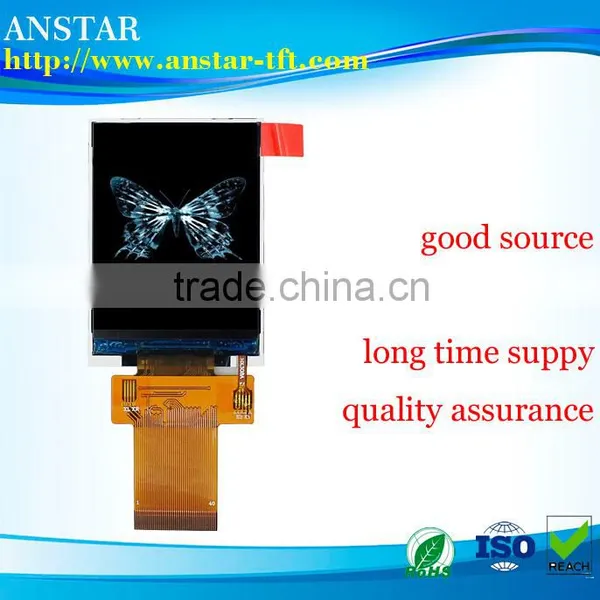

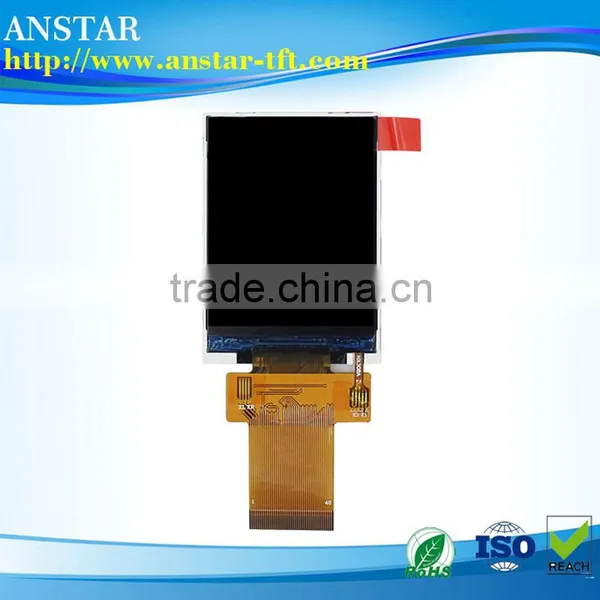

2.4 inch tft module have 40pin and display colors is 262K
| Item | AS024TL43-40NK-04B |
| Screen Size | 2.4'' |
| Module Size(WxHxD,mm) | 42.72 X 60.26 X 2.20 |
| Active Area(mm) | 36.72X48.96 |
| Display Mode | Normally White, Transmissive LCD |
| Display colors | 262K |
| Resolution | 240× (RGB) × 320 |
| Viewing Angle (Tpy.)θT/θB/θL/θR | 70/50/70/70 |
| Aspect Ratio | 3:4 |
| Luminance(nits) | 230 |
| Contrast Ratio | 250 |
| Power Consumption (W) | TBD |
| Interface | 8/16Bits Parallel interface&SPI |
| connecting type | 40pin FPC |
| Operation Temperature( ℃) | -20-70 |
| Storage Temperature (℃) | -30-80 |
| Driver IC | ILI9341V |
| HTHH.(op) | 60℃,90% RH |
| Response Time(ms) | 30 |
| Dot Pitch(WxH,mm) | 0.18x0.06 |
