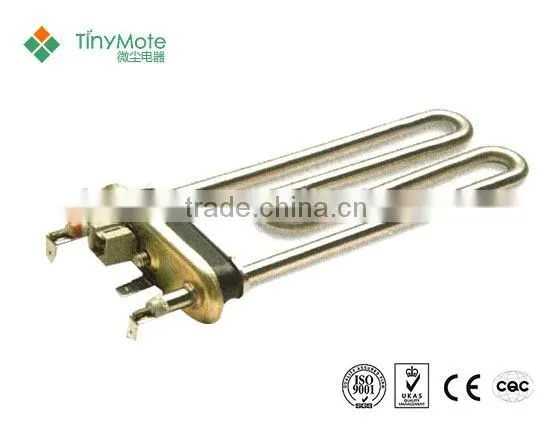

Help CenterSUS304 Heating Tube for Washing Machine
Related Products
-
Tinymote Manufacture Washing Machine Heating TubeUS$ 2 - 10MOQ: 1000 Pieces -
Washing Machine Spare Parts Heating Element Quality ChoiceUS$ 3 - 7MOQ: 1 Piece
-
Manufacturing 2100W Heating Element for Automatic Washing MachineUS$ 2 - 10MOQ: 1 Piece
-
High Quality Customized Stainless Steel Washing Mashine Heating ElementUS$ 3 - 7MOQ: 1 Piece
-
Tinymote Washing Machine HeaterUS$ 2 - 10MOQ: 1000 Pieces
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| Packing | |||||||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||||||

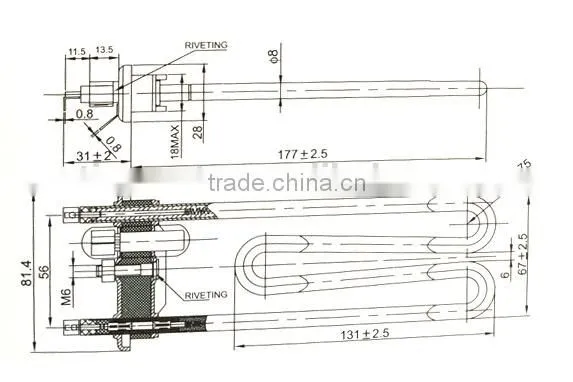

Technical Parameter | |
Washing machine heating tube | |
Body Material |
SUS304 or England 800 and so on |
Pipe Size |
Φ8.0 |
Tube wall thickness |
0.5mm |
Terminal Size |
187# terminal plug,terminal spot welding withstand 10kg tension without loose. |
Terminal Connection |
Instal flange riveting with tube,riveted flange withstand 25kg tension without loose |
Watt |
customized |
Voltage |
Customized |
Overall Dimensions |
OEM,customized in drawing or samples. |
Electrical Performance |
AC1500V/0.5mA.3S;DC500V 100MΩ;Leakage current<0.5mA |
Life Time |
Put in the humidity cabinet more than 48 hours under the humidity of 90~96%,then placed at the room temperature 30 minutes,should satisfy the demand of cold insulation resistance and pressure.Under the 1.15 rated voltage,dry quenching more than 150 hours,test after cooling should satisfy the cold insulation resistance and pressure requirement.Under rated voltage,power on 1 hour,power off 0.5 hour,recycle more than 1000 times,the heating element is normal. |
Warranty |
TWO year |
High- pot test |
1500V/2mA/1S |
Resistance insulation |
100MΩ MIN |
Leakage current |
0.5mA MAX |
Surface Treatment |
Oil pressure to finalize the tube design,dimensional stability |
Hydraulic testing |
withstand 1.2MPa pressure test no leakage |
|
Nozzle sealing with ethoxyline,instal insulating ceramics,safety specific creepage distance≥4mm |
welding of flange technique |
Flange and pipe joint with tinning welding |
|
1.Q: Are you a trading company or .a factory? A:We are a factory. |
|
2.Q:Where is your factory located? How can I visit there? A:Our factory is located in Changshu of Suzhou city, Jiangsu province, China. It is about 100 km far from Changshu to Shanghai,drive only need 2 hours to our factory. All the client, from home or abroad, are warmly welcome to visit us. |
|
3.Q:How can I get some samples? A:We are honored to offer you samples,will send to you by express. |
|
4.Q:Are your products customized? A:Yes, the products in the website are only common type or the customized types ordered by our customers, we can supply products according to your samples and drawings. |
|
5.Q: How does your factory control quality? A:Quality is priority, our QC always keep step to quality control during production process,all of the orders will be delivery after QC passed. |
