7 Inch High Luminance Tft Lcm1800nits, 800 *480 Lcd Module

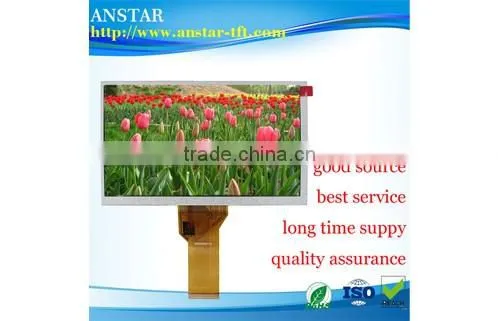

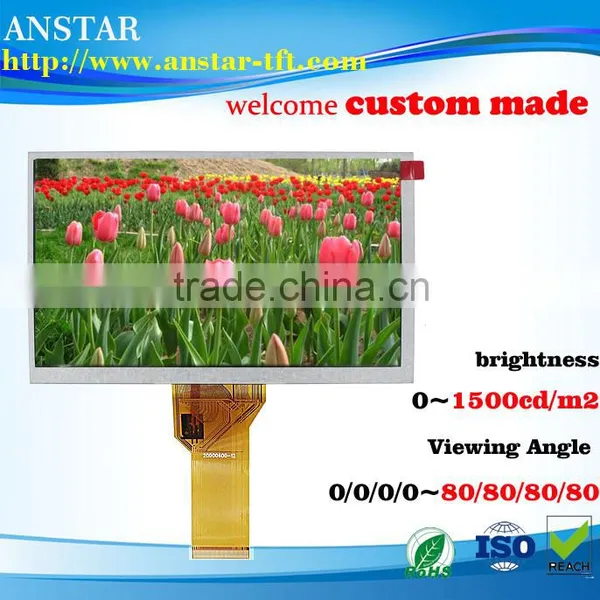

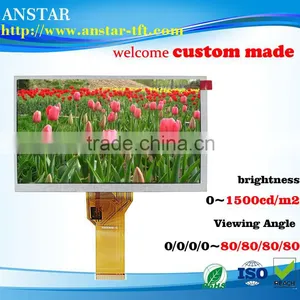

7 Inch High Luminance Tft Lcm1800nits, 800 *480 Lcd Module photo-1

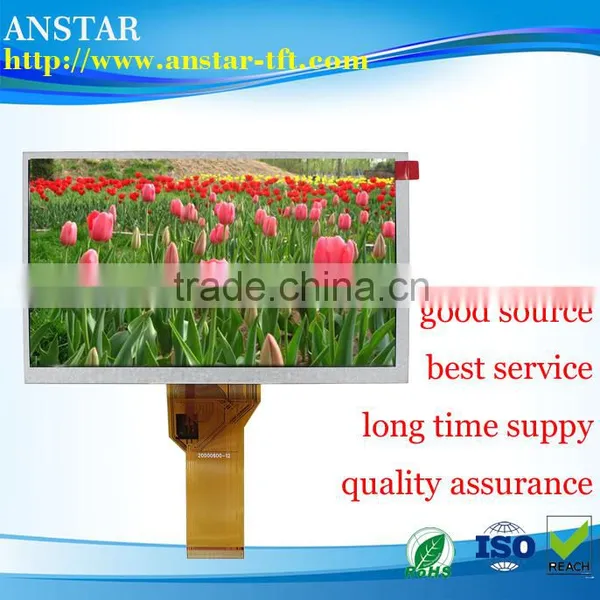

7 Inch High Luminance Tft Lcm1800nits, 800 *480 Lcd Module photo-2

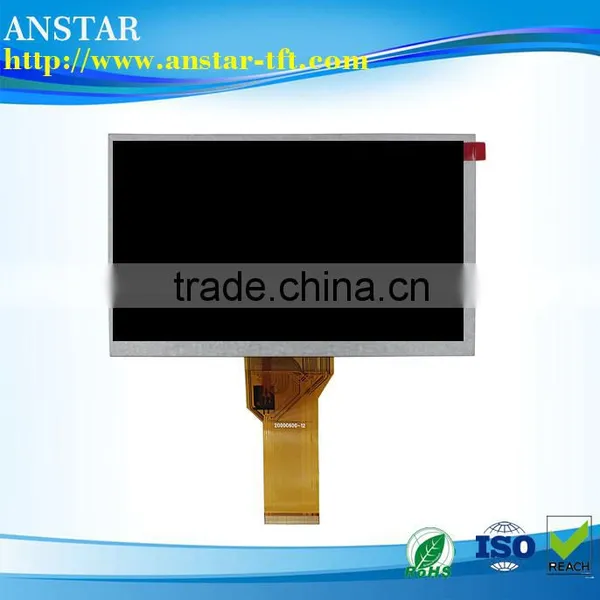

7 Inch High Luminance Tft Lcm1800nits, 800 *480 Lcd Module photo-3

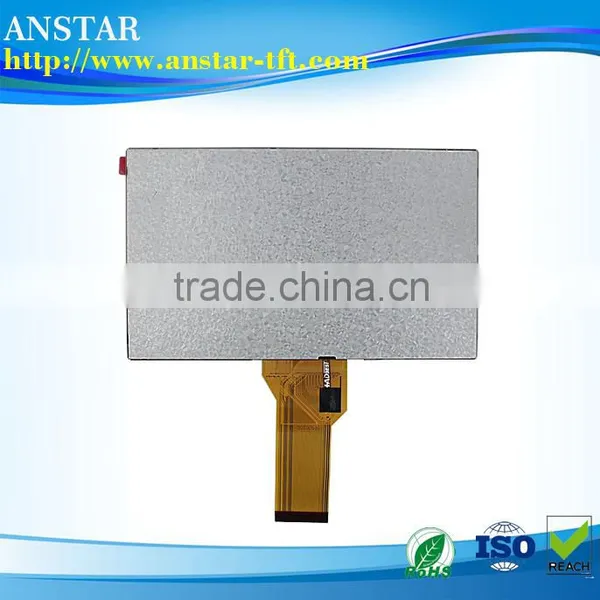

7 Inch High Luminance Tft Lcm1800nits, 800 *480 Lcd Module photo-4
US$ 1 - 99 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ANSTAR
Model Number:
AS070TN492-21A
Payment & Shipping
Payment Methods:
Port of Shipment:
HONGKONG
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ANSTAR
Model Number AS070TN492-21A
Type TFT
Product Description
Item
MD070TN492-21A
Screen Size
7"
Module Size(WxHxD,mm)
165 x 99.6x 6.5
Active Area(mm)
154.08 × 85.92
Display Mode
Normally White, Transmissive
Display colors
16.7M
Resolution
800 × 3(RGB) × 480
Viewing Angle (Tpy.)θT/θB/θL/θR
50/70/70/70
Aspect Ratio
16:9
Luminance(nits)
1800
Contrast Ratio
500
Power Consumption (W)
5.76
Interface
24bit*RGB
connecting type
50pin FPC
+backlight FPC
Operation Temperature( ℃)
-20~70
Storage Temperature (℃)
-30~80
HTHH.(op)
60℃,90% RH
Response Time(ms)
25
Dot Pitch(WxH,mm)
0.0642 × 0.1790

Anstar Electronics Co,Ltd was established in 2007 , which is committed to researching and developing of TFT panel modules , manufacturing and selling of high-tech .

Our company has many years of experience in research, developing and manufacturing. and we also have a professional quality management team . We always persevere with work in the TFT display field and we try to provide excellent products and best service for the customer. Our company passed the certification of IS09001-2008 quality management system certification, and we have high standard purified workshops, automated assembly production line, high precision testing instruments and professional reliable testing equipment for production, etc.
