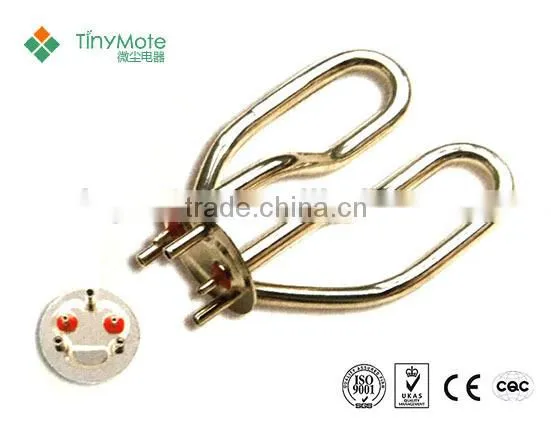

Help CenterImmersion Heating Element for Water Kettle
Related Products
-
Jiangsu T2 Electric Kettle Heating TubeUS$ 2 - 10MOQ: 1000 Pieces -
Custom Made Copper Electric Kettle Heating ElementUS$ 2 - 10MOQ: 1000 Pieces
-
Heating Tube for Electric Kettle PartsUS$ 2 - 10MOQ: 1000 Pieces
-
Copper Electric Kettle Heating ElementUS$ 2 - 10MOQ: 1000 Pieces
-
Changshu Manufacture High Quality T2 Red Copper Electric Kettle Heating ElementUS$ 1 - 10MOQ: 1 Piece
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| Packing | |||||||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||||||
Technical Parameter | |
Electric Kettle Heating Tube | |
Body Material |
T2 red copper |
Pipe Size |
Φ8.0 |
Tube wall thickness |
0.4~0.5mm |
Terminal Size |
187# or 250#terminal plug,terminal spot welding withstand 10kg tension without loose. |
Terminal Connection |
squeeze riveted to withstand tension of 5 kg |
Temperature Control |
3.6±0.4;13.1±0.25;14.1±0.2 |
Watt |
customized |
Voltage |
Customized |

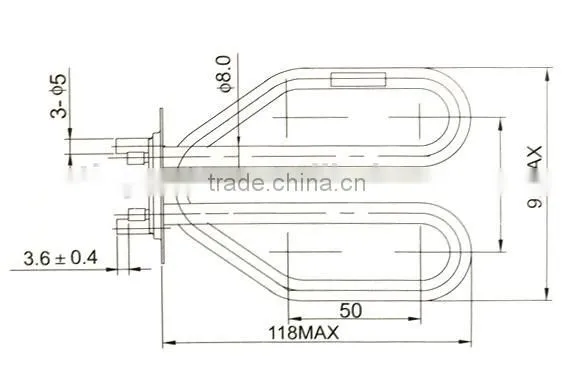

Overall Dimensions |
scissors, OEM, customized in drawing or samples. |
Electrical Performance |
AC1500V/0.5mA.3S;DC500V 100MΩ;Leakage current<0.5mA |
Life Time |
Power on 0.5 time voltage boil dry until trip,then water cooling within 5 seconds,non-yellowing on tube surface.Coating without upwarping and sparkling. |
Warranty |
TWO year |
High- pot test |
1500V/2mA/1S |
Resistance insulation |
100MΩ MIN |
Leakage current |
0.5mA MAX |
Surface Treatment |
electronickelling |
Hydraulic testing |
withstand 1.2MPa pressure test no leakage |
flange material |
brass |
welding of flange technique |
Flange and pipe joint with brazing |
|
1.Q: Are you a trading company or .a factory? A:We are a factory. |
|
2.Q:Where is your factory located? How can I visit there? A:Our factory is located in Changshu of Suzhou city, Jiangsu province, China. It is about 100 km far from Changshu to Shanghai,drive only need 2 hours to our factory. All the client, from home or abroad, are warmly welcome to visit us. |
|
3.Q:How can I get some samples? A:We are honored to offer you samples,will send to you by express. |
|
4.Q:Are your products customized? A:Yes, the products in the website are only common type or the customized types ordered by our customers, we can supply products according to your samples and drawings. |
|
5.Q: How does your factory control quality? A:Quality is priority, our QC always keep step to quality control during production process,all of the orders will be delivery after QC passed. |
