Plastic Short Tubular M18 / Cylindrical Infrared Photoelectric Sensors / Photocell Sensor /Mechanical parts /

Name: Plastic Short Tubular M18 / Cylindrical Infrared Photoelectric Sensors / Photocell Sensor /Mechanical parts /
Brand: DRH
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Taiwan
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Taiwan	Brand Name:	DRH	Model Number:	MDR-10/MDR-40/MDR-300/MDR-1000
Usage:	Position Sensor	Theory:	Optical Sensor	Output:	Digital Sensor

Product Description

Features

• Short PBT Plastic Tubular

• All series –M12 connector saving space

• All series easy & speedy replace.

• Sensing distance:

1.Diffuse-reflective : 5 cm ~ 1M

2. Retro-reflective : 1M ~ 3M

3. Through Beam Type : 10M ~ 20M.

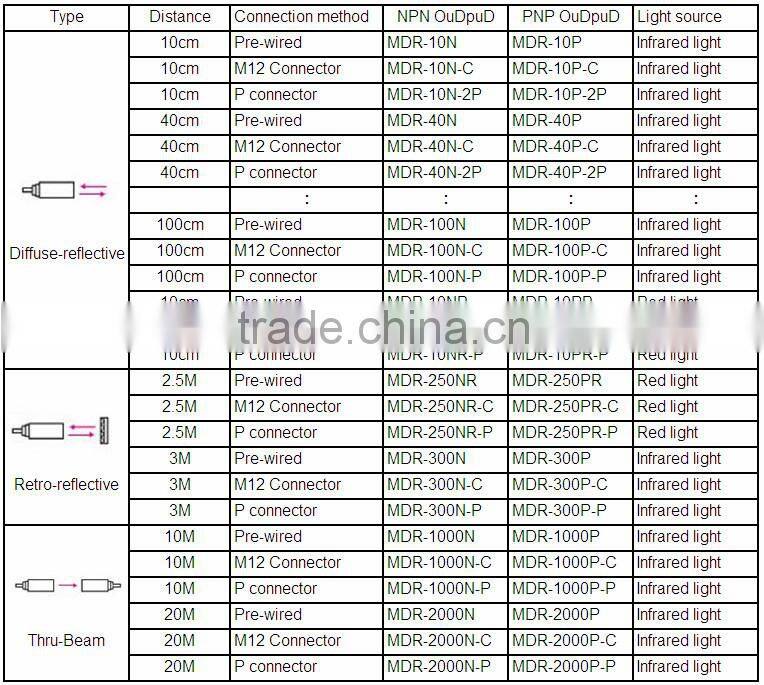

Ordering Information

Specification

	Diffuse-reflective			Retro-reflective			Thru-Beam
Light source (wavelength)	Infrared light	Red light		Infrared light	Red light		Infrared light
Sensing distance	10cm / 40cm / 100cm	10cm/20cm		3M	2.5M		10M / 20M
Standard Object	10*10 cm white paper
Differential travel	10% max. of sensing distance
Protection circuits	Power supply reverse polarity protection, Output short-circuit protection
	Output reverse polarity protection
Output control	Light-ON/Dark-ON selectable
Power supply voltage	10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption	<30mA
Load current	Max DC 30V 100mA
Response frequency	400 Hz . 1ms
Indicator	Red LED
Degree of protection	IEC - IP 67 / JEM- IP67g
Ambient temperature range	Operating: -25 to 70°C/ Storage:-30 to 80°C (with no icing or condensation)
Ambient humidity range	Operating/storage: 35% to 95% (with no condensation)
Ambient illumination	Incandescent lamp : Max 5,000 lx
	Sunlight : Max 10,000 lx
Insulation resistance	20 MΩ (at DC 500 MEGA) between current-carrying parts and case
Shock resistance	Destruction: 500 m/s2 3 times each in X, Y, and Z directions
Vibration resistance	Destruction: 10 to 55 Hz, 1.5mm double amplitude for 2 hours each in X, Y, and Z directions
Dielectric strength	AC1000 V, 50/60 Hz for 1 min between current-carrying parts and case
Connection method/ Material	Pre-wired : 3C / 4.8 Ø * 2M PVC oil-resistant
	C Type - M12connector : PP
	P Type : PVC
Material	Case : PBT		sensing surface: acrylic			Screwdriver :Plastic
	Clamping nuts : ABS		L type bracket : Nickel-plated Iron

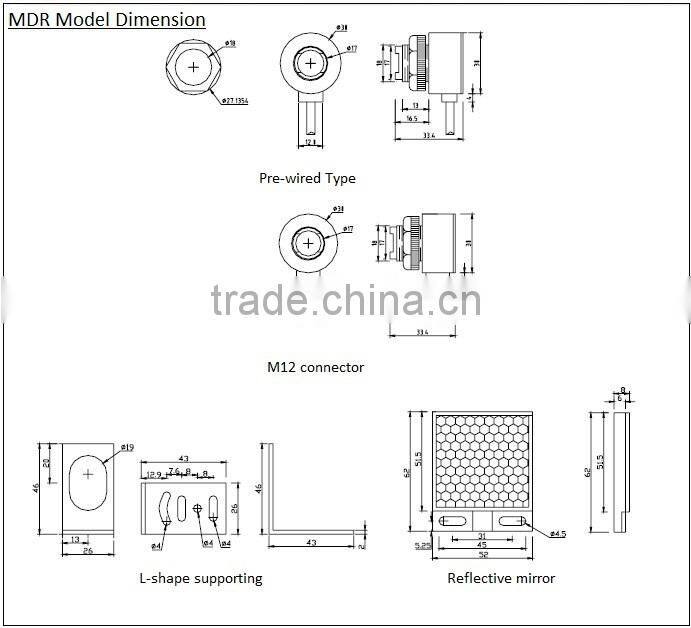

Dimensions
