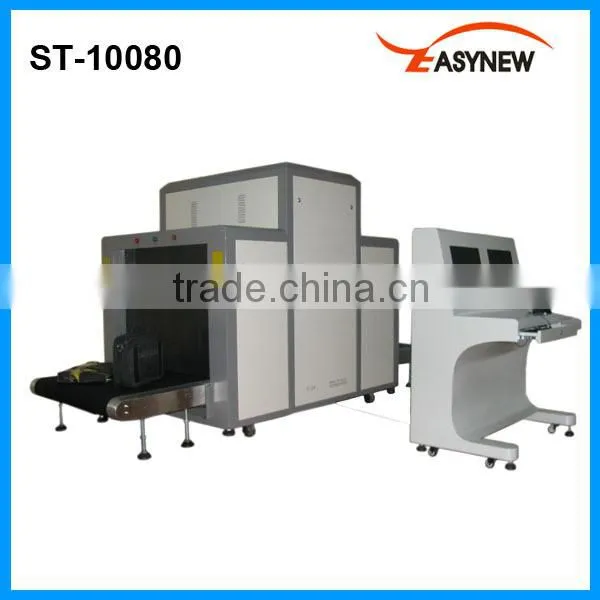

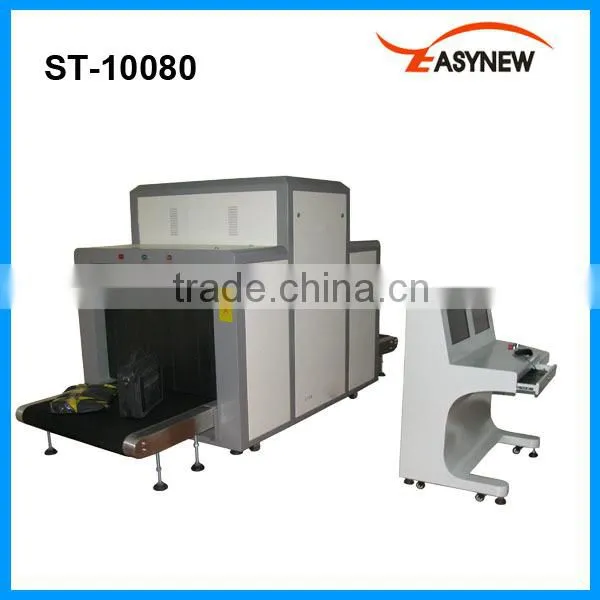

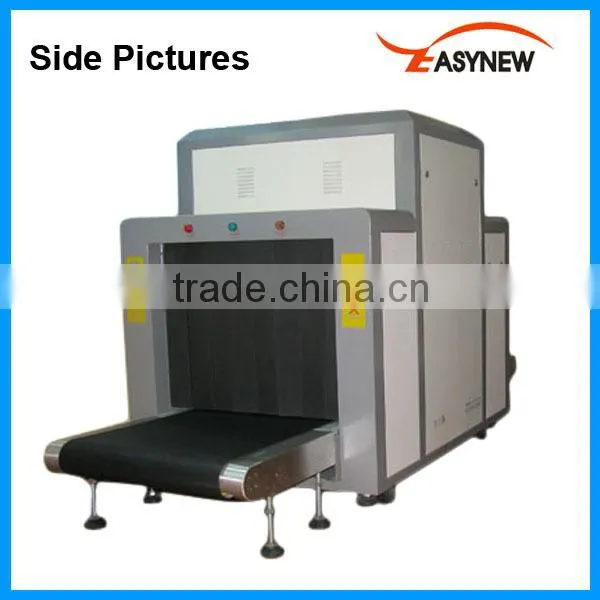

Help CenterST-10080 X Ray Luggage Scan Machine X-ray Baggage Scanner Quality Choice
Related Products
-
X-ray Machine ST-8065 Security Inspection EquipmentUS$ 19,355 - 19,500MOQ: 1 Set -
X-ray Luggage Scanner,security Inspection Equipment ST-8065US$ 18,760 - 20,000MOQ: 1 Set
-
X-ray Luggage Scanner ST-8065US$ 19,355 - 19,500MOQ: 1 Set
-
Stable Performance Airport Security Xray Baggage ScannerUS$ 15,485 - 15,500MOQ: 1 Set
-
Security Equipment ST-6550 X-ray Baggage ScannerUS$ 15,485 - 15,500MOQ: 1 Set
Specifications
International standard1) Conveyor Max Load: 230 kg
2) Steel Penetration:38MM armor plate
3) Conveyor Speed: 0.22m/s
1. Basic parameters
Conveyor Speed |
0.22m/s |
Conveyor Max Load |
230 kg |
Single inspection dosage |
< 1.5µGy |
Storage temperature range |
-20°C~60°C |
Operating temperature range |
0°C~45°C |
Humidity |
20%~95% (Not condensing) |
Wire Resolution |
0.101mm metal line |
Steel Penetration |
34MM armor plate |
X-ray tube voltage |
100~160 kV(adjustable) |
Current X-ray tube |
0.4~1.2mA(adjustable) |
Maximum leakage radiation |
<0.1µGY/H |
Monitor: |
Diagonal size - at least 19 inches, Resolution - 1920*1080 |

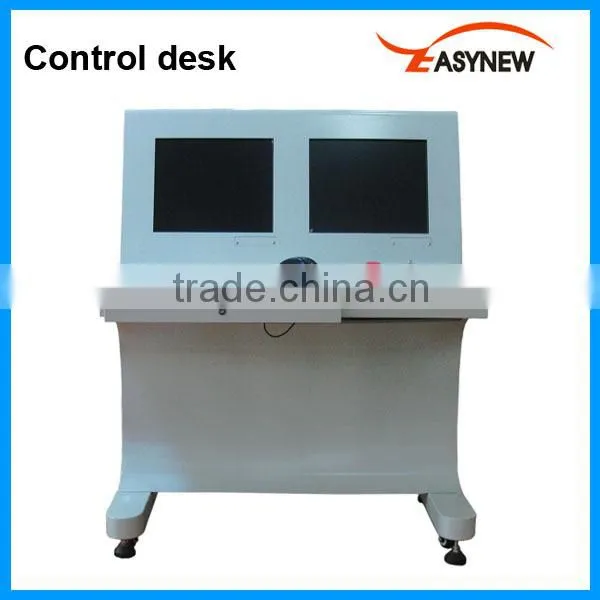

The management console |
At least 4 USB ports (for keyboard, external USB-drive, mouse), 5.5 m long cable line in a metal protective casing. |
Function of recording the image |
The image recording is automatically built-in hard drive with the ability to view and copy via USB-port on the console |
2.Feature:
1. Alarm by sounds & light:Alarm by sounds and light when conform to condition.
2. Network interface:Could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray:Transmit ray under automatic control, avoids the miss
4. Image monitoring for user-friendly:The monitor use 360° the fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.
5. Simple operation by mouse:Without keyboard and work table, control by mouse, save space.
6. Turn off by a key control:Turn off the machine only need one step:revolves the key. the equipment automatic security close-down, does not need complex many steps, is simpler.
7. Eagle-eye:Could be expediently observing enlargement area.
8. Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.
9. Energy saving and environmental protection: the machine can automatically sense objects, no objects no movement
3. Image performance system:
1.X-ray sensor:
L type photo-diode array detector, 12bit
2. Monitor:
High resolution at least 19 inch color LCD display
3. Color quality:
24 bit real colors
4. Edge enhancement:
Object contour edge is more distinct, image detail is more distinct
5. High penetrate /Low penetrate strength display:
Increase brightness of dark area in image to Display object which is behind high absorptive mass distinctly.
Increase contrast of low absorptive mass (easy to penetrate) to display it distinctly
6. Magnifier:
Function of partial enlargement
7. Brightening/dimming:
Increase brightness of image/decrease
8. Image recurrence:
Display previous twenty images and process any one of them
9. Image restoration:
Restore image to initial status at the time of stopping conveyor
10. Image storing:
Real time stores any image and processes it in operation status
11. Multi-energy function:
Display organic material for orange, display inorganic material for blue, and display mixture for green
12. High energy/low energy:
Switch to display two energy type, high energy stands for metal etc., low energy stands for nonmetallic
13. Auxiliay functions for drugs & explosives:
It helps to detect such dangerous material as drugs & explosives etc.
4. Our manufacturing workshop
5. CE certificate
