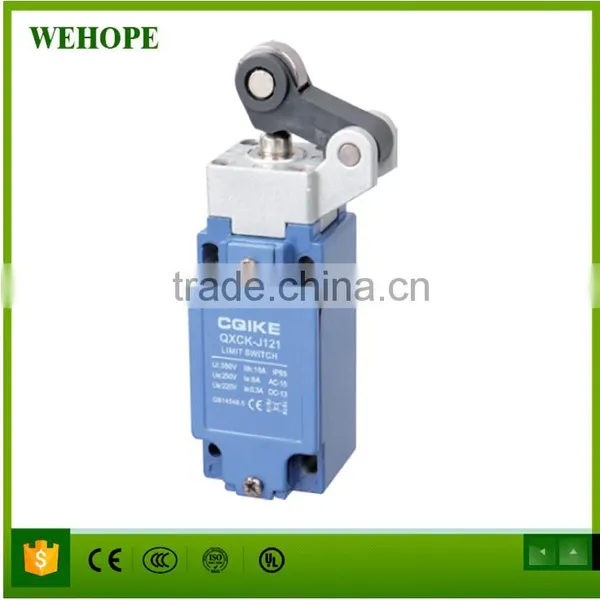

Thermoplastic Roller Tumbler Direct Acting Type QXCK-J Roller Shutter Limit Switch
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WEHOPE
Model Number:
QXCK-J
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Adjustable Length and Thermoplastic Roller Tumbler Type QXCK-J Roller Plunger Limit SwitchNegotiableMOQ: 100 Pieces -
According to CENELEC EN50041IP65 QXCK-J Double Insulation Limit SwitchNegotiableMOQ: 100 Pieces
-
Metal Thermoplastic Roller Tumbler Directacting Type QXCK-M Proximity Type Limit SwitchNegotiableMOQ: 100 Pieces
-
Electrical Blue Miniature Limit Switch QXCK-M Limit SwitchNegotiableMOQ: 100 Pieces
-
IP65 QXCK-T Rotary Adjustable Limit SwitchNegotiableMOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
WEHOPE
Model Number
QXCK-J
Protection Level
IP65
Operating Temperature
-25℃~+70℃ (with no icing)
Max. Current
6A
Max. Voltage
250V
Main technical parameters for thermoplastic roller tumbler direct acting type QXCK-J roller shutter limit switch
Characteristicw/Application
| Item | QXCK-J model double insulation, according to CENELEC EN50041 | ||||||
| 2-pole conact terminal Quick |
Metal head direcacting type |
Metal stellroller directacting type |
Metal thermoplastic roller tumbler directacting type |
Adjustable length and thermoplastic roller tumbler type |
Metal thermoplastic cylindrical tumbler type Diameter=6mm length=200mm |
Thermoplastic roller tumbler direct acting type, Single direction with horizontal movement |
Multidirection type |
| Machime life (million times) |
30 | 25 | 30 | 30 | 30 | 15 | 30 |
| Motion speed (m/s) |
0.5 | 1 | 1.5 | 1.5 | 1.5 | 1 | 1.5 |
| Protection degree |
IP65 | ||||||
| Rated work charcters |
ALTIPAK AC 15; A 300(UE=240V, LE=3A)ALTIVAR DC13;Q 300(UE=250V, LE=0.27A) | ||||||
| Boundary dimensions: width×depth×heigh |
41×41×77 | ||||||
| Complete switch (2 poles 1 -close +1-ope,quick) |
QXCK-J161 QXCK-J1161 |
QXCK-J167 | QXCK-J10511 QXCK-J10531 |
QXCK-J10541 QXCK-J139 |
QXCK-J10559 | QXCK-J121 | QXCK-J108 |

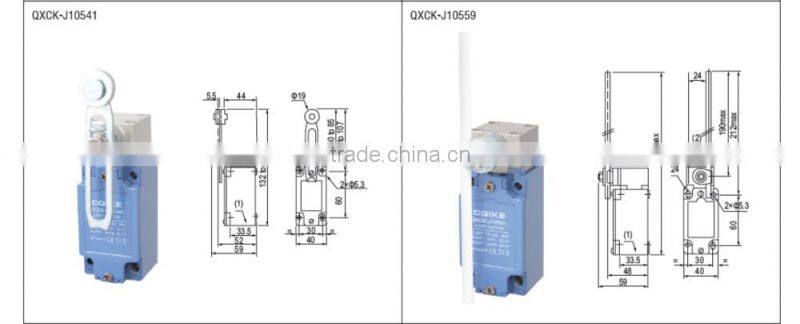

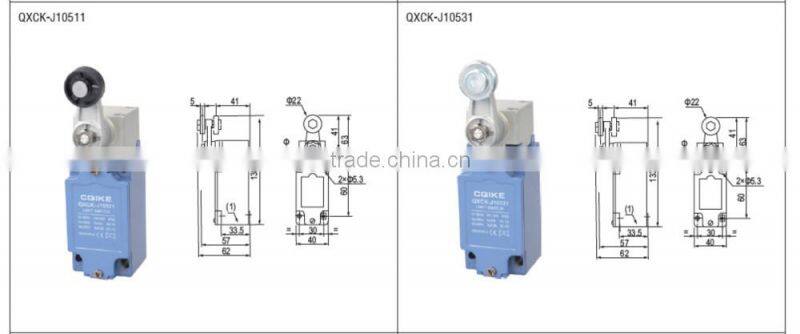

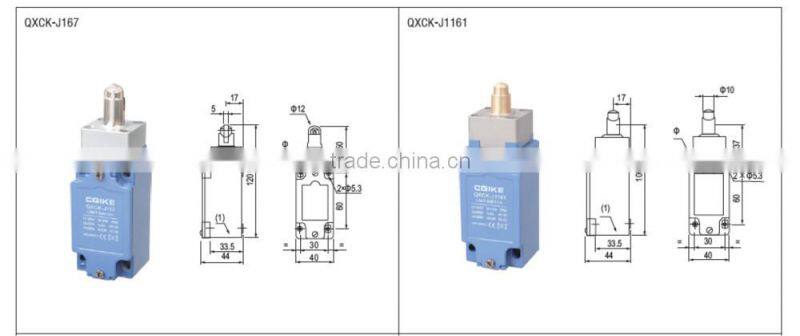

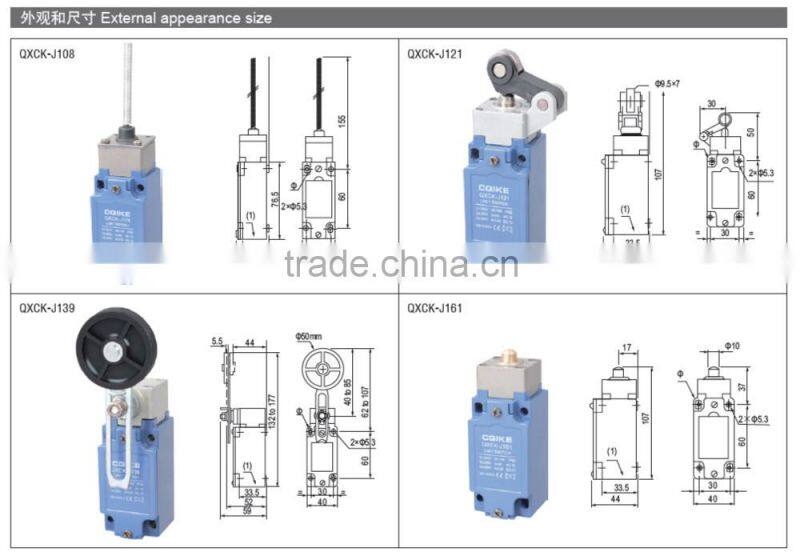

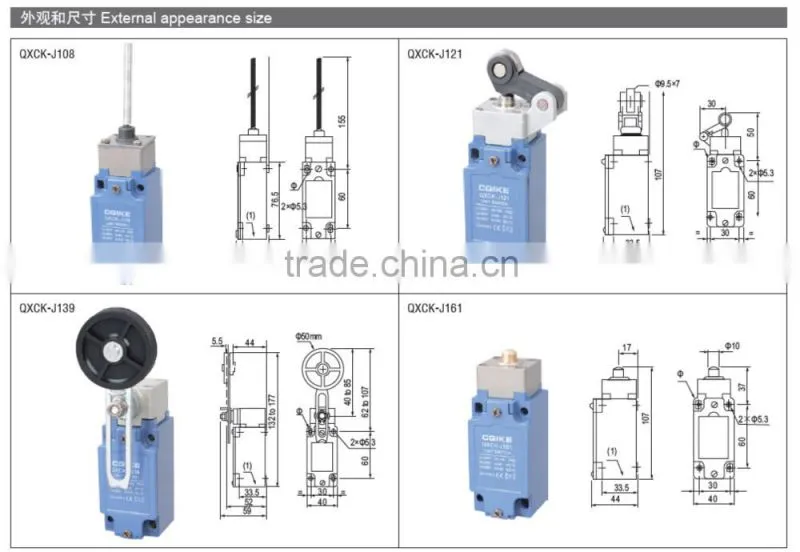

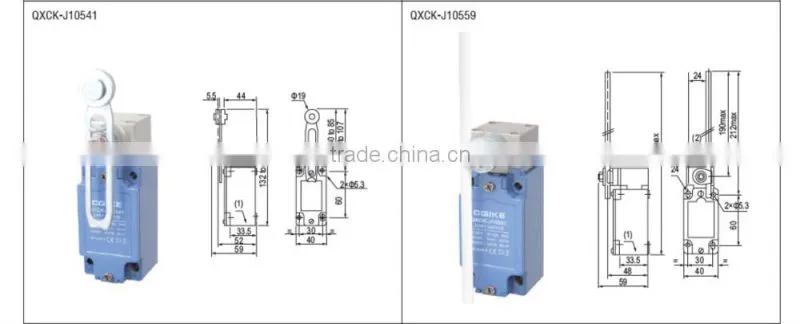

The detail of thermoplastic roller tumbler direct acting type QXCK-J roller shutter limit switch
