Home > Electrical & Electronics > Switch > Limit Switch > Microswitch Factory China Electrical Switch QZ Micro Push Button Switch
Microswitch Factory China Electrical Switch QZ Micro Push Button Switch
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WEHOPE
Model Number:
QZ
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QZ Magnetic Micro Switch China ManufacturerNegotiableMOQ: 100 Pieces -
40t85 Micro Switch,appliance Manufacture ChinaNegotiableMOQ: 100 Pieces
-
QV-16 Smd Push Button Micro SwitchNegotiableMOQ: 100 Pieces
-
QV-16 Micro Switch 220v, Mini Micro Switch, Micro Limit SwitchNegotiableMOQ: 100 Pieces
-
Good Heat Resistance QV-16 Kw4a(s) 10t85 Micro SwitchNegotiableMOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
WEHOPE
Model Number
QZ
Protection Level
IP54
Operating Temperature
-25℃~+80℃ (with no icing)
Max. Current
5A
Max. Voltage
250V

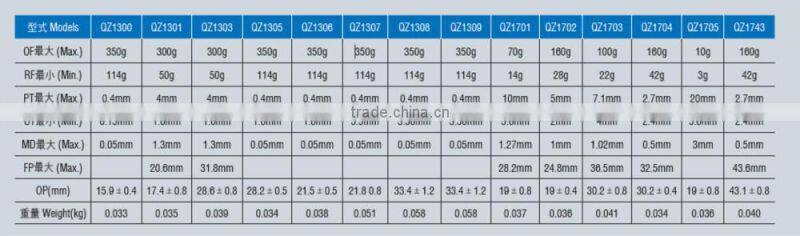

Main technical parameters for QZ micro push button switch
Characteristics Of Contact Module
| Rated operating characteristics | Inductive load: ~AC15,B300 (Ue=240V, Ie=1.5A) --DC-13,R300 (Ue=250V,Ie=0.1A) Resistive load:250V, 5A |
| Rated insulation voltage | Ui=500V, class of pollution is 3, comply with IEC 60947-1 Ui=300V, comply with UL508, CSA C22-2n°14 |
| Insulation sistance | 100MΩ above (megohmmeter of 500VDC) |
| Operating equency | Mechanical: maximum 240 times/min.; electrical: maximum 20 times/min. |
| Electrical life | 500,000 times |
| Contact resistance | Less than 15MΩ (initial value) |
Environmental Characteristics
| Normative reference | Product | IEC60947-5-1, EN60947-5-1, UL508, CSAC22-2N°14 |
| Components | IEC60204-1, EN60204-1 | |
| Ambient temperature | Operation | -25~+80℃ |
| Storage | -40~+80℃ | |
| Vibration resistance | Comply with IEC60068-2-6 |
10-55Hz complex amplitude 1.5mm, misoperationwithin 1ms (in state of FP,TTP) |
| Shock resistance | Maximum 300m/s2, misoperation within 1ms (in state of FP, TTP) |
|
| Mechanical life | 10,000,000 times | |
| Operation speed | Comply with IEC60068-2-27 |
0.01mm to 1m/sec (lock plug type) |

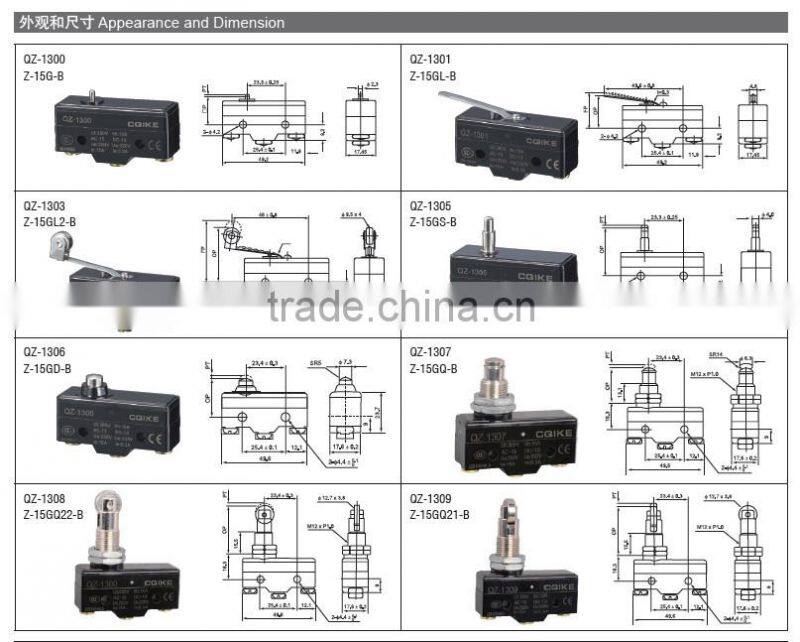

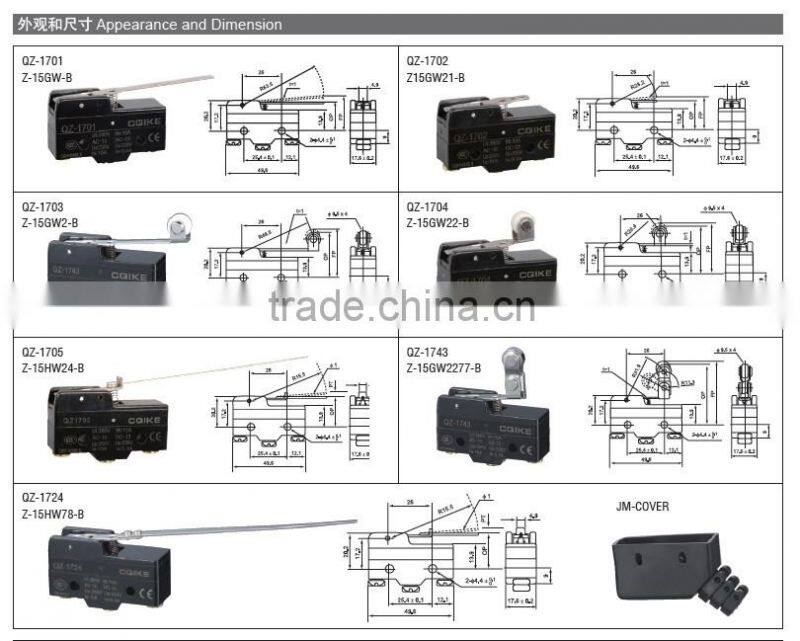

The detail of QZ micro push button switch
Product characteristic
1.High accuracy of action position;
2.Good shock resistance, maximum 1000m/s2;
3.Good heat resistance, maximum operating temperature is T105℃;
4.High-strength shell, when mounting, the plastic shell can withstand torsional moment of 6kgf.cm without break.
