High mechanical strength QZ-3 waterproof limit switch
Negotiable
/ Piece
100 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- NINGBO/SHANGHAI
- T/T Credit Card
You May Like
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | WEHOPE | Model Number: | QZ-3 |
Protection Level: | IP67 | Operating Temperature: | -10℃~+70℃ (with no icing) | Max. Current: | 5A |
Max. Voltage: | 250V |
Product Description
Main technical parameters for High mechanical strength QZ-3 waterproof limit switch
Models | QZ-3101 | QZ-3102 QZ-3103 QZ-3110 | QZ-3104 (3108) | QZ-3111 | QZ-3112 QZ-3113 | QZ-3169 (3166/ 3167) |
OF(Max.) | 1200gf(11.77N) | 1200gf(11.77N) | 580gf(5.69N) | 1800gf(17.65N) | 1800gf(17.65N) | 150gf(1.47N) |
RF(Min.) | 450gf(4.41N) | 450gf(4.41N) | 150gf(1.47N) | 450gf(4.41N) | 450gf(4.41N) | - |
PT(Max.) | 1.8mm | 1.8mm | 25 | 1.8mm | 1.8mm | 15° |
OT(Min.) | 3mm | 3mm | 40.000 | 3mm | 3mm | - |
MD(Max.) | 0.2mm | 0.2mm | 3 | 0.2mm | 0.2mm | - |
OP | 15.7±1mm | 28.5±1mm | - | 24.9±1mm | 34.3±1mm | - |
Ratings
Rated voltage | Noninductive Load (A) | Inductive Load (A) | ||||||
Resistance Load | Lamp Load | Inductive Load | Motor Load | |||||
NC | NO | NC | NO | NC | NO | NC | NO | |
125 VAC 250 VAC | 5 (0.1) | 1.5 | 0.7 | 3 | 2.5 | 1.3 | ||
3 | 1 | 0.5 | 2 | 1.5 | 0.8 | |||
8 VDC 14 VDC 30 VDC 125 VDC 250 VDC | 5 (0.1) | 2 | 5 | 3 | ||||
5 (0.1) | 2 | 4 | 3 | |||||
4 (0.1) | 2 | 3 | 3 | |||||
0.4 | 0.05 | 0.4 | 0.05 | |||||
0.2 | 0.03 | 0.2 | 0.03 | |||||
Note: Product with spring, its usable range of operating part is within one third of the whole spring length from the front end of spring. |
Characteristic/Application
Rating | 5A 125V,3A 250VAC |
Operating speed | 1mm~1m/s |
Operating frequency | Mechanical:120 operations/min. Electrical:30 operations/min. |
Contact resistance | 15mΩ max.(initial) |
Inslation resistance | 100mΩ min.(at 500VDC) |
Dielectric strength | 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
1500VAC, 50/60 Hz for 1 minute between each terminal and ground | |
Vibration Frequency | 10 to 55HZ,1.5mm double amplitude |
Shock | Mechanical:Approx.1000m/s2 (Appprox.100G'S) Electrical:Approx.500m/s2 (Approx.50G'S) |
Ambienttemperature | ’-10℃~+70 ℃(With no icing) |
Humidity | < 95% RH |
Life | Mechanical: 10,000,000 operations/min. Electrical: 200,000 operations/min. |
Weight | Approx.360g(cable length 3m) Approx.540g(cable length 5m) |
Degree of protection | IP67 |

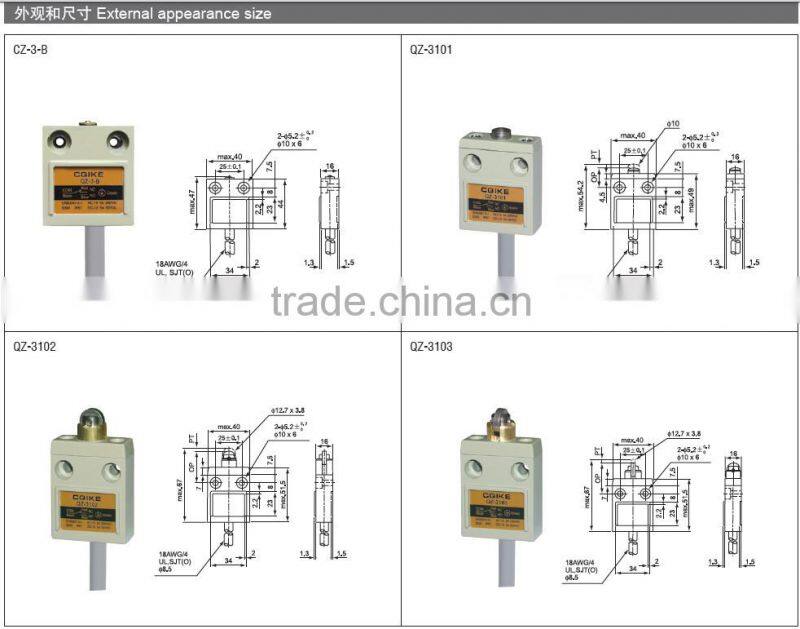

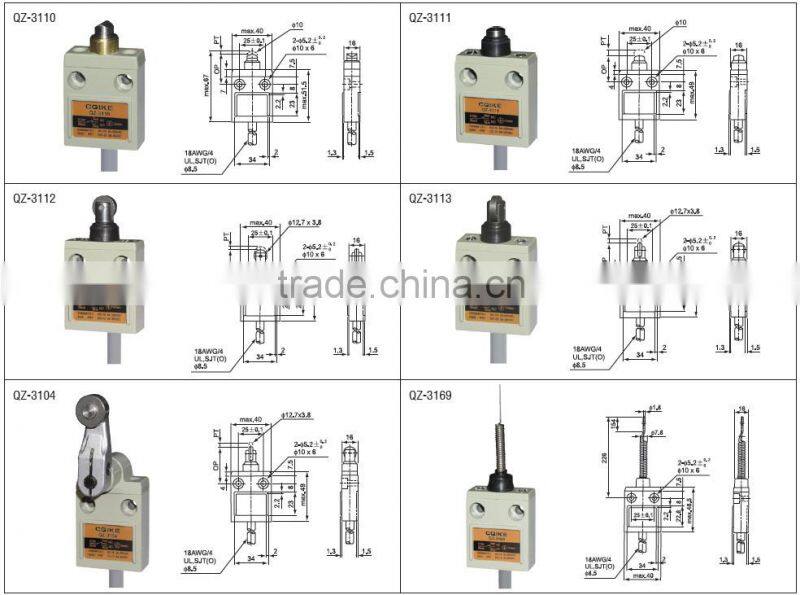

The detail of High mechanical strength QZ-3 waterproof limit switch
Product introduction
1.DPDS limit switch for multiple applications
2.Rugged aluminum alloy diecast housing
3.High mechanical strength
4.Oil resistance,waterproof and dustproof structure
