Specifications
Specificationsfemale wire terminal
1.Material:purple Copper (various colors)
2.CE Rohs certificate
3.Factory directly
Main technical parameters for female wire terminal, spade terminal connectors
| Part No | Color | Wire Range | Tab Size | B | σφ | Dφ | L | H | |
| mm² | AWG | mm | |||||||
| FDD 1.25-110(5) | Red | 0.5-1.5 | 22-16 | 0.5×2.8 | 3.8 | 1.7 | 3.8 | 19.0 | 10.0 |
| FDD 1.25-110(8) | 0.8×2.8 | 3.8 | 1.7 | 3.8 | 19.0 | ||||
| FDD 1.25-187(5) | 0.5×4.75 | 5.6 | 1.7 | 3.8 | 19.0 | ||||
| FDD 1.25-187(8) | 0.8×4.75 | 5.6 | 1.7 | 3.8 | 19.0 | ||||
| FDD 1.25-205 | 0.5×5.2 | 6.5 | 1.7 | 3.8 | 20.0 | ||||
| FDD 1.25-250 | 0.8×6.35 | 7.4 | 1.7 | 3.8 | 21.0 | ||||
| FDD 2-110(5) | Blue | 1.5-2.5 | 16-14 | 0.5×2.8 | 3.8 | 2.3 | 4.3 | 19.0 | |
| FDD 2-110(8) | 0.8×2.8 | 3.8 | 2.3 | 4.3 | 19.0 | ||||
| FDD 2-187(5) | 0.5×4.75 | 5.6 | 2.3 | 4.3 | 19.0 | ||||
| FDD 2-187(8) | 0.8×4.75 | 5.6 | 2.3 | 4.3 | 19.0 | ||||
| FDD 2-205 | 0.5×5.2 | 6.5 | 2.3 | 4.3 | 20.0 | ||||
| FDD 2-250 | 0.8×6.35 | 7.4 | 2.3 | 4.3 | 21.0 | ||||
| FDD 2-312 | 0.8×8.0 | 9.0 | 2.3 | 4.3 | 23.0 | ||||
| FDD 5.5-187 | yellow | 4-6 | 12-10 | 0.5×4.75 | 5.6 | 3.4 | 5.7 | 23.0 | 14.0 |
| FDD 5.5-250 | 0.8×6.35 | 7.4 | 3.4 | 5.7 | 25.0 | ||||
| FDD 5.5-312 | 0.8×8.0 | 9.0 | 3.4 | 5.7 | 27.0 | ||||
| FDD 5.5-375 | 1.2×9.4 | 10.9 | 3.4 | 5.7 | 29.6 | ||||

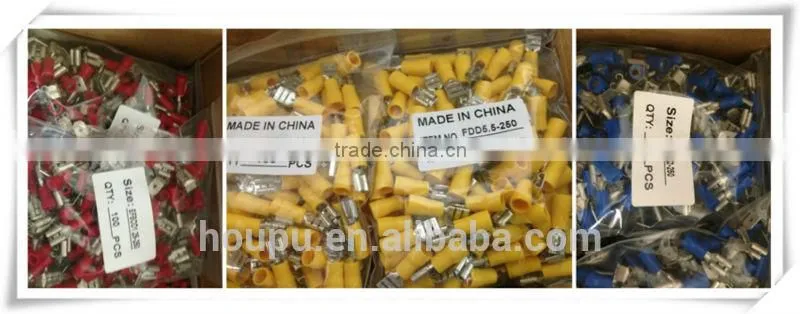

The detail of female wire terminal, spade terminal connectors
Product's advantage
1.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
2.The fast and flexible production form aim at the customer require;
3.The deliveries exactly in accordance with customer orders
4.The fast transportation.
Who choose us
United states, European,Mexico,Dominican Republic,New Zealand,Chile etc.
Packaging:
The packaging of the spade terminal connectors is 100pcs/bag or as per customer's requirement
Shipping:
normally ocean shipping
The delivery date of the spade terminal connectors is within 15-20 days after receiving payment.
Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM&ODM, any your customized breakers we can help you to design.
4.Distributorship are offered for your unique design and some our current models.
5.Protection of your sales area, ideas of design and all your private information.
FAQ
Q 1. what's the payment term?
A. We accept TT, 30% deposit and 70% balance agaisnt copy of BL, Western
Union ,L/C is ok!
Q 2. how's the delivery time ?
A. usually it will take about 15~20 days for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton.
Q 4.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q6. How about the transport?
A. If the number of goods is small we usually use TNT, TNT-DHL,EMS,DHL and some express you offered. If the number of the goods is big usually we use the FWD you offered. Either by sea or by air is OK.
Q7. What is the different between HOUPU and WEHOPE ?
A. HOUPU is my company name and the WEHOPE is brand name of our products.
spade terminal connectors spade terminal connectors spade terminal connectors spade terminal connectors spade terminal connectors spade terminal connectors spade terminal connectors spade terminal connectors spade terminal connectors spade terminal connectors spade terminal connectors spade terminal connectors spade terminal connectors spade terminal connectors
