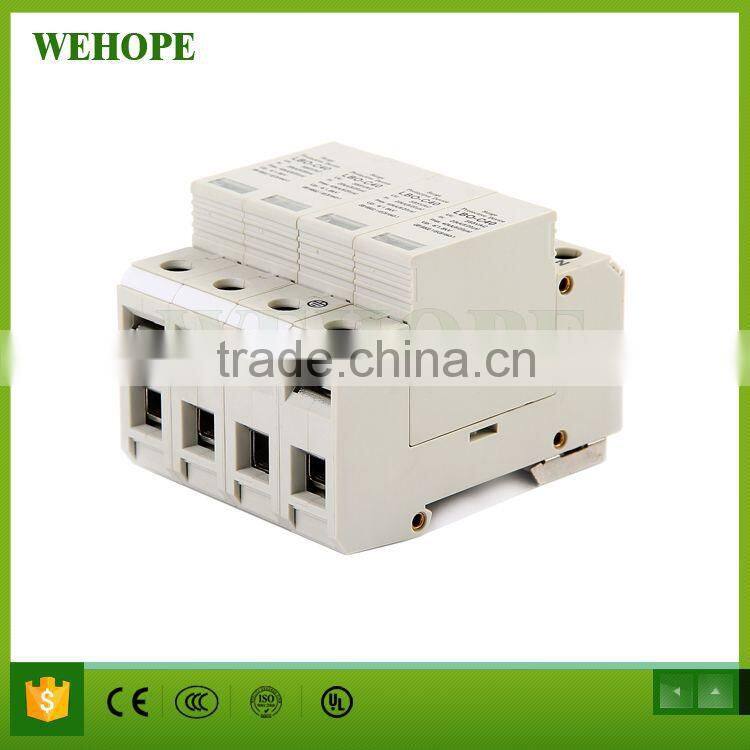

Best Price Din Rail Surge Protective Device
Feature:
1.Inside over-current and over-heat protection,temperature control open circuit.
2.Module design,convenient installation,could be replaced online.
3.Smallness leak current,response quickly,less residual oltage.
4.Signal indication device,green(normal),red(abnormal).
5.New technology,highly energy,clearance discharge pole(N-PE).
Specification:
| Technical Parameters | LBO-C | N-PE | ||||||||||||
| Rated Operating Voltage Uc(V~) | 110V | 220V | 380V | 220V | 380V | 220V | 380V | |||||||
| Maximum Continuous Operating Voltage Uc(V~) | 140V | 275V | 320V | 385V | 420V | 440V | 275V | 320V | 385V | 420V | 440V | 255V | ||
| Voltage Protection Level Up (V~)kV | ≤0.8 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤2.2 | ≤1.0 | ≤1.4 | ≤1.5 | ≤1.8 | ≤2.0 | ≤1.0 | ≤1.8 | |
| Normal Discharge Current In(8/20μs)kA | 20 | 15 | 20 | 40 | 60 | |||||||||
| Maximum Discharge Current Imax(8/20μs) kA | 40 | 30 | ||||||||||||
| Response Time ns | <25ns | |||||||||||||
| Test Standard | GB18802/IEC61643-1 | |||||||||||||
| The Cross Section of L/N Line(mm²) | 10/16 | 10 | ||||||||||||
| The Cross Section of PE Line (mm²) | 10/25 | 16 | ||||||||||||
| Fuse or Switch(A) | 32A | 25A/32A | ||||||||||||
| Operating Environment°C | -40°C~+85°C | |||||||||||||
| Relative Humidity(25°C) | ≤95% | |||||||||||||
| Installation | Standard Rail 35mm | |||||||||||||
| Material of Outer Covering | Fiber glass reinforced plastic | |||||||||||||
Our Advantage:
1.Our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
2.The fast and flexible production form aim at the customer require;
3.The deliveries exactly in accordance with customer orders
4.The fast transportation.
Our Service:
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM&ODM, any your customized products we can help you to design.
4.Distributorship are offered for your unique design and some our current models.
5.Protection of your sales area, ideas of design and all your private information.
We Provide You With Sincerely Service, if you interest, please contact us NOW!!!
