Specifications
surge protector 802.3af1.Modular surge arrester
2.20-40KA thunder arrester
3.easy install
4.Response time:<25(ns)
| Technical Parameters | LBO-C | N-PE | ||||||||||||
| Rated Operating Voltage Uc(V~) | 110V | 220V | 380V | 220V | 380V | 220V | 380V | |||||||
| Maximum Continuous Operating Voltage Uc(V~) | 140V | 275V | 320V | 385V | 420V | 440V | 275V | 320V | 385V | 420V | 440V | 255V | ||
| Voltage Protection Level Up (V~)kV | ≤0.8 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤2.2 | ≤1.0 | ≤1.4 | ≤1.5 | ≤1.8 | ≤2.0 | ≤1.0 | ≤1.8 | |
| Normal Discharge Current In(8/20μs)kA | 20 | 15 | 20 | 40 | 60 | |||||||||
| Maximum Discharge Current Imax(8/20μs) kA | 40 | 30 | ||||||||||||
| Response Time ns | <25ns | |||||||||||||
| Test Standard | GB18802/IEC61643-1 | |||||||||||||
| The Cross Section of L/N Line(mm²) | 10/16 | 10 | ||||||||||||
| The Cross Section of PE Line (mm²) | 10/25 | 16 | ||||||||||||
| Fuse or Switch(A) | 32A | 25A/32A | ||||||||||||
| Operating Environment℃ | -40℃~+85℃ | |||||||||||||
| Relative Humidity(25℃) | ≤95% | |||||||||||||
| Installation | Standard Rail 35mm | |||||||||||||
| Material of Outer Covering | Fiber glass reinforced plastic | |||||||||||||
Product Description

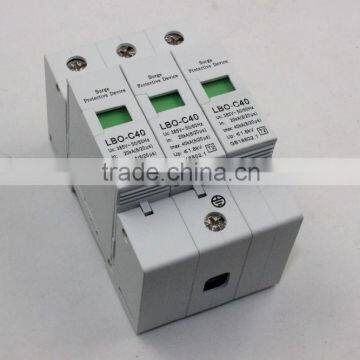

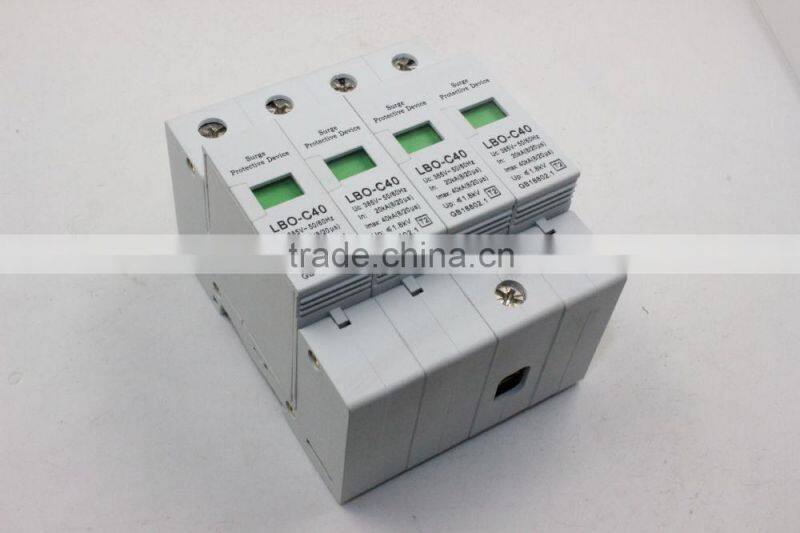

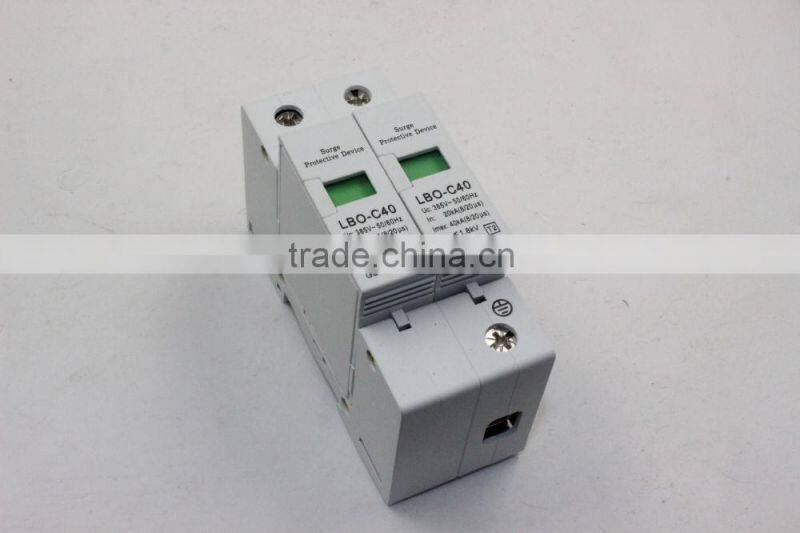

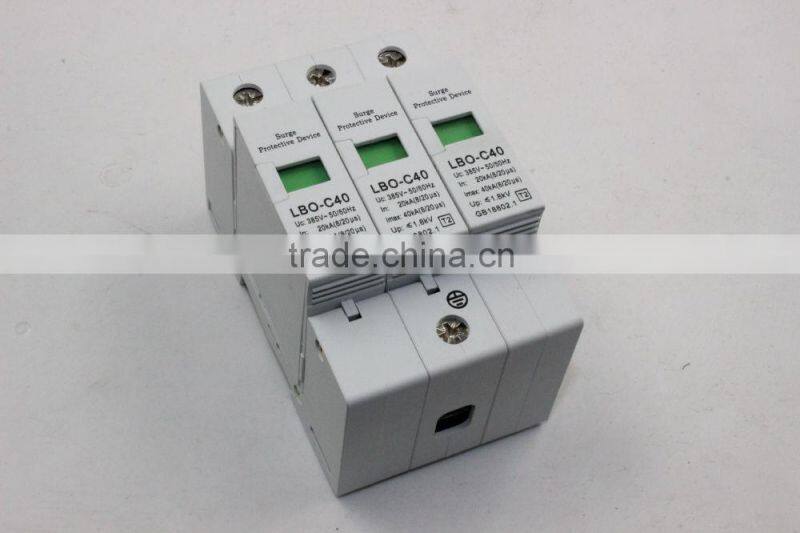

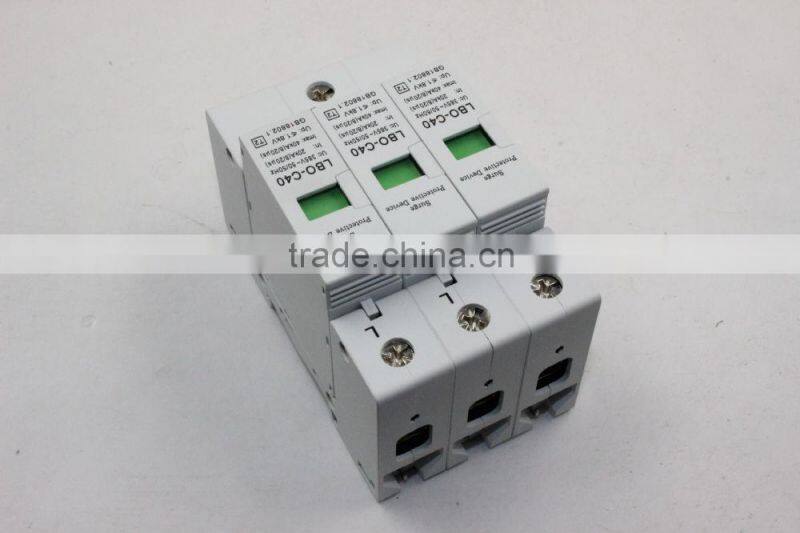

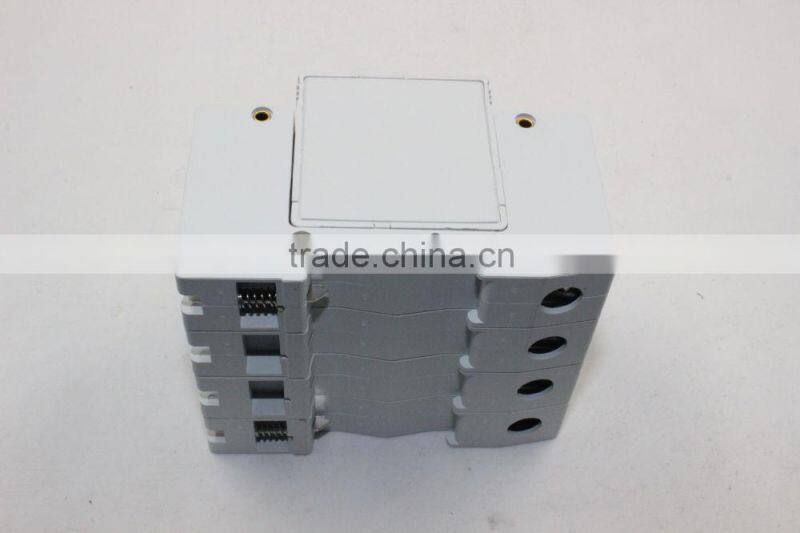

LBO-C series surge protective device(in short:SPD,alias:surge protector,surge arrester)is suitable for TN-S,TN-C-S,TT,IT etc.power supply system of AC 50/60Hz,≤380V,installed on the joint of LPZ1 or LPZ2 and LPZ3,it's designed according to IEC61643-1,GB18802.1,it adopts 35mm standard rail, there is a failure release mounted on the module of surge protective device.When the SPD fails in breakerdown for over-heat and over-current,the failure release will help electric device separate from the power system and give the indication signal,green means normal,red means abnormal,it's also could be replaced for the module when has operating voltage.
Product Features

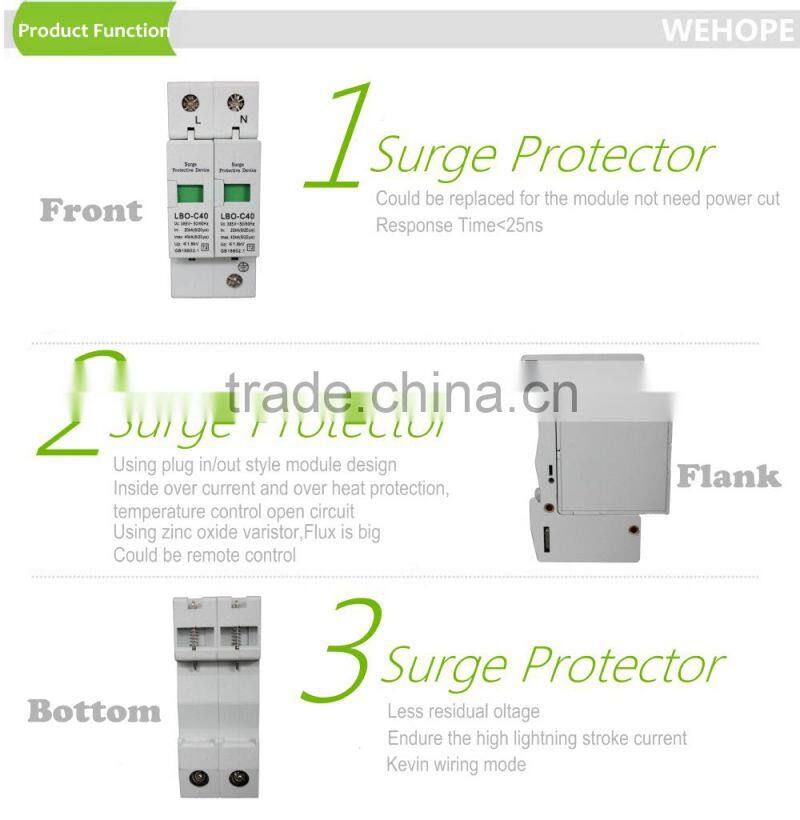

1.Inside over-current and over-heat protection,temperature control open circuit.
2.Module design,convenient installation,could be replaced online.
3.Smallness leak current,response quickly,less residual oltage.

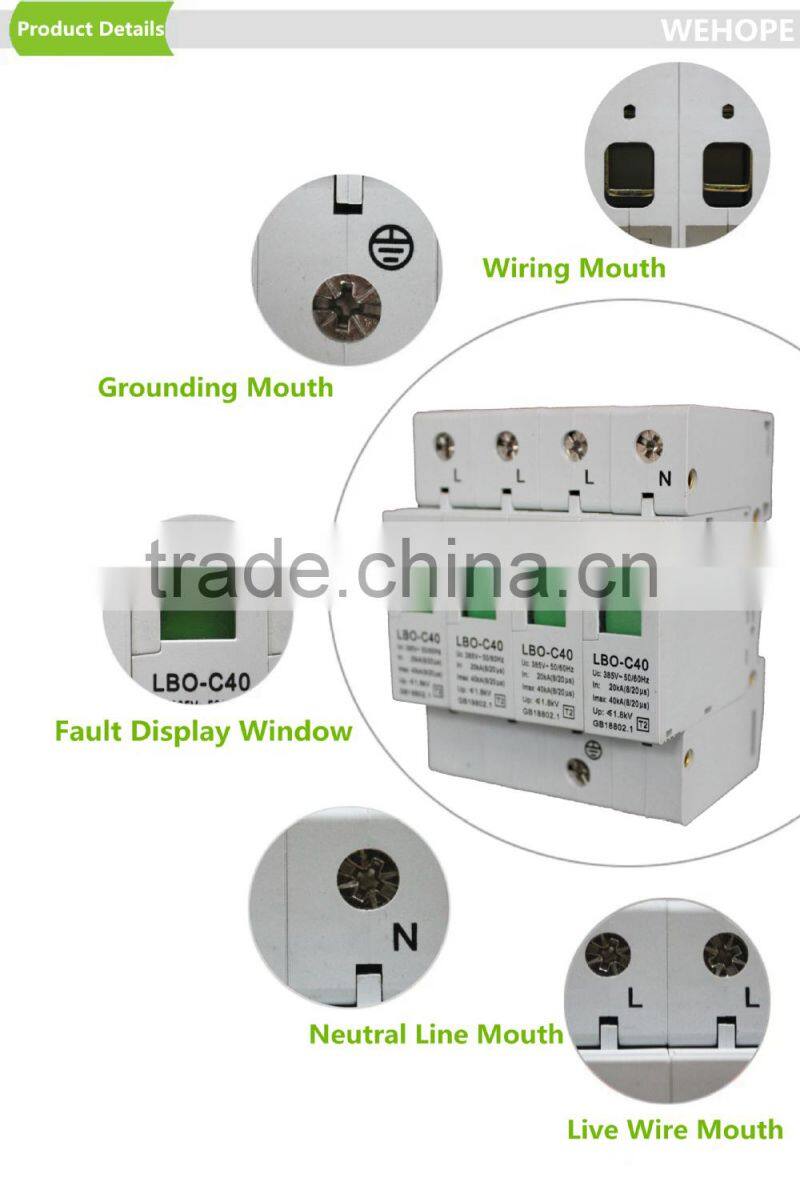

4.Signal indication device,green(normal),red(abnormal).
5.New technology,highly energy,clearance discharge pole(N-PE).
Application Scope and Installation Position
LBO-C series surge protective device applied in C grade lightning-proof,installed on the joint of LPZ1 or LPZ2 and LPZ3,usually installed in household distrbution boards,computer equipment,information equipment,electronic equipment and in the socket box in front of control equipment or near the control equipment.
Notice:When you order our goods,please write the model and quantity carefully.
For example:LBO-C40/4-385,8 pieces
Packaging:
The packing of surge protector 802.3af is Standard Export Carton or according to your requirements.
Shipping:
normally ocean shipping
The delivery date of surge protector 802.3af is within 20-30 days after receiving payment.
Our service
1.Your inquiry related to our products or prices will be replied in 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM&ODM, any your customized products we can help you to design.
4.Distributorship are offered for your unique design and some our current models.
5.Protection of your sales area, ideas of design and all your private information.
FAQ
Q 1. what's the payment term?
A. We accept TT, 30% deposit and 70% balance agaisnt copy of BL, Western
Union ,L/C is ok!
Q 2. how's the delivery time ?
A. usually it will take about 15~20 days for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton.
Q 4.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q6. How about the transport?
A. If the number of goods is small we usually use TNT, TNT-DHL,EMS,DHL and some express you offered. If the number of the goods is big usually we use the FWD you offered. Either by sea or by air is OK.
Q7. What is the different between HOUPU and WEHOPE ?
A. HOUPU is my company name and the WEHOPE is brand name of our products.
Expect long-term cooperation with you.
