Specifications
Residual Current Circuit Breaker1.High short-circuit capacity
2.Competitive price
3.OEM ODM service
4.High quality
Contact position indication.
Used as main switch in household and similar installation
Application
DNLE-32 one module earth leakage circuit breakers are mainly applied to the AC 50Hz/60Hz circuit rated 240V and 32A or below.They have the residual current leakage , overload, short-circuit and so on protection functions. The over voltage protection function can also be provided upon requirements. They are mainly used to protect the building illumination and power distribution system.
Construction features
·Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C.
·Altitude above sea level less than 2000 m.
·Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
·Installation class II or III.
·Pollution class 2.
·Installation method DIN Rail mounting type.
·The external magnetism shall not be more than 5 times of terrestrial one.
·Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.
Product's advantage
1.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
2.The fast and flexible production form aim at the customer require;
3.The deliveries exactly in accordance with customer orders
4.The fast transportation.
Notice
1. Leakage Protection function of RCBO is tested and adjusted by the manufacture, users can not open the products at random during usage.
2. After using RCBO for a certain time (normally one month), test button should be pressed once in a state of making the circuit to check whether the function of RCBO is normal and reliable (press test button once, the RCBO can break off once ). If abnormal, it should be unloaded and sent to the manufacturer for repair.
3. RCBO must not be wetted or soaked by rain, snow or water during the course of transportation, storage andusage.
Order note
1,following items should be marked when ordering
2,product Name,model&Frame level
3,pole
4,Tripping characteristic and rated current
5,quantity
6,Ordering sample

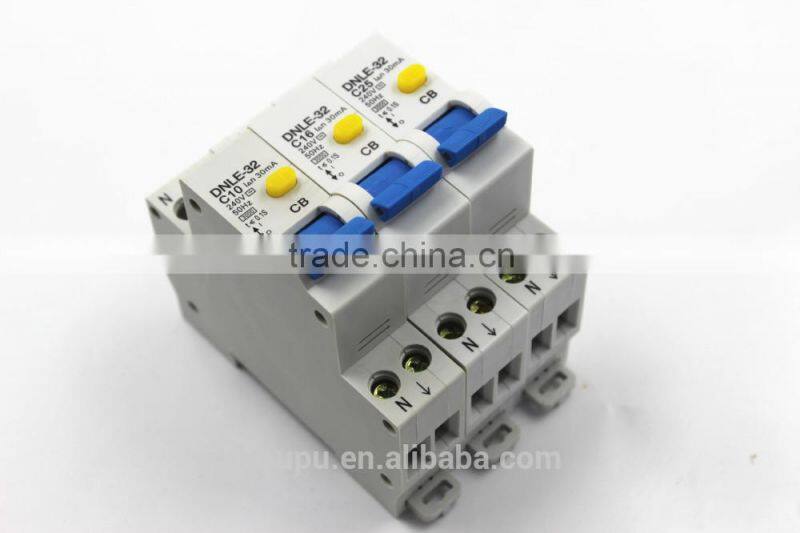

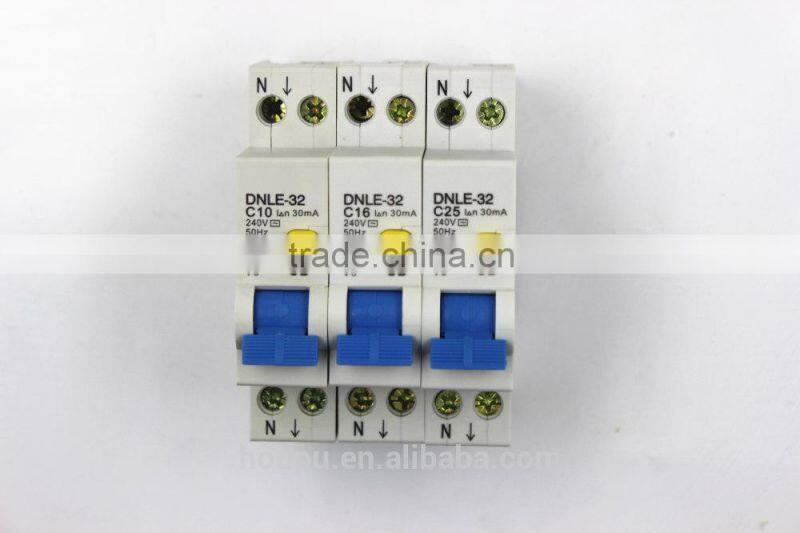

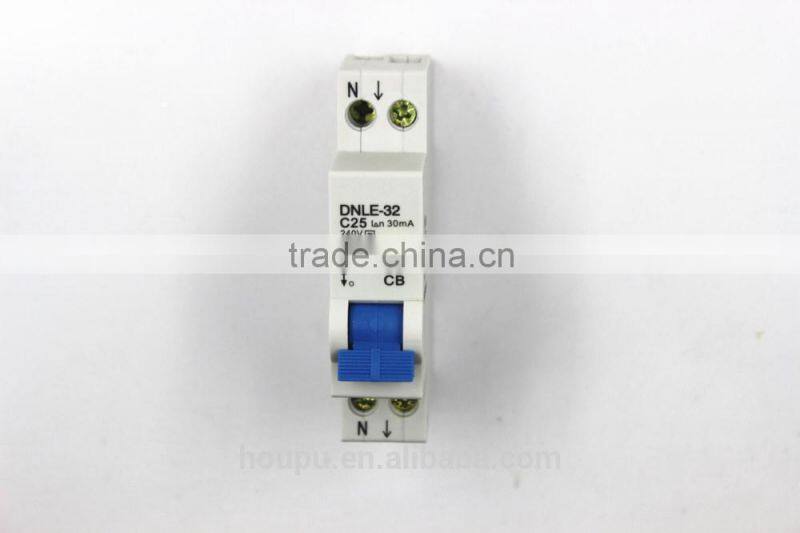

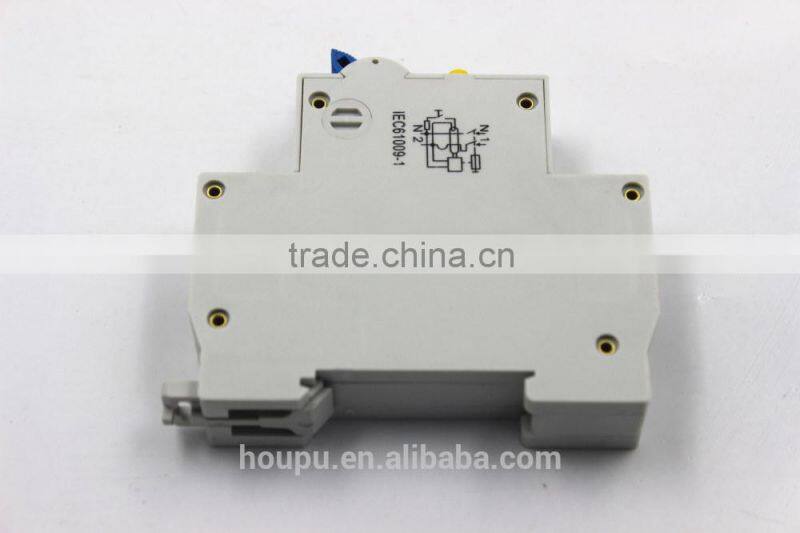

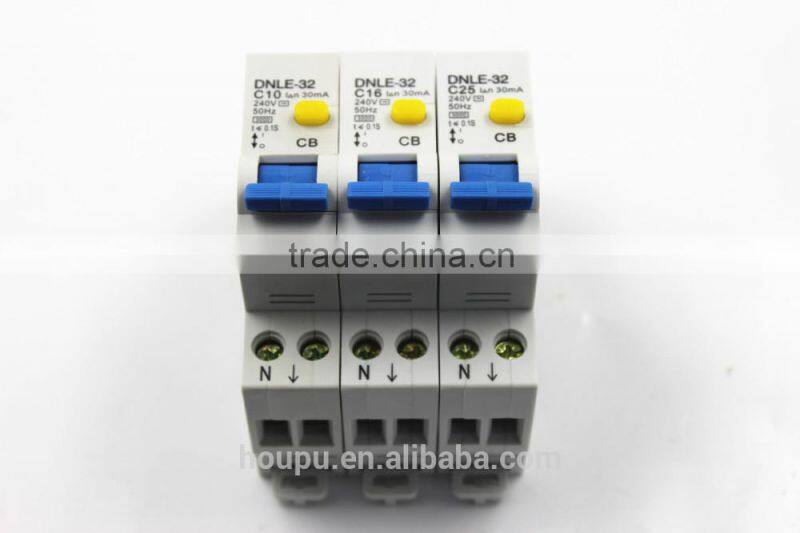

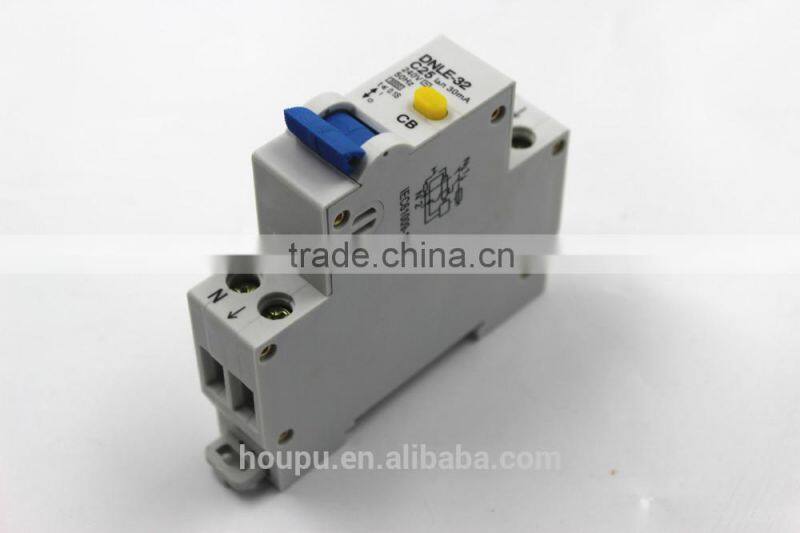

Products Pictures
Packaging:
The packaging of the Residual Current Circuit Breaker is standard export carton or according to your requirements.
Shipping:
normally ocean shipping
The delivery date of the Residual Current Circuit Breaker is within 20-30 days after receiving payment.
Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized products we can help you to design.
4.Distributorship are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
FAQ
Q 1. what's the payment term?
A. We accept TT, 30% deposit and 70% balance agaisnt copy of BL, Western
Union ,L/C is ok!
Q 2. how's the delivery time ?
A. usually it will take about 15~20 days for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton.
Q 4.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q6. How about the transport?
A. If the number of goods is small we usually use TNT, TNT-DHL,EMS,DHL and some express you offered. If the number of the goods is big usually we use the FWD you offered. Either by sea or by air is OK.
Q7. What is the different between HOUPU and WEHOPE ?
A. HOUPU is my company name and the WEHOPE is brand name of our products.
Expect long-term cooperation with you.
