Help CenterHigh Quality ZYI 2-125 Isolating Switch , Disconnector Isolator Switch
Related Products
-
High Quality ZYI 16-63 Isolating Switch , Disconnector Isolator SwitchUS$ 1 - 100MOQ: 100 Pieces -
ZYL2-63 RCCB/Residual Current Circuit BreakerUS$ 1 - 100MOQ: 100 Pieces
-
ZYL7-63 Residual Current Circuit Breaker/RCCBUS$ 1 - 100MOQ: 100 Pieces
-
Short Time Delivery ZYF7-63 Residual Current Circuit Breaker/RCCBUS$ 1 - 100MOQ: 100 Pieces
-
Short Time Delivery ZYL45-63 (DZ47 LE-63)Residual Current Circuit Breaker/RCCBUS$ 1 - 100MOQ: 100 Pieces
Specifications
1.Competitive price2.OEM /ODM
3.High quality
4.Attentive Service
5.Customization & Personalization
| MODEL | ZYI 2-125 Isolating Switch |

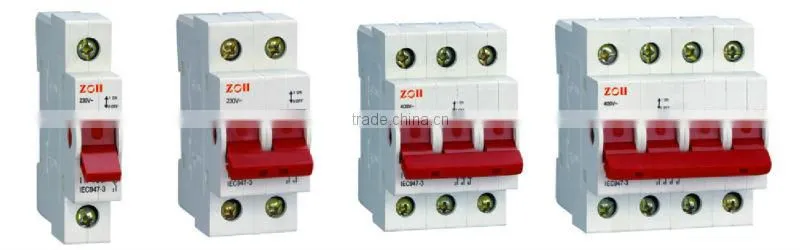

| Pole No. | 1,2,3,4 |
| Rated voltage | AC 230/400V |
| Rated current | 16, 25, 40, 63, 80, 100,125 (A) |
| Rated breaking capacity(Icn) | 3kA |
| Rated frequency | 50/60Hz |
| Rated impulse withstand current | 1.8kA within 1sec |
| Electro-mechanical endurance | 1000 CYCLES |
| Connection terminal | SCREW TERMINAL PILLAR TERMINAL WITH CLAMP |
| Connection capacity | RIGID CONDUCTOR UP TO 35MM² |
| Terminal connection height | 21mm |
| Installation | ON SYMMETRICAL DIN RAIL 35MM PANEL MOUNTING |
Structure and Usage
1.Capable of switch electric circuit with load
2.Provide function of isolation
3.Used as main switch for household and similar installation
Construction features
·Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C.
·Altitude above sea level less than 2000 m.
·Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
·Installation class II or III.
·Pollution class 2.
·Installation method DIN Rail mounting type.
·The external magnetism shall not be more than 5 times of terrestrial one.
·Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.
Product's advantage
1.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
2.The fast and flexible production form aim at the customer require;
3.The deliveries exactly in accordance with customer orders
4.The fast transportation.
Order note
1,following items should be marked when ordering
2,product Name,model&Frame level
3,pole
4,Tripping characteristic and rated current
5,quantity
6,Ordering sample

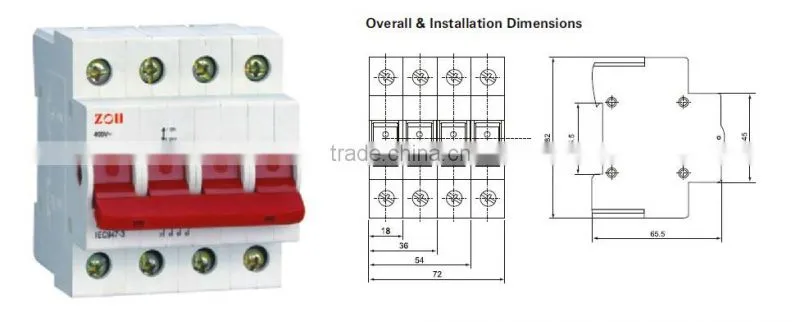

The detail of ZYI 2-125 Isolating Switch
Packaging:
The packaging of the mini circuit breaker is standard export carton or according to your requirements.
Shipping:
normally ocean shipping
The delivery date of the mini circuit breaker is within 20-30 days after receiving payment.
Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized breakers we can help you to design.
4.Distributorship are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
FAQ
Q 1. what's the payment term?
A. We accept TT, 30% deposit and 70% balance agaisnt copy of BL, Western
Union ,L/C is ok!
Q 2. how's the delivery time ?
A. usually it will take about 15~20 days for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton.
Q 4.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q6. How about the transport?
A. If the number of goods is small we usually use TNT, TNT-DHL,EMS,DHL and some express you offered. If the number of the goods is big usually we use the FWD you offered. Either by sea or by air is OK.
Q7. What is the different between HOUPU and WEHOPE ?
A. HOUPU is my company name and the WEHOPE is brand name of our products.
