New Products HP-M15-12 Electrical Cable Float Switch
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WEHOPE
Model Number:
HP-M15-12
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HP-M15-12 Float Level Switch Express WholesaleNegotiableMOQ: 1000 Pieces -
Express HP-M15-5 Mercury Float SwitchNegotiableMOQ: 500 Pieces
-
Wehope HP-M15-5 Float Switch Submersible PumpNegotiableMOQ: 500 Pieces
-
Top Selling Good Type New Design Float SwitchNegotiableMOQ: 1000 Pieces
-
Widely Use Display Float SwitchNegotiableMOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
WEHOPE
Model Number
HP-M15-12
Media Type
Liquid
Operating Temperature
0 degree to 80 degree
Flow Rate
≥100.000 times
Product Description
Main technical parameters for HP-M15-12 Electrical Cable Float Switch
| Float Regulator | Liquid Controller /float switch |
| Rated voltage | 250V(380V)/120V |
| Rated Frequency | 50Hz/60Hz |
| Rated current | 16A(8A)/10A(8A)/10A(4A) |
| Working temperature | 0 degee to 80 degree |
| Mechanical endurance | ≥100.000 times |
| Electric endurance | ≥ 50.000 times |
| Protection grade | IP68CS |
| Standard cable length | 2m 3m 5m 10m 20m as customs required |
| Switch currency | +++ ≥50 000switch workings tested by VDE specialisation |
| Protective connection | T 70U |
| Protection | waterproof |
| Working pressure | max.1bar |
| Circuit breaking capacity | Directly KW with 250V |
| Float | Polypropylene |
| Cable | polypropylene Jacket |
| Counter Weight | Polypropylene Sealed Housing |
| Cable Material | HO7RN- F3x0.75mm2 , PVC (3x0. 5mm2,3x0.75mm2, 3x1.0mm2) |

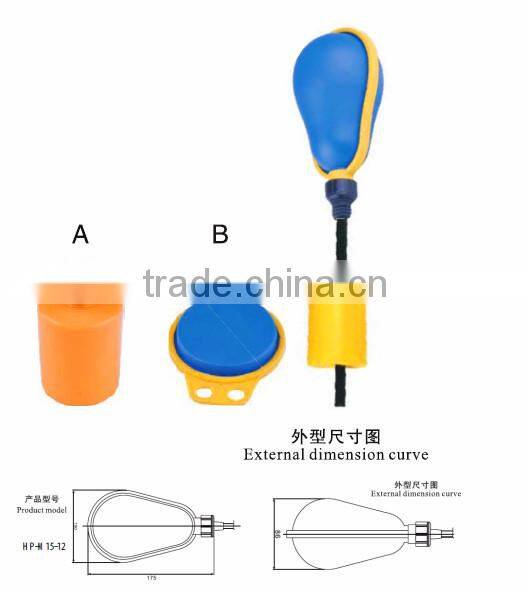

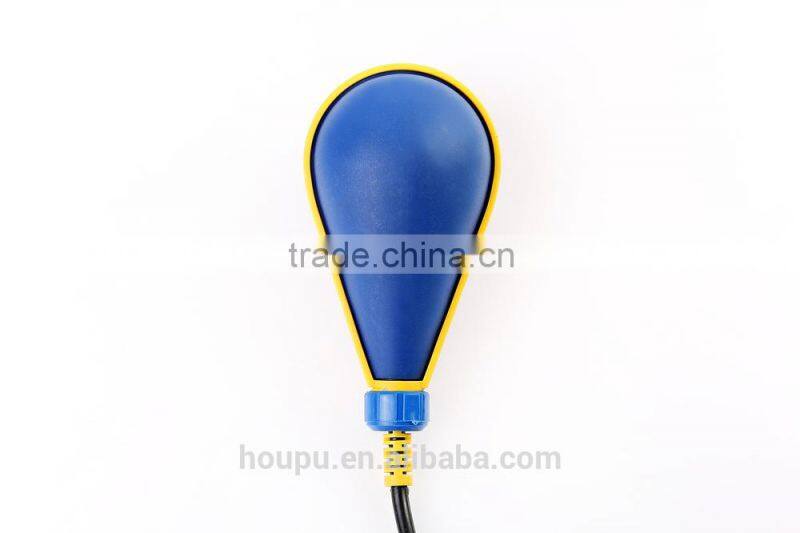

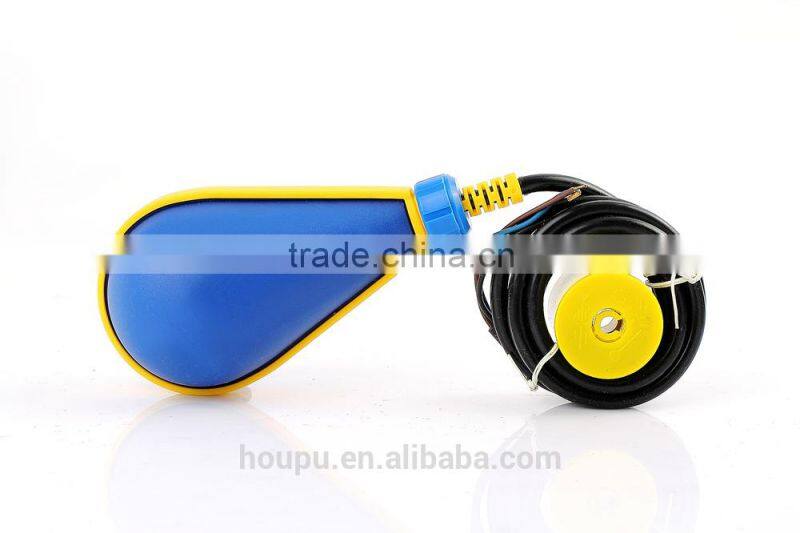

The detail of HP-M15-12 Electrical Cable Float Switch
Product's advantage
1.Our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
2.The fast and flexible production form aim at the customer require;
3.The deliveries exactly in accordance with customer orders
4.The fast transportation.
Who choose us
United states, European,Mexico,Dominican Republic,New Zealand,Chile etc.
