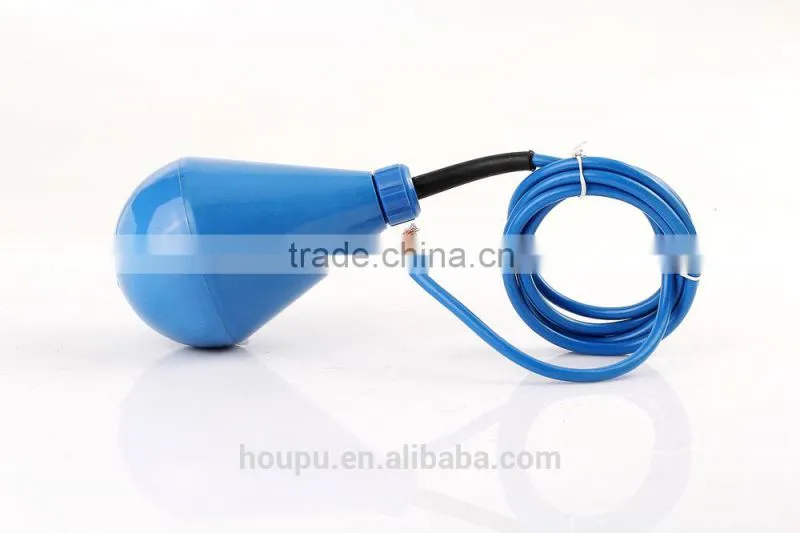

HP-M15-5 Float Level Switch,Liquid Level Controller/liquid Switch/float Switch

Product Description

     Main technical parameters for Liquid Level Controller/liquid Switch/float Switch,HP-M15-5 Float Level Switch





Float Regulator	Liquid Controller /float switch
Rated voltage	220V  AC
Rated Frequency	50Hz
Rated current	10A
Working temperature	0 degee to 80 degree
Mechanical endurance	≥100.000 times
Electric endurance	≥ 50.000 times
Protection grade	IP68CS
Power Consumption	<1.5 KW
Standard cable length	2m 3m 5m 10m 20m as customs required
Switch currency	+++ ≥50 000switch workings tested by VDE specialisation
Protective connection	T 70U
Protection	waterproof
Working pressure	max.1bar
Circuit breaking capacity	Directly KW with 250V
Float	Polypropylene
Cable	polypropylene Jacket
Counter Weight	Polypropylene Sealed Housing
Cable Material	HO7RN- F3x0.75mm2 , PVC (3x0. 5mm2,3x0.75mm2, 3x1.0mm2)







      product Characteristics:



1.Simple Construction, reliable performance:

  The product can output stable and reliable switch control signal of “making”, “breaking” without any fault action, so its reliability is very high and anti-interference is strong.



2.Sturdy and durable, need not maintain:

  The product can be sued for a long time after it being installed. Almost no maintenance and repairing problem would occur during its operation period.



3.Easy to install and convenient to adjust:

  The liquid level control scope can be adjusted at will with the locating piece moving up and down. Only one screw is needed to fasten the signal cable to finish installation.



4.Wide application range and strong generality:

  The product can be used to the level of sewage, acid-base solution of less than medium concentration, oils and situations requiring no pollution, diesel oil gasification kitchen range, as well as automatic fuel feeding.



      Product's advantage

1.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
2.The fast and flexible production form aim at the customer require;
3.The deliveries exactly in accordance with customer orders
4.The fast transportation.

      Who choose us

United states, European,Mexico,Dominican Republic,New Zealand,Chile etc.
