Specifications
circuit breaker accessories1.Quick response & intelligence function
2.Competitive price
3.OEM ODM service
Main technical parameters for DZ47-63GQ circuit breaker accessories
DZ47-63GQ over/under voltage release is a auxiliary functional element designed specially for
DZ47 (C65), DZ47 (C45) -63, DZ47-100 (NC) and TPN-32 (TPN) series circuit breaker by our company. In the circuit of electrical, home, construction and other circuits, it can choose different electrical accessories installed together with DZ47 (C45) -63, DZ47-100 (NC) and TPN-32 (TPN) series circuit breaker to protect the circuit breaker from under voltage, over voltage, over/under voltage tripping and many other problems.Name, usage and required standard of DZ47-63 and DZ47-100H series are shown in Table 1.
Table1
| Rated working voltage Uc | Wiring diagram of operating voltage |
| AC: Un=230V(over voltage ) | 270V±5% |
| AC230V(under ) AC380V(under) | (0.35~0.75) Ue (170V) (350V) |
| AC: Un=230V(over /under voltage | Over: 270V±5%V Under:170±7V |
Mounting method
All of electrical enclosures are hung over the side of circuit breaker.
Note: The number of enclosure split jointon the left side of circuit breaker can be more, but on the right side only can be one piece.
Environment and installation condition
Environmental temperature:-5°C~40°C;
Altitude:Not more than 2000m;
| Name of enclosure | Code | Usage | Required standard |
|
Under voltage release |
MN |
When power voltage goes down within (0.35~0.75)Ue, it can make the ciurcuit breaker trip, then realize the tripping protection in the circuit . |
IEC60947-2:1999 GB14048,2-2001 |
|
Over voltage release |
MV |
When power voltage goes up to 270V±5%, it can make the circuit breaker trip, then realize the tripping protection in the circuit |
IEC60947-2:1999 GB14048,2-2001 |
|
Over/Under voltage release |
MV+MN |
When the rated power voltage of 220V goes up to 270V±5% or goes down to 170±7V , it can make the ciurcuit breaker trip, then realize the tripping protection in the circuit |
IEC60947-2:1999 GB14048,2-2001 |

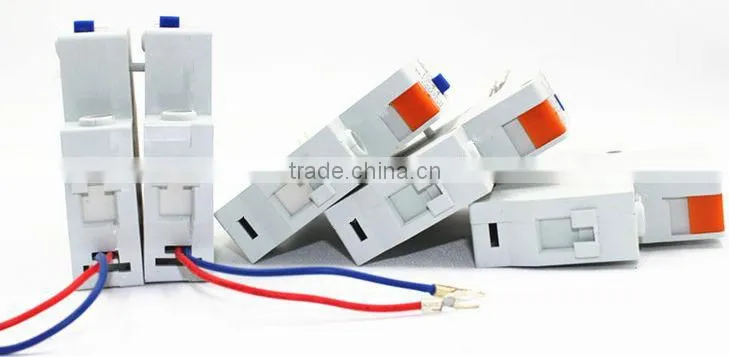

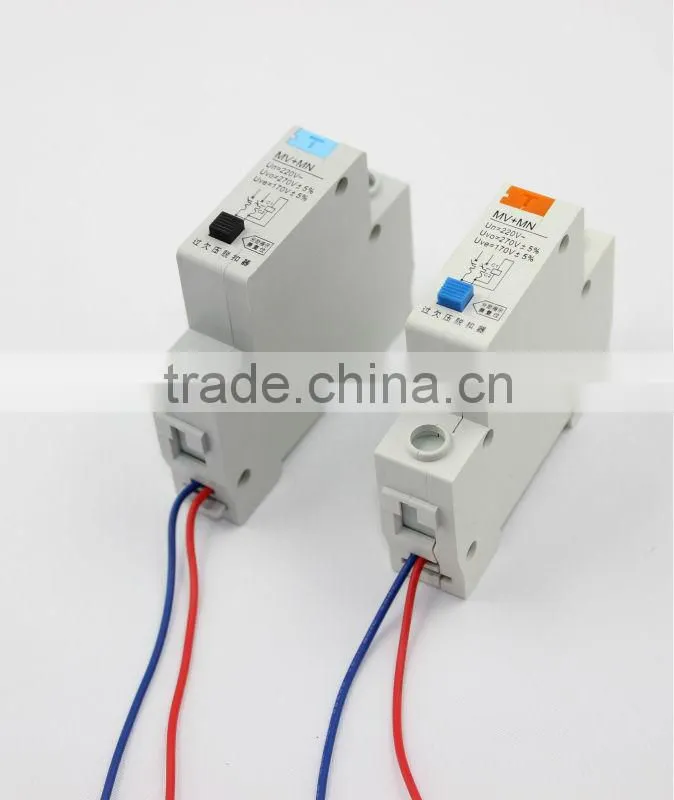

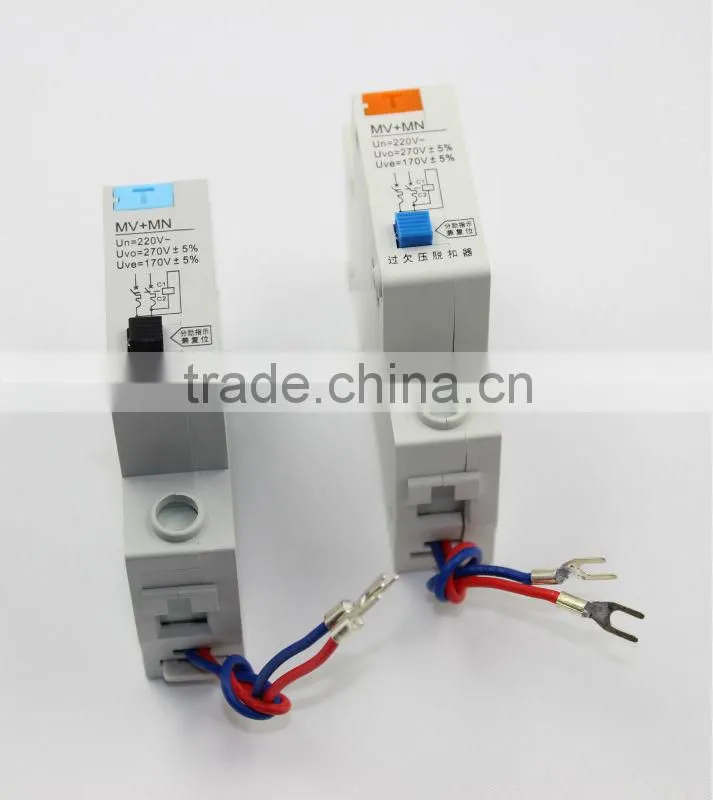

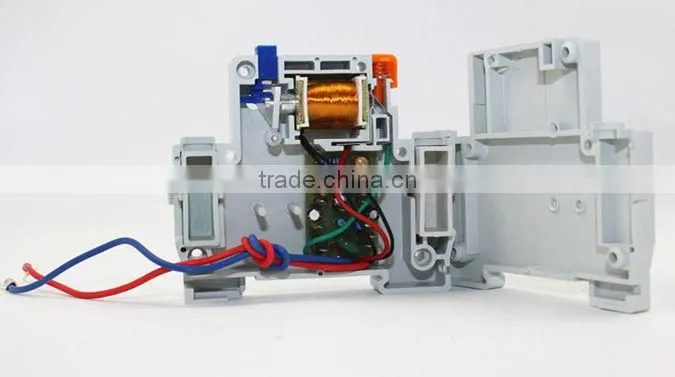

The detail of DZ47-63GQ circuit breaker accessories
