Specifications

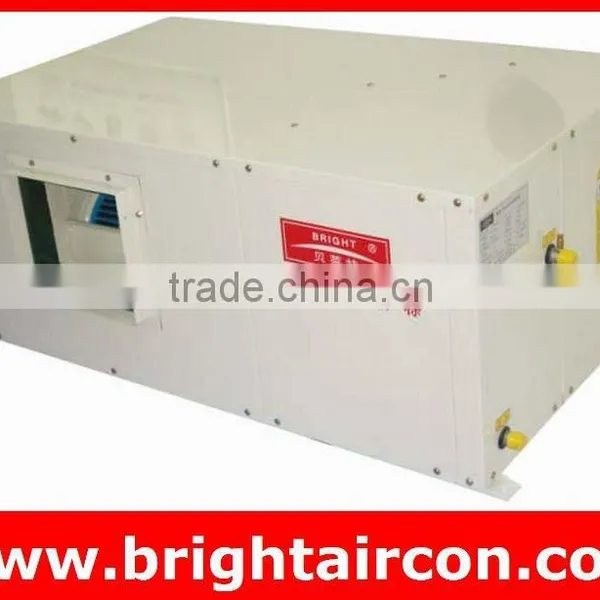

water to air water loop pump splitWLRF10AZDG - 150AZDG
Cooling capacity: 1.91 - 44 kW
Heating capacity: 2.08- 47kw
FEATURES
STRUCTURE
Panels and frame are made from galvanized steel protected
with polyester powder painting to ensure total resistance to
atmospheric agents.
HERMETIC COMPRESSORS
Single phase rotary type (mod.10÷35),3-phase
(mod.40÷150) scroll type compressors, with built-in thermal
overload cut-out and crankcase heater, mounted on rubber
vibration dampers.
Mod. 40÷60 are available with single phase compressors.
CENTRIFUGAL FAN
High efficiency, double inlet centrifugal fan Protection level
IP44. Low noise, low speed, big air flow and high ESP.
WATER SIDE HEAT EXCHANGER:
High efficiency coaxial heat exchanger, factory insulated
with flexible close cell material.
REFRIGERANT CIRCUIT
Copper tube connection with charge valves, filter, capillary
for mod. 10÷60(except Model 70 and above models, which
use expansion valve) ; high pressure switch and low
pressure switch.
The heat pump units are complete also with 4-way valve
and one way valve.
ELECTRIC PANEL
consists of:
Compressor contactor,
Compressor protection breaker,
Microprocessor with function display
OPTIONAL
Hot water coil
