Concealed Water chilled fan coil for duct installation
Model : |
FP3.4 ÷ 23.8 |
Cooling capacity |
1.8kw ÷ 12.6kw |
Heating Capacity |
2.7kw ÷ 18.9kw |
Automatic control |
Hight Quality three speed controller, working mode selection (OFF-Heating-Cooling), ventilation (HIGH-MED-LOW) and room temperature setting. |
Characters |
FEATURE: The FP series water chilled fan coil units are designed specially to meet the varied requirements of zone cooling or heating using chilled water or hot water. Fan coil can be applied to two pipe 3 rows or 4 rows systems to satisfy the requirements of a wide variety of air conditioning or heating application. The FP series is available in concealed versions for ceiling installation. This unit is presented as a single block including: fan deck, cooling or cooling coil, removable filter, drip tray, electrical connection box. FRAME AND STRUCTURE Panels and frame are made of galvanized steel, properly punched and punched for fixing both accessories and the unit itself HEATING COIL The coils are made of seamless tubes expanded into aluminum fins in continuous block. The connections have brass headers with female fittings and provided with easily accessible vent and drainage valve. FAN DECK The fan decks are composed of double suction centrifugal fans with aluminum impellers and 3-speed fan motors. Each fan motor assembly is dynamically balanced. DRIP TRAY The drip trays are made from sheet metal treated with polyester powder coating to ensure total resistance to atmospheric agents.
FILTER The easily removable filter is made of filtering honeycomb polypropylene fabric and supported by an aluminum frame. The filter is installed on the units with plenum only.
ELECTRICAL CONNECTION BOX All electric wires are connected to enclosed electrical terminal block, situated on the same side of the water connections. OPTIONAL ON-BOARD THERMOSTART HL107DB: for two pipe system use, working mode selection (OFF-Heating-Cooling), ventilation (HIGH-MED-LOW) and room temperature setting. |
Application: |
Fan coil units is the indoor terminal units of the air conditioning system,. Applicable to hotels, villas, hospitals, cinemas, stadiums, recreations, office blocks, factories and so on. |

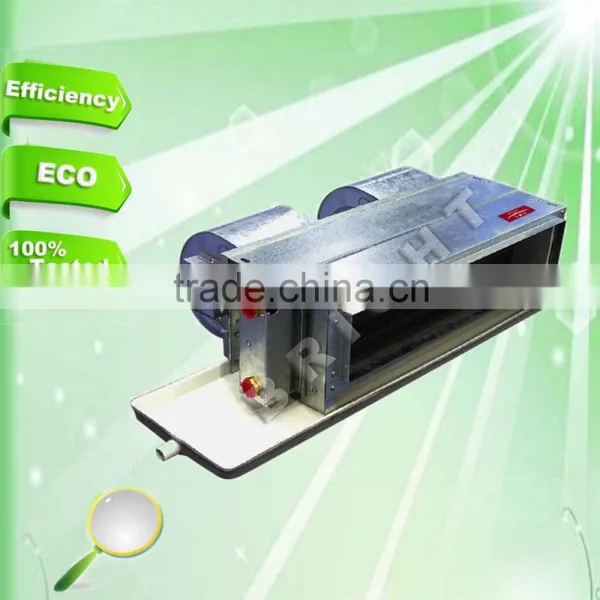

Product shows:

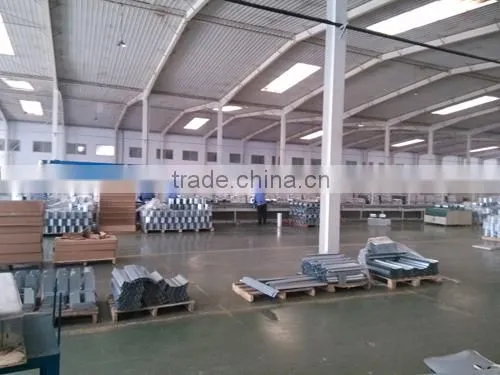

Factory shows:
A total area of 600,000 square meters and 200,000 square meters for workshop

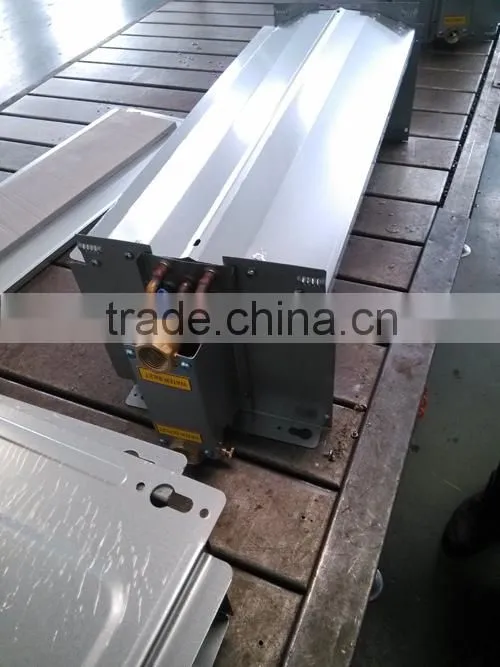

Inside workshop:
Established in 1987, BRIGHT has specialized in air conditioner, HVAC system & parts as a the leader in north of china.
BRIGHT is provided with Quality certification according to ISO 9001:2000 and ISO14001:2004.
