Specifications

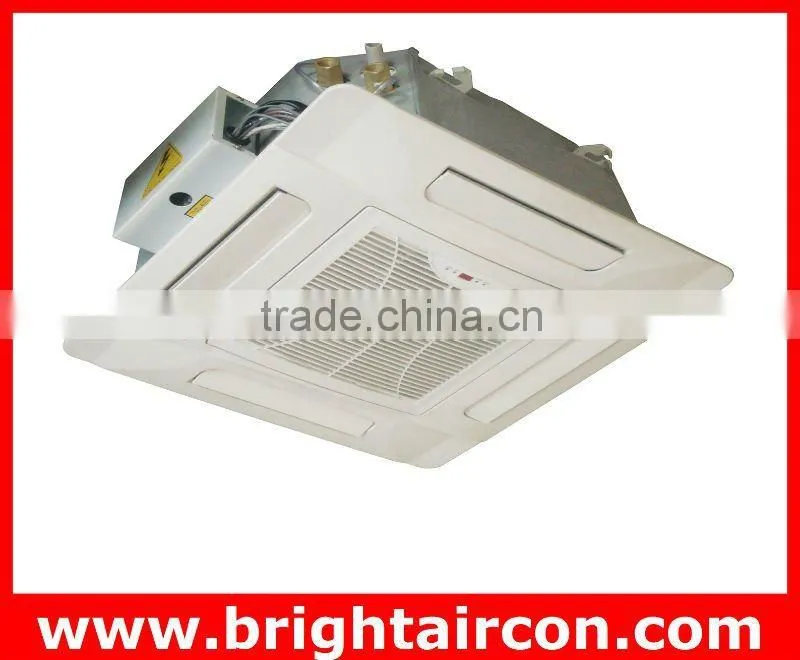

Cassette type Fan Coil, Water Chillered 4-way unit ( 4 pipe 2 rows)FP 6.8-23.8KM
Cooling capacity: 2.4-8.4KW
Cassette type Fan Coil, Water Chillered 4-way unit ( 4 pipe 2 rows)
FP 6.8-23.8KM
Cooling capacity: 2.4-8.4KW
Heating capacity: 3.2-10 KW
Air Flow: 680m3/h -- 2380m3/h
l Available in 7 models. The whole range is designed for suspended ceiling installation.
l Compact design, suitable for strict space installation.
l Centrifugal fan with backward vanes, driven by a three-speed motor, statically and dynamically balanced, low noise.
l Three-speed electric motors with thermal protector for windings, with a low number of revolutions.
l Luxury shape and ABS panel. External and internal sound and heat insulation layer--20mm thickness insulation cabinet made with EPS inside unit and 5mm insulation material out side unit cabinet. Inside the panel adhered with EPS polystyrene foamed material.
l The coils are made of seamless tubes expanded into aluminum fins in continuous block. The connections have brass headers with female fittings and provided with easily accessible vent and drainage valve.
l The drip tray is complete with a drain pump for draining the condensate water.
l All electric wires are connected to enclosed electrical terminal block.
l Remote controller is standard; Normal line controller or LCD line controller is optional.
l 4 pipes and 2 rows type as standard.
