Help CenterCommercial Ducted Split Units for School , Supermarket, Home Using
Related Products
FEATURES:
² 11 sizes available ranging from 19.5 kW to 103.7 kW
² Cooling only and heat pump version
² Wide application as hotel, apartment, villa, factory, shopping center, office building, school, etc
² High efficiency scroll compressor for the whole range, with built-in thermal overload cut-out and crankcase heater,mounted on rubber vibration dampers
² Outdoor units are equipped with low noise axial fans
² Indoor units are equipped with quiet centrifugal fans
Specifications:
Model |
BDRF20W/ND |
|
Power |
380V/3N/50Hz |
|
Cooling Capacity |
19.5kW |
|
Heating Capcaity |
22.6kW |
|
Air Circulation (m3/h) |
3500 |
|
Rated Input Power(kW) |
Cooling |
7.2 |
Heating |
7.13 |
|
Rated Input Current(A) |
Cooling |
12.87 |
Heating |
12,74 |
|
EER/COP |
2.7/3.17 |
|
Liquid Quantity(R22)Kg |
3.0*2 |
|
Indoor unit |
Noise dB(A) |
≤64 |
Net Weight/Gross Weight(kg) |
90 |
|
Net Dimension(mm) |
1660*915*480 |
|
Outdoor unit |
Noise dB(A) |
≤67 |
Net Weight/Gross Weight(kg) |
170 |
|
Net Dimension(mm) |
1120*830*1030 |
|
Connecting Pipe Specifications(mm) |
Liquid Pipe |
9.25*2 |
Gas Pipe |
15.88*2 |
|
Connection Way |
Flare |
|
Optional |
Electric heater/ |
|
Compressor Brand |
Hanbell/Fusheng/ Bitzer |
|
| Performance values refer to the following conditions: | |
|
* Cooling capacity is measured under the condition: indoor temperature DB 27°C/ WB 19°C, ambient temperature DB 35°C / WB 24°C. |
|
|
** Heating capacity is measured under the condition: indoor temperature DB 20°C / WB 15°C, ambient temperature DB 7℃ / WB 6°C. |
|
| *** Sound pressure measured at a distance of 1 m and a height of 1.5 m above the ground in a dear field. | |
| **** Optional as request. |

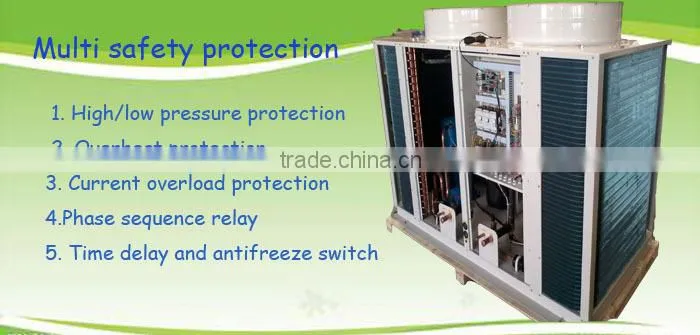

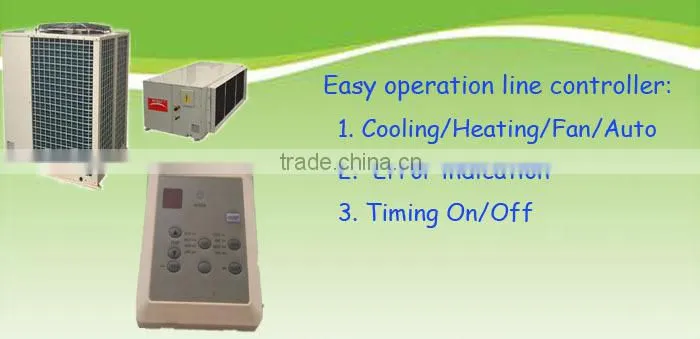

Product shows:
Factory shows:
A total area of 600,000 square meters and 200,000 square meters for workshop
Inside workshop:
Established in 1987, BRIGHT has specialized in air conditioner, HVAC system & parts as a the leader in north of china.
BRIGHT is provided with Quality certification according to ISO 9001:2000 and ISO14001:2004.
