Specifications

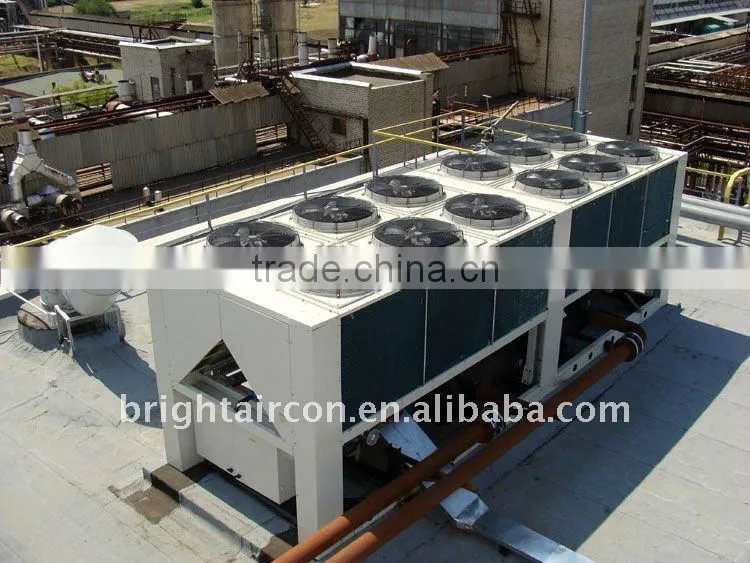

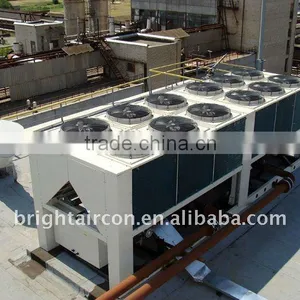

Air-cooled scroll chiller and heat pump, brightaircon R410aLSQW(R)FA 100Z-250Z
Cooling capacity: 100.4-256 KW
Air-cooled water chiller and heat pump with Scroll Compressor R410a
LSQW(R)FA 100Z-250Z
Cooling capacity: 100.4-256 KW
Heating capacity: 115.5-294.7 KW
FEATURES:
- 6 sizes available ranging from 100.4 kW to 256 kW cooling capacity.
- Scroll compressor for all models. Each compressor is equipped with a crankcase heater and a thermal overload cut-out; the screw compressor is also complete with a built-in electronic protection with temperature sensor located directly in the motor winding and on the discharge line.
- External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.
- Evaporator built with high efficiency shell and tube type heat exchanger, factory insulated with flexible close cell material.
- Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.
Hydraulic circuit built with galvanized pipe, complete with water discharge connection for shell and tube heat exchanger and flange type hydraulic connectors.
Electric panel consist of: compressor contactor, fan motor contactor, compressor isolating switch, fan protection breaker, phase sequence relay and microprocessor with function display
Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
OPTIONAL
Metallic filter for hydraulic circuit;
- Rubber antivibration mounting.
- BMS interface
- Heat recovery functions
