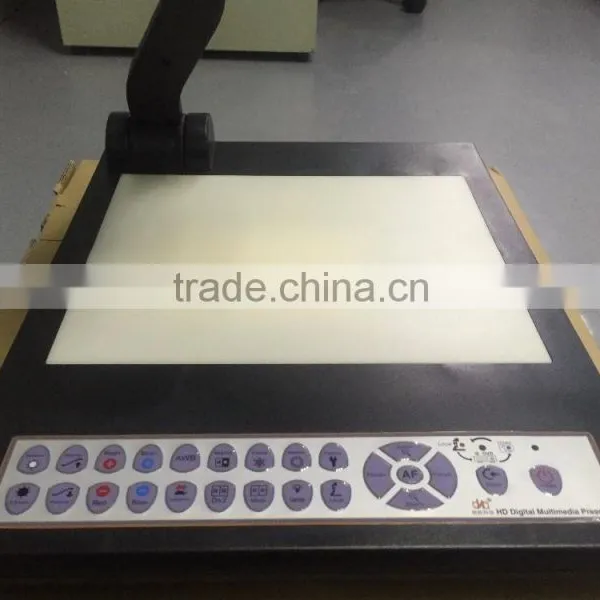

Help CenterEducation Industry Desktop Classroom Visualizer HS-7320A Portable Document Camera Cheap Price
Related Products
-
China Chip Price Portable Visualizer HS-7320C USBVGA HDMI Interface Digital Dicument Scanner for Education ClassroomUS$ 49 - 149MOQ: 1 Piece -
China Cheap Price SXGA 3.20 Mega Pixel Portable Visualizer A4 HS-7320D Document Camera With SD Card for ClassroomUS$ 49 - 149MOQ: 1 Piece
-
Educational Equipment 5.0 Mega HS-7500A Desktop Visual Presenter Document Camera Equipment Digitail Visualizer in the ClassroomUS$ 49 - 199MOQ: 1 Piece
-
School Equipment Digital Classroom Document Visualizer HS-7500C Portable Document CameraUS$ 49 - 199MOQ: 1 Piece
-
Best for Classroom Handy Document Camera HS-7500D Price Portable Document Scanner Desktop Visual PresenterUS$ 49 - 199MOQ: 1 Piece
| ·High resolution camera provide high quality image | |
| ·Resolution 3 200 000 pixels,1000 TV lines | |
| ·Optical zoom 22×: Digital zoom 10× | |
| ·Video 1 Input/1 Output, Audio 2 Input/ 1 Output | |
| ·VGA: 1 Input/ 1 Output | |
| ·CE & FCC Certificate approval |
| Specifications | ||
| Category | HS-7320A | |
| Optical | CMOS Size | 1/3’’ professional CMOS |
| Total Pixels | 3.2 Mega | |
| Line Resolution | 1000TVL | |
| Camera Head Rotation | 330 | |
| Frame Rate | 24 (fps) | |
| Shooting Area | 260×350mm max, 28 x 21mm min. | |
| Signal Noise Ratio(S/N) | 50 dB | |
| Lens(mm) | F=1.6-3.8.f=3.9-85.8mm | |
| Powered Zoom | 22×Optical/10× digital | |
| Focus | Auto/Manual | |
| Iris | Auto | |
| Lighting | Overhead Lamp | 3W*2 LED(100K lamp hours) |
| Lower Lamp | Built in LED lighting box 1W LED(100K lamp hours) | |
| Imaging | Brightness Adjustment | Auto/Manual |
| Video Signal | PAL/NTSC color system | |
| Resolution | SXGA (1280*1024) | |
| Colour/B&W Selection | Yes | |
| White Balance | Auto/Manual | |
| Auto Image Adjust | Yes | |
| Text/Graphics Enhancement | Yes | |
| Image Zoom | Yes | |
| Image Freeze | Yes | |
| Image Rotation | 360°(up/down)330°(left/right) | |
| (including 90° and 180° degree) | ||
| SHAPNESS Adjustment | Yes | |
| Colour (RED/BLUE) Adjustment | Yes | |
| Negative/Positive | Yes | |
| SCREEN DIV2 | Yes | |
| Terminals | VGA Input | VGA(DB15 FLC) ×1 |
| VGA Output | VGA(DB15 FLC) ×1 | |
| Video/Audio input | Audio;3.5Mini jack×1, Video :RCA×1 | |
| Video/Audio output | C-Video;RCA jack×1, Audio Mini jack ×1 | |
| RS-232 Connector | 1PC | |
| Power | 12V/2A DC adapter, 30W | |
| Temperature | -10°C--50°C | |
| Folded Dimensions(W*D*H) | 410x320x135mm | |
| Setup Dimensions(W*D*H) | 410x320x490mm | |
| Dimensions(W*D*H) | 515X440X250MM | |
| container (stack limit 8pcs ) | 495PCS/20" GP; 1035PCS/40'GP | |
| N.W./G.M. | 3.5KGS/ 6KGS | |
| Accessories | User's Manual, VGA Cable | |
| Warranty | 1 year (supply free parts for service in warranty) | |
| Optional functions | Remote controller ( add extral cost $12/pc) | |
How it works

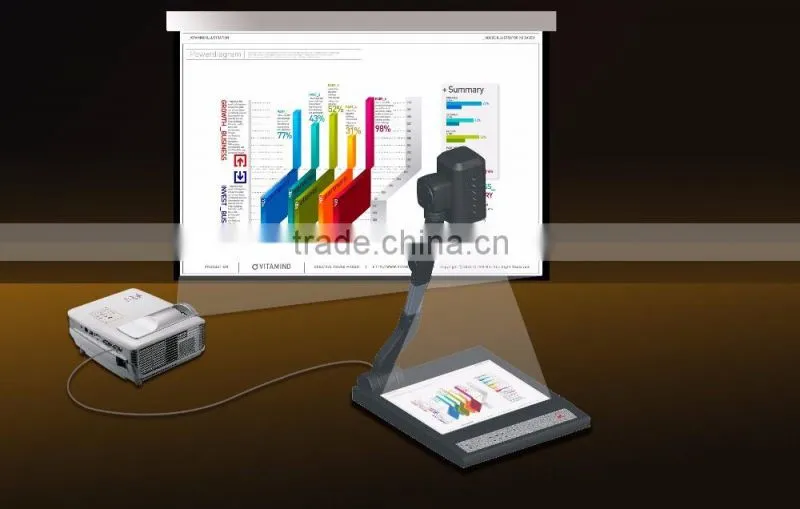

1, Connect circuit: connect projector and visualizer by VGA cable. Connect DC12V Adapter. The Power key and the input key lamp is on red.
2, Open the power: press the power key, the Power key lamp change to blue, the Start to operate the visualizer now.
3,Adjust camera: turn the camera to keep the object is in the center of the screen
4,Switch Function: if you want to use an external programming source, press the “Input”key to switch.
5,Close the power: press the Power key in 3seconds. The power key lamp change to red. The Input key lamp is out. The visualizer close.
Packing Details: Original Packing, 1 PCS per pack
Delivery Details: 3-20 days after receive the deposit
Delivery Terms: EXW,FOB,CNF,CIF.etc
Established in 2003, Hangzhou Hengsheng Electronic Technologies Co., Ltd is a high-tech company specializing in intelligent control systems, image stitching processing systems, matrix switching systems, and multimedia peripherals' research and production. Top 3 company in this line.
We are a manufacturer of Audio Visual products and specialized in the Education market more than 10years. , some of our products include: Desktop / portable document camera, Cam scanner, Multimedia Central Controller, All-in-one pc and so on. The company insisting on its motto ""excellence pursuance, perfect service" . All the products have passed CE,FCC,ROHS and ISO 9001.
1,What’s the minimum quantity of an order for your goods?
Normal order MOQ is 1 piece.
2,What’s the payment terms?
Payment term: T/T, Western Union, PayPal, Escrow .etc
3,How about your after-sales service?
We can provide accessories for free within 12 months.
We are the professional manufacturer of document scanner , any requirement feel free to contact me.
