Home > Products > Steam Boiler > PLC intelligent controller steel steam boiler

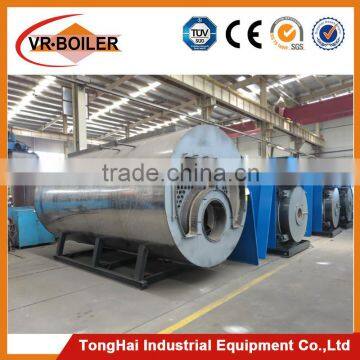

PLC intelligent controller steel steam boiler

FOB Price

USD $5,999 - $6,000,000 / Set

1 Set(Min.Order)

Supply Ability 32 Set / Sets per Month
Port QingDao TianJin ShangHai
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Natural Circulation
Usage	Industrial	Structure	Fire Tube
Pressure	Low Pressure	Style	Horizontal
Fuel	Gas-fired	Place of Origin	Shandong, China
Brand Name	Tonghai	Model Number	WNS
Output	Steam	Dimension(LWH)	Customization
Weight	Customziation	Certification	CE, ASME, SGS, ISO
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Item	Technical Specification
Capacity:	1.5t/h	3t/h	4t/h	5t/h	6t/h	8t/h	10t/h	12t/h
Rated steam pressure:	1.0Mpa	1.0Mpa	1.0Mpa	1.0Mpa	1.25Mpa	1.25Mpa	1.25Mpa	1.25Mpa
Feed water temperature:	20℃	20℃	20℃	20℃	105℃	105℃	105℃	105℃
Steam temperature:	184℃	184℃	184℃	184℃	194℃	194℃	194℃	194℃
Fuel Type:	Natural gas, light diesel, heavy oil, LPG
Efficiency:	Above 93%
Boiler Weight:	4730kg	10457kg	11840kg	15220kg	17976kg	22657kg	25720kg	32000kg

This is the saturated steam boiler, three return , wet back packaged structure with pressurized combustion and high energy efficiency. Ready for operation in combination with burner on liquid or gas fuel. Boiler with three flue passes, combustion chamber with cooled end plate sized to ensure low heating loads.

FEATURES

·The large steam room and high quality steam.

·Flexible,reliable and unparalleled service life.

·High pressure stability and high steam quality for demanding users.

·Automatically operation, PLC is control and equipment operating parameters and fault alarm by sound and light.

·The unique design of the combustion chamber, increasing the radiation heating furnace area, reducing the size of the boiler, reducing NOx emissions.

·After presenting, the purge functions to improve the working conditions of combustion and longevity.

Installation Boiler to Export

Weishaupt, Riello burner

Movable doors for easy inspection & maintenance of boiler

Germany WILO water pump

Italy Three Pass Boiler style

Germany SIMENS PLC control

Our Services

1, Boiler body warranty 3 years.

2, Study the needs of customers, help customers decision.

3, Provide the completely design drawing and technical training service.

4, Supply all spare parts in boiler working life.

5, Installation and commissioning service.

FAQ

How much steam capacity do you want ?

Answer: 0.5Ton/hr to 100Ton/hr

How much working pressure it the boiler ?

Answer: 4bar ~ 75bar

What kind of fuel do you prefer ?

Answer: L.P.G., Natural Gas, Light Diesel, Heavy Oil etc

what are the electric conditions in your market ? Voltage, HZ etc

Answer: 380V, 50HZ, 3Phase

Which burner our boiler use?

Answer: WEISHAUPT burner, RIELLO burner,UNIGAS burner,BALTUR burner.
