Specifications
40 more years boiler history;grade A boiler manufactory;
efficiency: above 83%
Approval: ASME, SGS, ISO
FERROLI GRUPPO is the pioneer of Europe boilers history, also the well-known heating group in Europe, and we have various boilers for worldwide customers.
Technical Specifications
parameter / model |
DZL(W)0.7-0.7-95/70-AII |
DZL(W)1.4-0.7-95/70-AII |
DZL(W)2.8-0.7-95/70-AII |
DZL(W)4.2-1.0-115/70-AII |
DZL(W)_5.6-1.0-115/70-AII |
DZL(W)7.0-1.0-115/70-AII |
|||
Rated evaporation capacity |
MW |
0.7 |
1.4 |
2.8 |
4.2 |
5.6 |
7 |
||
Operation pressure |
Mpa |
0.7 |
0.7 |
0.7 |
1 |
1 |
1 |
||
Steam temperature |
Deg C |
95 |
95 |
95 |
115 |
115 |
115 |
||
Water-inlet temperature |
Deg C |
70 |
70 |
70 |
70 |
70 |
70 |
||
Boiler heating efficiency |
% |
74 |
76 |
76 |
78 |
82 |
83.5 |
||
Area of stoker |
m2 |
1.8 |
3.04 |
5.14 |
7.4 |
11.4 |
11.4 |
||
Heating area |
m2 |
6000 |
12000 |
24000 |
36000 |
48000 |
60000 |
||
Fuel |
Coal available |
II type bitumite,low heat capability:17700-21000KJ/kg |
|||||||
|
Consumption |
kg/h |
145 |
290 |
580 |
960 |
1100 |
1410 |
|
Water entrance and exit diameter |
MM |
Pn1.6Dn65 |
Pn1.6Dn100 |
Pn1.6Dn125 |
Pn1.6Dn150 |
Pn1.6Dn150 |
PN1.6DN200 |
||
Dimensions of biggest parts for shipment (L x W x H) |
m |
5.15*1.75*2.87 |
5.82*2.26*3.22 |
6.51*2.6*3.52 |
7.5*2.9*3.5 |
7.1*3.2*3.5 |
7.5*3.2*3.5 |
||
|
|
|
|
|
|
|
|
||
Weight |
t |
13.5 |
19.1 |
26.5 |
31 |
42 |
43 |
||
|
|
|
|||||||

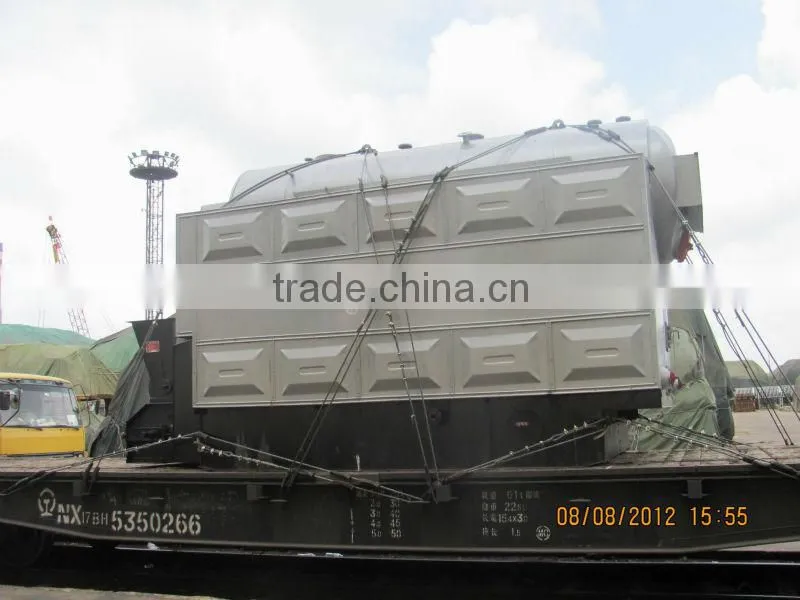

Boiler export by Railway to Mongolia

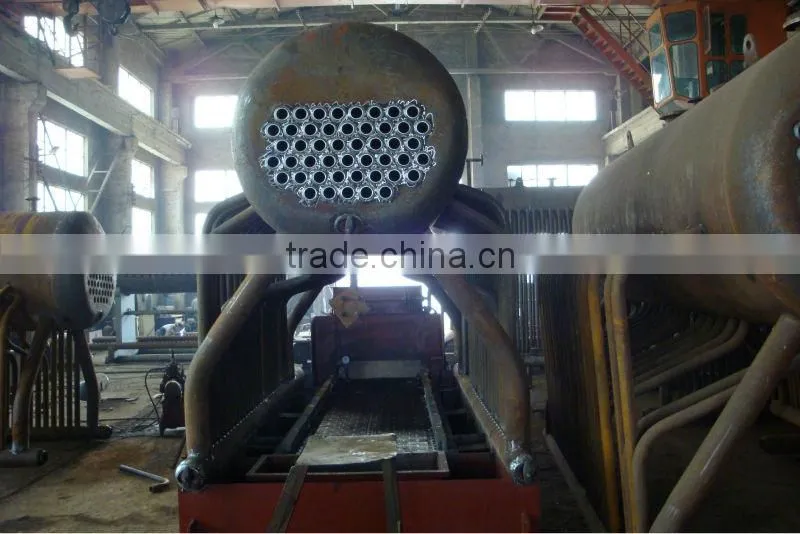

WorkShop

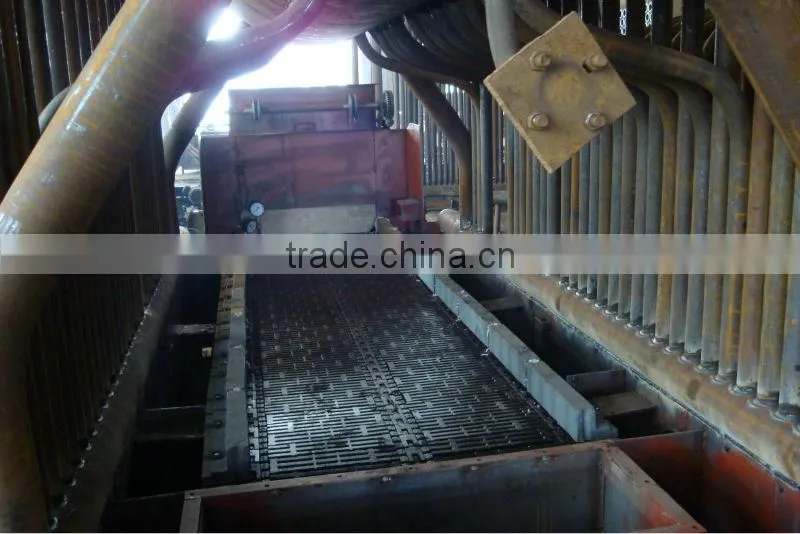

Chain Grate

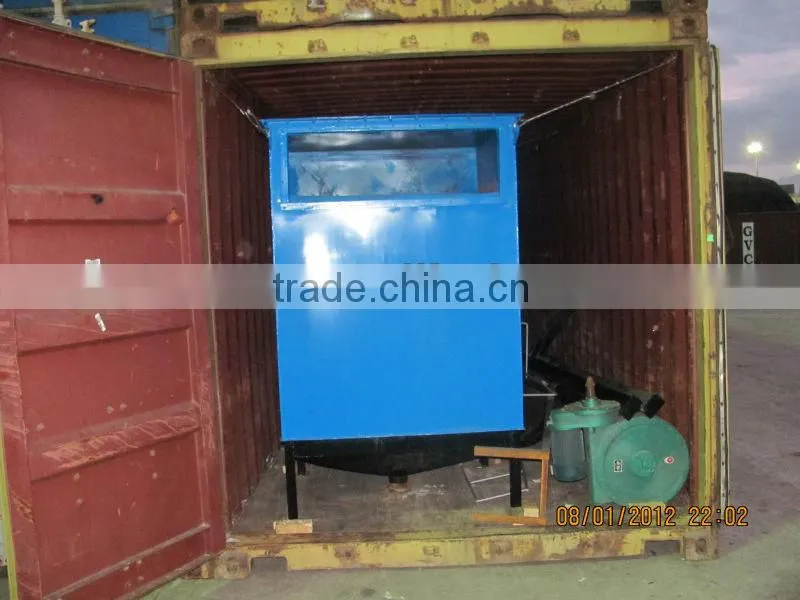

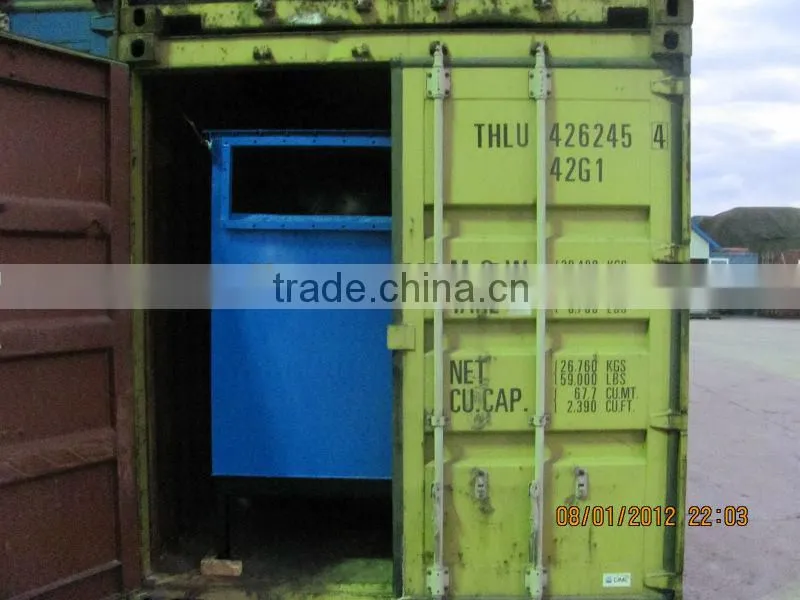

Packed Boiler
---- Engineers are available service overseas
---- Ferroli boiler body warranty 3 years
---- Engineers 24hours online
- How much capacity do you want ?
- How much working pressure it the boiler ?
- What kind of fuel do you prefer ?
- And, what are the electric conditions in your market ? Voltage, HZ etc
