Specifications

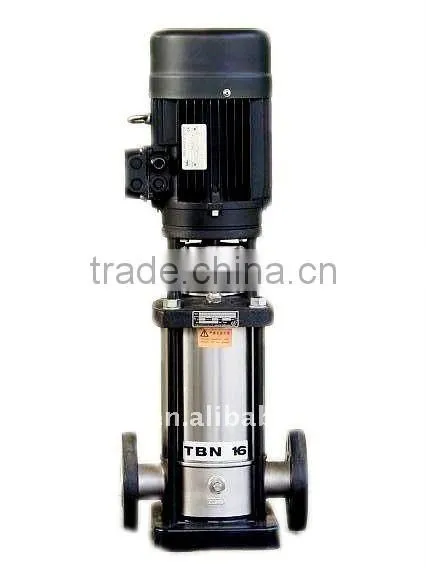

Motor is fully enclosed, air-cooled two pole standard motorTBN16 ---- Flange:
Stainless steel multistage pump

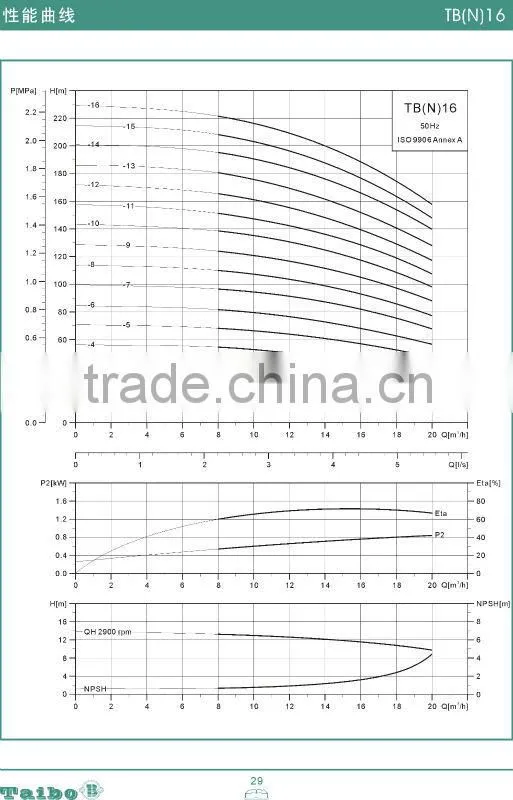

Flow range Q (m3 / h) :8.0-20 .0
Lift range of H (m) :18-222
Motor (kw) :2.2-15
Motor is fully enclosed, air-cooled two pole standard motor
* Installation Type :0.37-4 .0 kW, V18; 5.5kW or above, V1.
* Insulation grade: F; B.
* Protection class: IP55, IP54 and IP44.
* 50Hz Standard Voltage: 3 × 200-220/346-380V; 3 × 220-240/380-415V; 1 × 220-230/240V.
Operating conditions:
Transport liquids: thin, non-inflammable, explosive, does not contain solid particles or fibers of the liquid, the liquid does not pump material to be caused by chemical and mechanical damage. When the transmission fluid is greater than the density or viscosity of water, if necessary, need to adopt the corresponding high-power motors. Pump is applicable to a particular liquid, depending on the chloride content, such as liquid; PH value; a number of factors such as temperature and composition.
* Liquid temperature: -15 - +103 .
* Environmental temperature: maximum +40 . If the ambient temperature exceeds +40 , or more than 1000m above sea level, due to the low air density, leading to motor cooling effect is not good, motor rated output power be reduced accordingly. Therefore, we must use higher power motor.

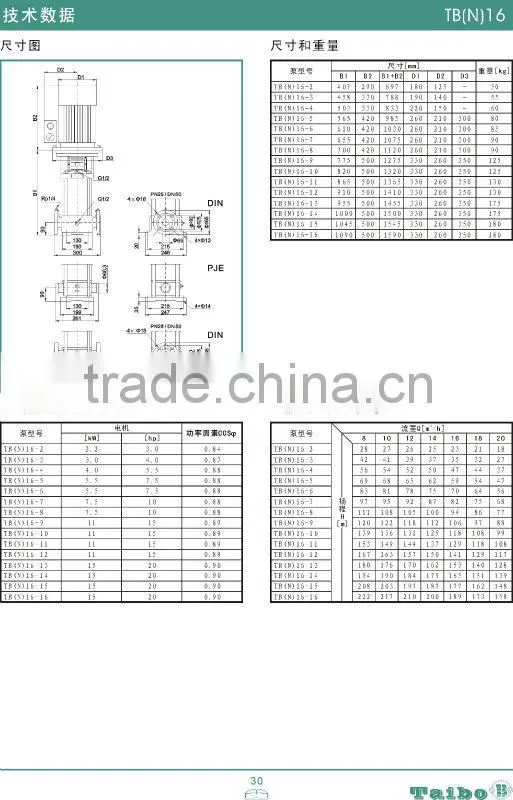

Flange Diameter: DN50
Application:
Water filtration and distribution, in charge of pressurized, high-rise building pressurization, industrial water pressurization, process water systems, high-pressure washing systems, cooling and air-conditioning systems, boiler feed water and condensate water systems, wine and alcohol, high-pressure filtration system, anti - infiltration system, softening, electrolysis, desalination systems, distillation systems, land irrigation, spray irrigation, drip irrigation.
