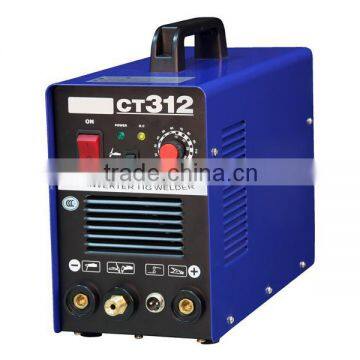

TIG/MMA/CUT Welding Machine

TIG/MMA/CUT Welding Machine thumbnail-1
TIG/MMA/CUT Welding Machine thumbnail-2
TIG/MMA/CUT Welding Machine photo-1
TIG/MMA/CUT Welding Machine photo-2
US$ 280 - 300 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
DTH
Contact Supplier Request Quote Chat Now
Shenzhen DTH Machines Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name DTH
Model Number CT-312
Arc Current 10-200A
Pulse Frequency 50/60 HZ
Pilot Arc Current 30A
Rated Duty Cycle 60%
Motor Type AC Motor
Dimensions 371*153*232
Usage Welding
Voltage 220V
Power(W) 3-5KW
Certification ISO9001:2008
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Product Features:

1.Multi-function:TIG/MMA/CUT,original design;

2.Easy and reliable operation with electric switch.Economical and endurable;

3.Smooth arc-start,stable welding current and concentrated arc for TIG.Capable in welding various metal.

4.Smooth arc-start,stable welding current for MMA;

5.Simple and convenient for CUTTING ,able to cut various metal;

6.Small and light , easy to move around and to install;

7.Clever circuit design, simple in structure,particular in technique, safe and reliable.



Model CT312 CT416
Input Voltage(V) AC220V±15% AC220V±15%
Frequency(HZ) 50/60 50/60
Input Power 4 4
No-load Loss 40 40
Duty Cycle(%) 60 60
Power Factor 0.73 0.73
Efficiency(%) 80 80
Housing Protection Grade IP21 IP21
Insulation Grade F F
Net Weight(KG) 9 14
Diamension(mm) 371*153*232 432*204*302
  TIG MMA CUT TIG MMA CUT
Rated Input Current(A) 13.8 23.2 14 26.4 34 31
Rated Output Range(A) 120 120 30 160 160 46
Output Current Range(A) 10-120 10-120 15-30 10-160 10-160 20-40
No-load Voltage(V) 55 55 220 62 62 260
Rated Output Voltage(V) 15 25 92 16 26 96
Air Pressure —— —— 0.4MPa —— —— 0.4MPa
Air Flow 2-5L/min —— 80L/min 2-5L/min —— 80L/min
Max Cutting Thickness —— —— 12 —— —— 16
Arcing Way HF Contact HF HF Contact HF
