Specifications
1.Print nylon taffeta and polyester satin etc2.4 colors printing
3.Offset Print Ink

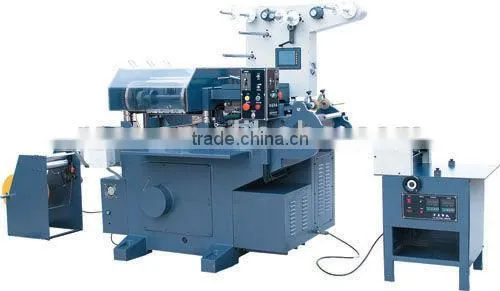

CNC Flatbed Label printing machine
CNC Flatbed Label printing machine/Sticker Label Printing Machine
Basic Info.:
Model NO.: WJXB4230
Color & Page: Multi-Colour Printing Press
Style: Relief Printing Press
Structure: Flat-bed Cylinder Press
Label Printing Machine: Flat-Bed Printing Machine
Export Markets: Globa
CNC Flatbed Label printing machine/Sticker Label Printing Machine
Additional Info.:
Trademark: WANJIE
Origin: China
HS Code: 8443
Production Capacity: 10set/Month
CNC Flatbed Label printing machine/Sticker Label Printing Machine
Product Description:

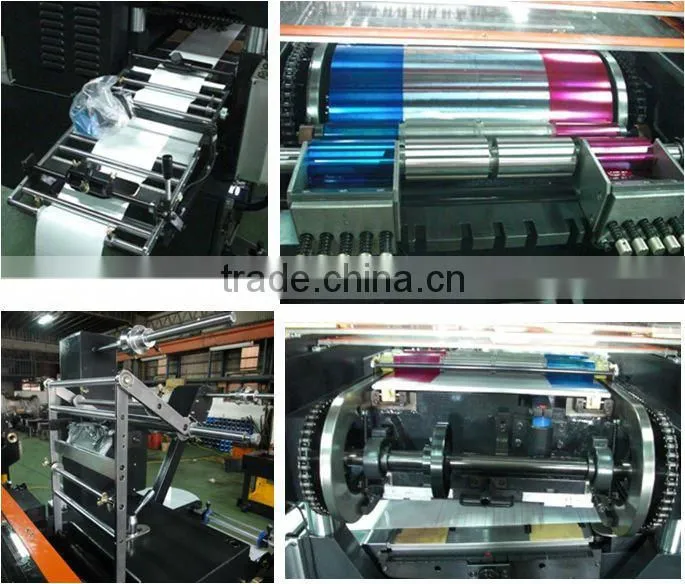

A) The max. Printing area for 4 color is 220*85mm, with Complete 2-color, 3-color and 4-color Attachment, total 21cylinders
B) The machine is equipped with computer which enables high precision and second print possible.
C) Digital input for order makes the operation much easier compared with the mechanic label printing machine of the same model.
D) The servo motor is Yaskawa Japan and the speed reducer is Apex Taiwan.
E) The printing speed can be adjusted between 50-200 times/min.
F) This machine adopts Taiwan Delta inverter, Italian DS second pass detector, Yanxin Taiwan electromagnetic clutch.
G) The main driving system adopts umbrella with spiral gear which makes the machine precise and durable.
H) The main axle uses alloy copper bush and all steel rollers are chromed and grinded.
I) The die-cutting station is separated with the printing station for easy operation.
J) Unwinding, printing, laminating, die-cutting and rewinding could be processed consecutively one time
K) Lubricate automatically
L) Wholly cast-iron station ensures the stable running of the machine.
Model |
WJBQ-4180 |
WJBQ-210 |
WJBQ-230 |
|
Plate dimension |
180*320mm |
210*390 mm |
230*390 mm |
|
Max. |
1-2color |
170*140mm |
200*170 mm |
220*170 |
3color |
170*95mm |
200*120 mm |
200*120 mm |
|
4color |
170*70mm (OPTION) |
200*85 mm |
200*85 mm |
|
Max. paper width |
180mm |
210 mm |
230 mm |
|
Max. paper length |
150mm |
180mm |
180mm |
|
Max. die-cutting Area |
170*170mm |
200*180 mm |
200*180 mm |
|
Print speed |
50-200times/min |
50-200times/min |
50-200times/min |
|
Machine Dimension |
2100*1100*1650mm |
2200*1100*1650mm |
2200*1100*1650mm |
|
Net weight |
2200kg |
2800 km |
3000 km |
|
Gross weight |
2600kg |
3200 km |
3600 km |
|
CNC Flatbed Label printing machine/Sticker Label Printing Machine
In the field of label printing machines, we have been issued the following certificates and have been honored with many awards, such as:
Type of Certificate |
Quality management certificate: ISO 9001: 2008 standard |
CE: CE Certificate |
Type of Honor |
Science & Technology Progress Award of Tangshan |
The Title of Famous Trade Mark of Hebei Province |
National SME Technology Innovation Fund for Projects to Support Enterprises |
Enterprise Technology Center of Hebei Province |
Host Reviser of National Standard on “Rotary Printing Press Industry Standard” in Year 2011 |
One of the Top Ten Creative Brands of Printing Press Industry of Year 2010 |
Excellent Performance Award of China Label Industry in Year 2009 |
Famous Brand of Hebei Small & Medium-Sized Enterprises |
Good Quality and Credit Standing Demonstrating Enterprise |
Wanjie Printing Machinery Company was founded in 1999, is the first one who research and manufacture trademark printing machine of northern. Our Company locates in the Northern Printer Base of China -Yutian, Tangshan city, Hebei, with a total area of 21 acres. The first color-coated steel shop take up 4000 square meters, with consummation mechanical processing and testing equipment. We always adhere to that "science and technology as a guide, and the market for the prop, the quality of survival" and as it as sustainable development strategy. It has become a high-tech enterprise with strong researching and independent producing ability
We have set up fully-funded branch sale in many areas of china. Product marketing net works in major cities throughout the country. In addition, it sold far away as Malaysia, Indonesia, Pakistan, South Korea and other countries.
Our company animates by superior products, preferential prices and consummation services to benefit the community, to produce better label printing machinery. We given full play to own advantages in scientific research and technology development, aggregate years of label printing machinery manufacturing experience, make every effort to forge ahead, commit to the label printing machinery and related auxiliary equipment research and development work.
Welcome you visit our factory!
