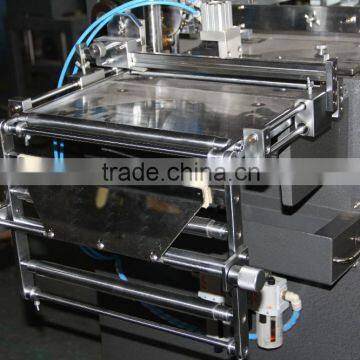

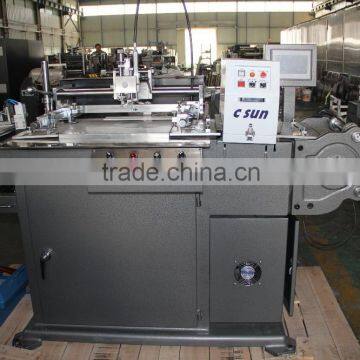

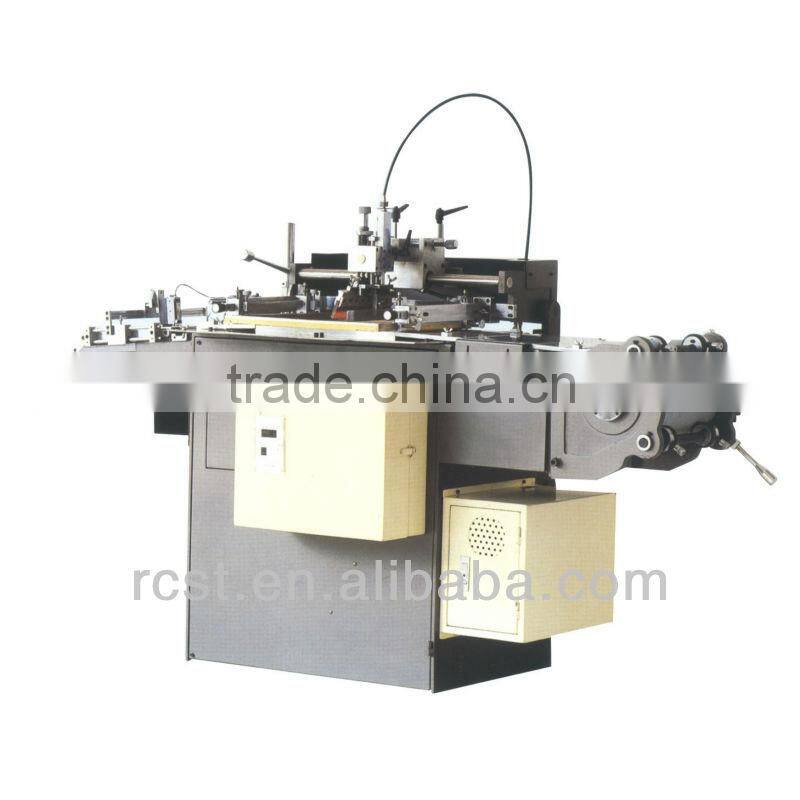

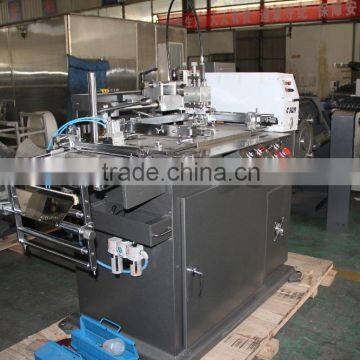

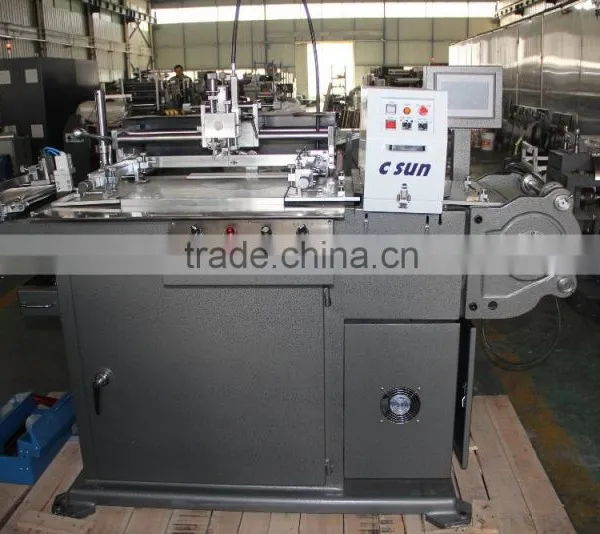

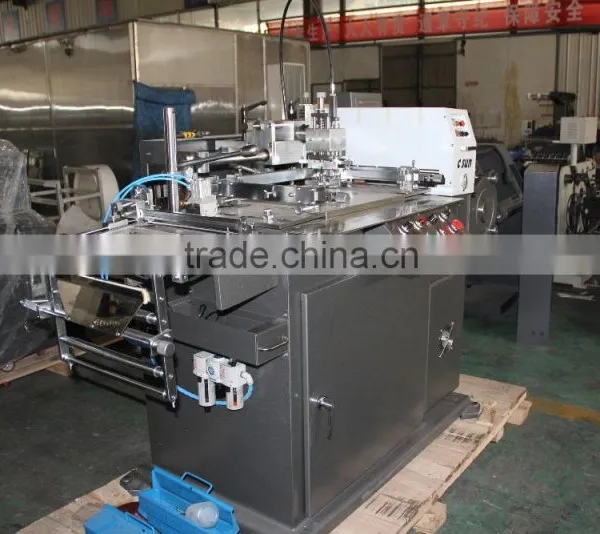

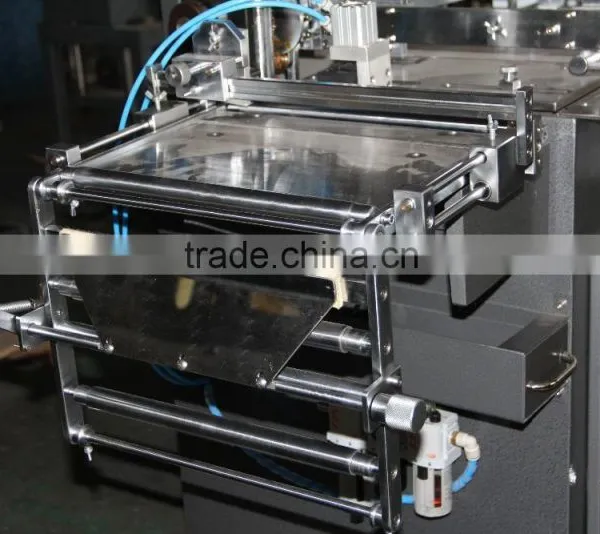

Silk Screen Printing Machine WJ-320S
Characteristics:
Full automatic muti-color printing sensor positioning, color registration repeatedly,computer controlled,simple in operation, accurate in coloring, so its able to improve the printing quality.
Flexible setup of printing speed, counting printing number, and automatic shutdown as per set number.
Standard functions:automatic paper feeding, printing, CNC extensioin, drying and rewinding.

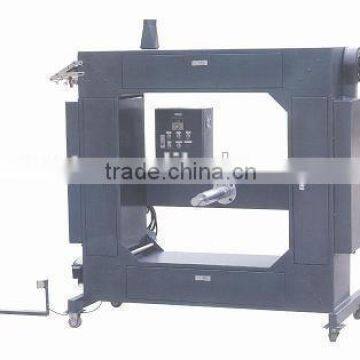

Basic configurations:paper feeding machine, main machine, hot air drier machine, and a standard toolkit.
Optional configurations:UV drying system,paper slitting machine, and rewinder.
Application materials:sticker paper, adhensive tapes, PVC, PET, ribbons, aluminum foils,soft circuit boards,mobile telephone keypad, and other packaging materials.
Silk Screen Printing Machine WJ-320S
Technical Variables:
Web Width |
mm |
320 |
Screen Frame. |
mm |
450*450 |
Max. Printing Area. |
mm |
300*300 |
PaperRange |
gsm |
80-300 |
Printing Speed |
times/min |
4200 |
Main Power |
kw |
0.75 |
Oven |
kw |
4.5 |
Printer Dimension(LXWXH) |
mm |
2600*950*1450 |
Printer Weight |
kg |
800 |
Oven Dimension |
mm |
1750*600*1800 |
Oven Weight |
kg |
300 |
Voltage and Current Frequency |
|
380 V -Three phase; 50 Hz |

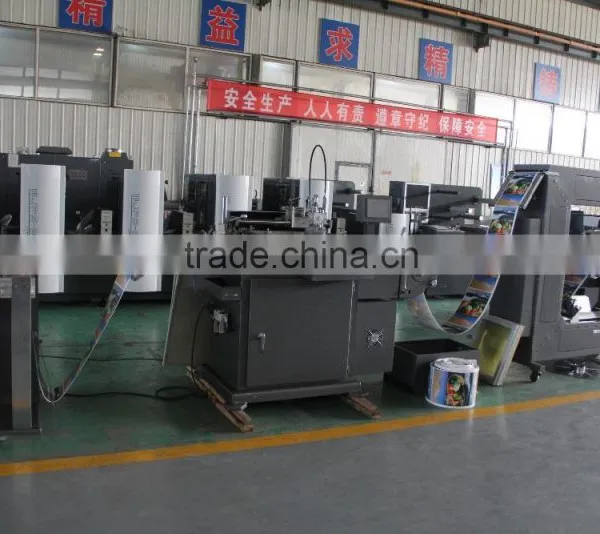

Wanjie Printing Machinery Company was founded in 1999, is the first one who research and manufacture trademark printing machine of northern. Our Company locates in the Northern Printer Base of China -Yutian, Tangshan city, Hebei, with a total area of 21 acres. The first color-coated steel shop take up 4000 square meters, with consummation mechanical processing and testing equipment. We always adhere to that "science and technology as a guide, and the market for the prop, the quality of survival" and as it as sustainable development strategy. It has become a high-tech enterprise with strong researching and independent producing ability
We have set up fully-funded branch sale in many areas of china. Product marketing net works in major cities throughout the country. In addition, it sold far away as Malaysia, Indonesia, Pakistan, South Korea and other countries.
Our company animates by superior products, preferential prices and consummation services to benefit the community, to produce better label printing machinery. We given full play to own advantages in scientific research and technology development, aggregate years of label printing machinery manufacturing experience, make every effort to forge ahead, commit to the label printing machinery and related auxiliary equipment research and development work.
Welcome you visit our factory!
