1. Overview
The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network (Figures 1, 2 and 3). SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
Figure 1. Cisco optical Gigabit Ethernet SFP

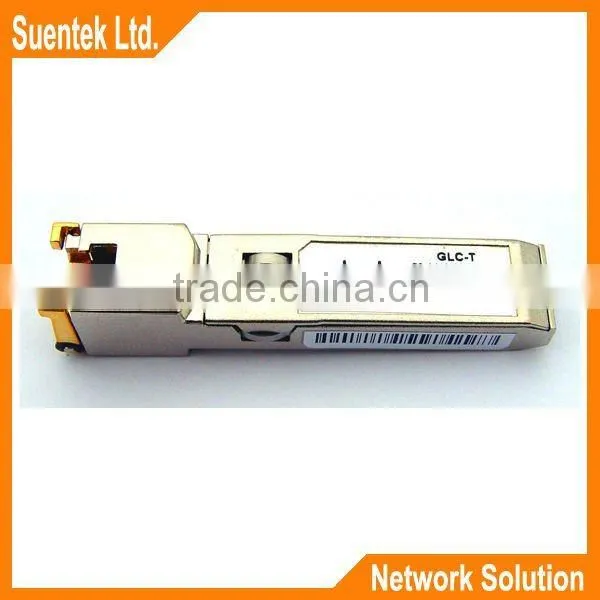

Figure 2. Cisco 1000BASE-T Copper SFP
Figure 3. Cisco 2-channel 1000BASE-BX optical SFP
--------------------------
2. Item Number: GLC-T
Description: 1000BASE-T standard
Cabling Type: 10Base-T, 100Base-TX, 1000Base-T
Condition: New Sealed
Waranty: 1 Year
| General | |
|---|---|
| Device Type | SFP (mini-GBIC) transceiver module |
| Enclosure Type | Plug-in module |
| Width | 1.4 cm |
| Depth | 7.1 cm |
| Height | 1.4 cm |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Miscellaneous | |
| MTBF | 1,000,000 hour(s) |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN55022, VCCI Class A ITE, EN55024 |
| Manufacturer Warranty | |
| Service & Support | 90 days warranty |
| Service & Support Details | Limited warranty - 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Compatibility Information | |
| Designed For | Cisco Catalyst 3750-24PS EMI |
--------------------------
3. Our Services
==>Trusted by 5000+Worldwide Buyers
==> Huge Inventory in Stock
==>Up to 1 Year Warranty
==>Save up to 50%-98% off GPL
==>Cisco Certified Internetwork Expert Support 7X24 Hours
==>Flexible Payment & Shipment
==>100% Money Bank Guarantee
--------------------------
4. Related Products
-------------------------------
Product Number |
Product Description |
GLC-T |
1000BASE-T standard |
GLC-SX-MM |
1000BASE-SX short wavelength; without DOM |
GLC-LH-SM |
1000BASE-LX/LH long-wavelength/long haul; without DOM |
GLC-ZX-SM |
1000BASE-ZX extended distance |
GLC-BX-D |
1000BASE-BX10-D downstream bidirectional single fiber; with DOM |
GLC-2BX-D |
2-channel 1000BASE-BX10-D downstream bidirectional single fiber; with DOM |
GLC-BX-U |
1000BASE-BX10-U upstream bidirectional single fiber; with DOM |
SFP-GE-T |
1000BASE-T NEBS 3 ESD |
|
SFP-GE-S GLC-SX-MMD |
1000BASE-SX short wavelength; with DOM |
|
SFP-GE-L GLC-LH-SMD |
1000BASE-LX/LH long-wavelength; with DOM |
GLC-EX-SMD |
1000BASE-EX long-wavelength; with DOM |
SFP-GE-Z |
1000BASE-ZX extended distance; with DOM |
GLC-SX-MM-RGD |
1000BASE-SX short wavelength; rugged |
GLC-LX-SM-RGD |
1000BASE-LX/LH long wavelength; rugged |
GLC-ZX-SM-RGD |
1000BASE-ZX extended distance; rugged |
