Specifications
Painted box/utility/cage trailers2-pack car paint
Customized color (RAL colors)
Customized size
Heavy duty

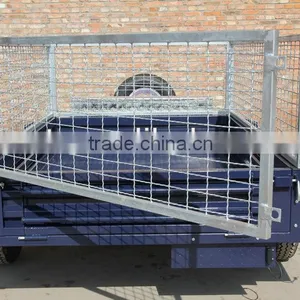

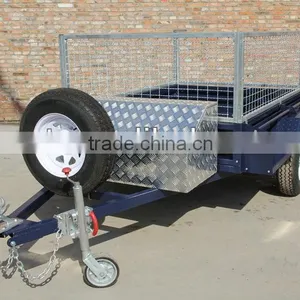

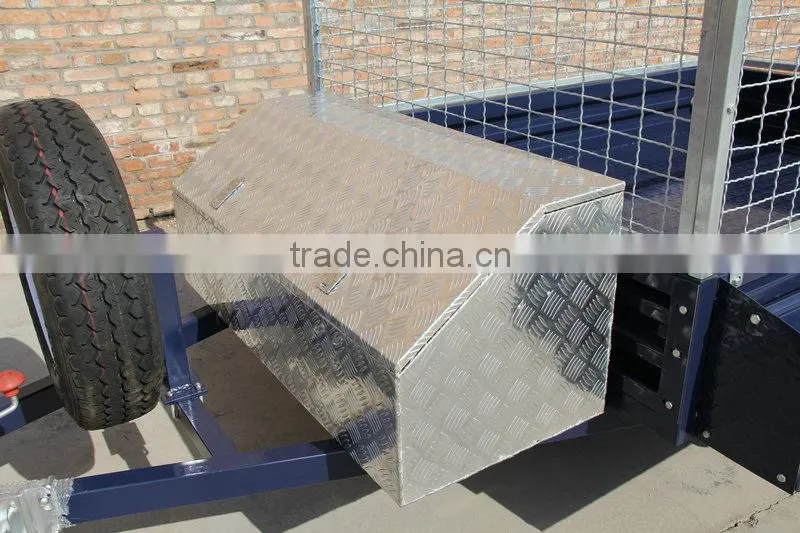

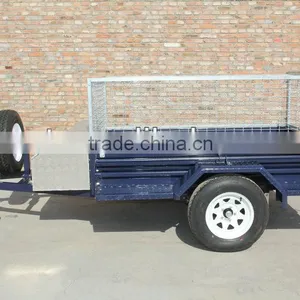

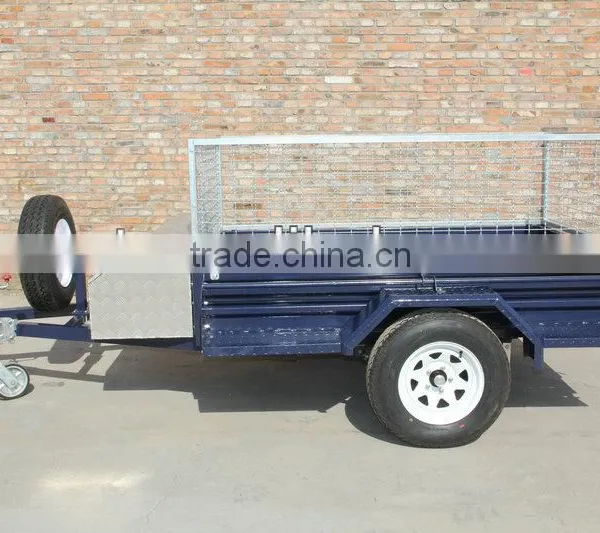

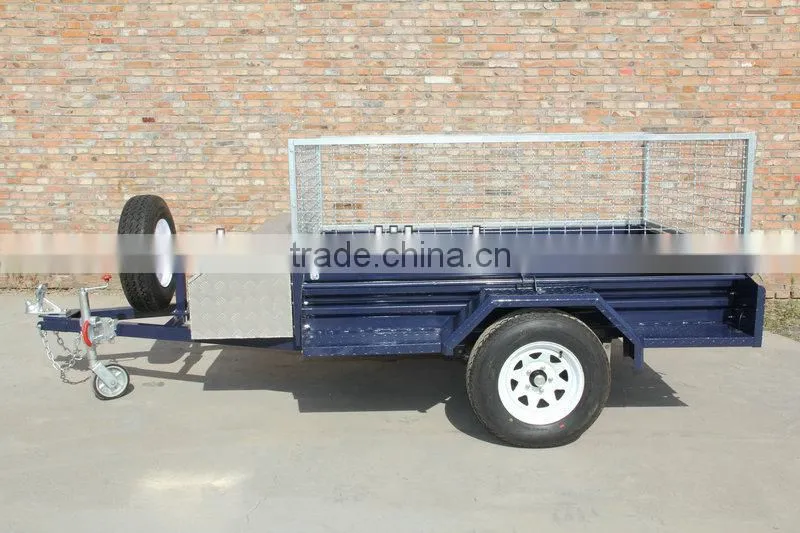

Painted box/utility/cage trailers
Trailer specification table:
Size/FT |
No. of axles |
No. of brakes |
Tire size |
Draw bar tube/mm |
Drawbar length from front gate/mm |
Bottom chassis frame tube/mm |
Box height/mm |
Ground clearance height/ mm |
ATM/kg |
6x4 |
1 |
0 |
165/70R13 |
70x50x3 |
1500 |
50x50x2.5 |
300 |
850 |
750 |
7x4 |
1 |
0 |
165/70R13 |
70x50x3 |
1500 |
50x50x2.5 |
300 |
850 |
750 |
7x5 |
1 |
0 |
165/70R13 |
70x50x3 |
1500 |
50x50x2.5 |
300 |
850 |
750 |
8x5 |
2 |
1 |
185/70R14 C |
100x50x3 |
1500 |
50x50x2.5 |
300 |
850 |
2000 |
Note: Trailer size can be customized as customers’ requests.
Color:
2-pack car paint, color is customized (RAL colors)
Trailer body construction and materials

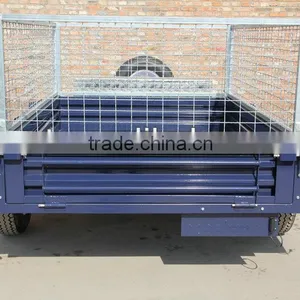

Trailer side panels, front panel & tailgate:1.5mm flat steel sheet folded as standard; Standard box height as per the above table;
Trailer floor: 2.5mm thick steel checker plate welded onto chassis;
Trailer mudguards: 2.5mm checker plate;
Trailer front panel is detachable, and cannot be opened.

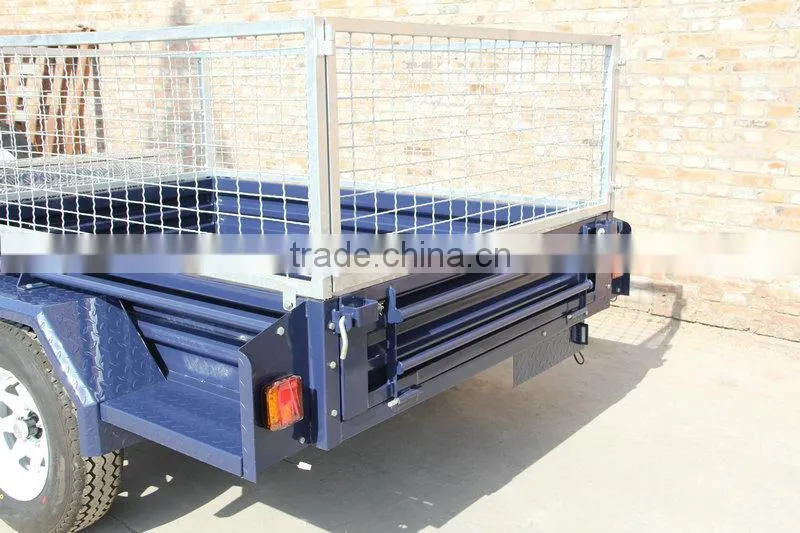

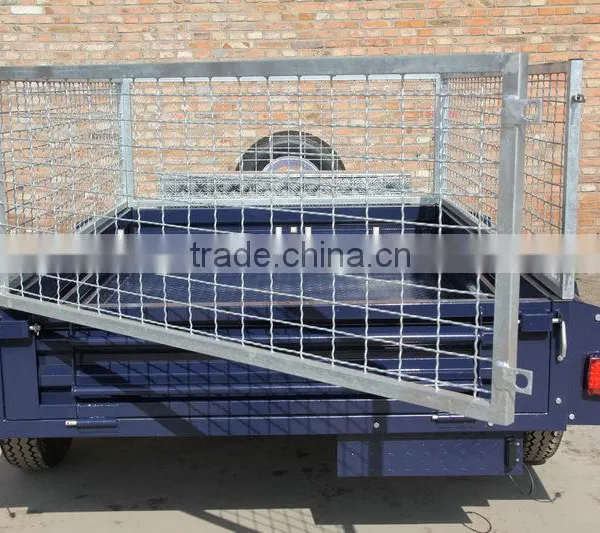

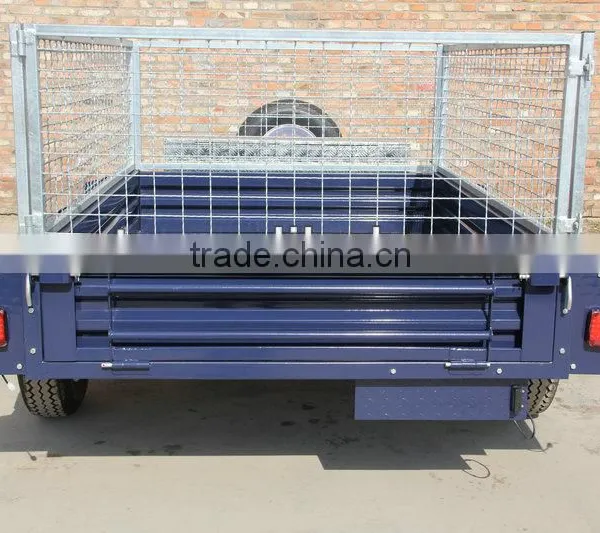

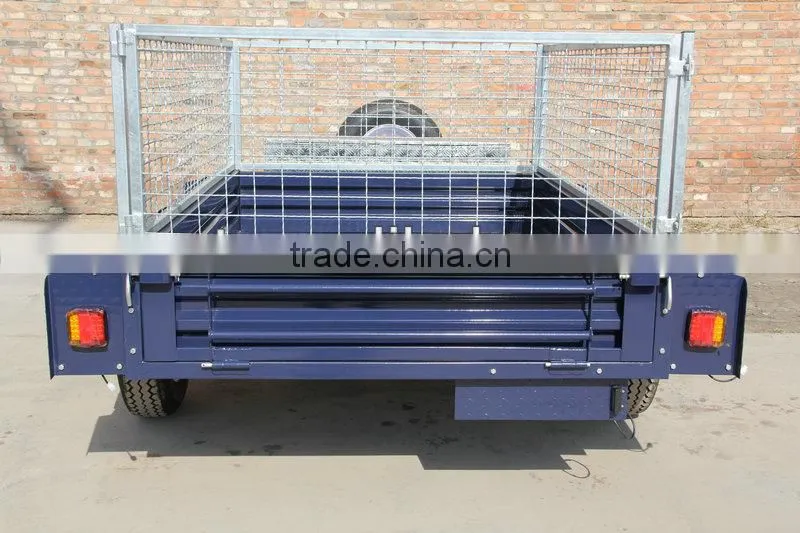

Trailer tailgate is detachable and can be opened downwards.

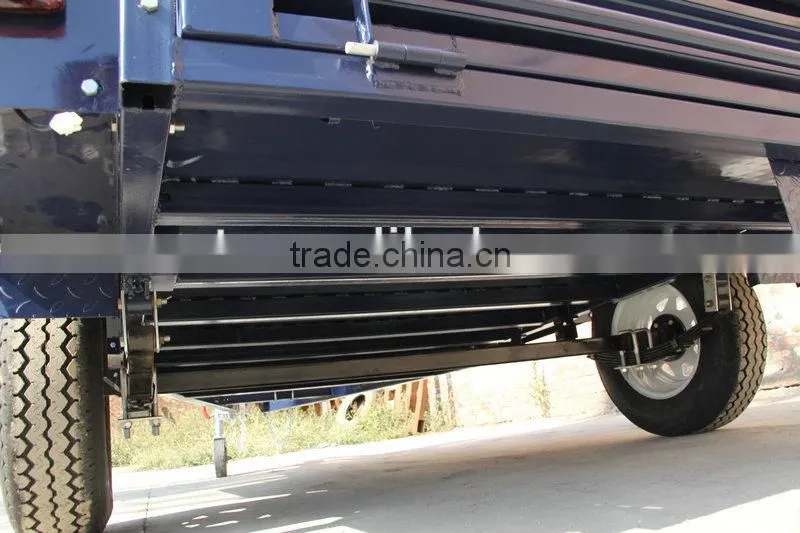

Trailer suspension and wheel
Standard quantity of mechanical brake system as per the above table;
Alxe: 40mm diameter round solid axle, standard quantity as per the above table;
Standard 5-leaf eye-to-eye painted leaf springs for single axle box trailer.
Trailer without shock absorbers

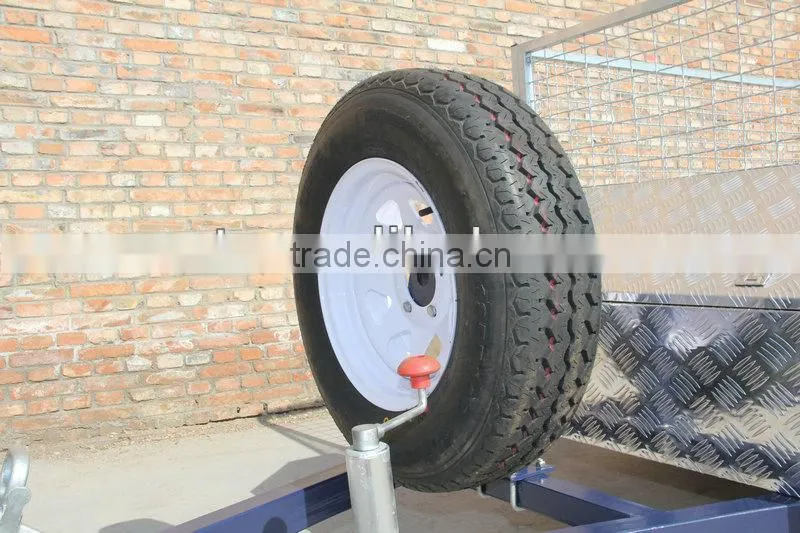

Wheels: White powder coated steel rims as standard; All tires are DOT certified.
Trailer details and accessories
Safety chains: painted, comply with Australian standard, with standard markings

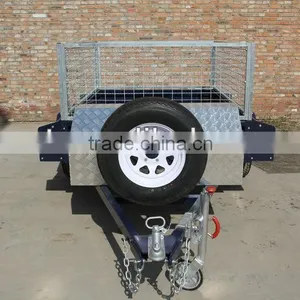

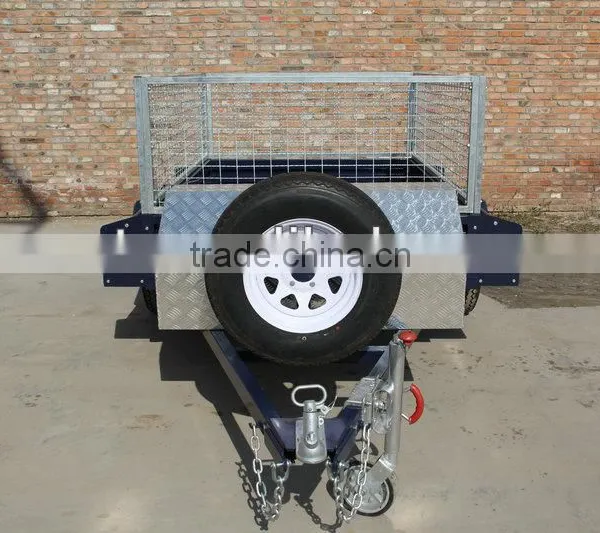

50mm ball casting coupling for Australian Market;

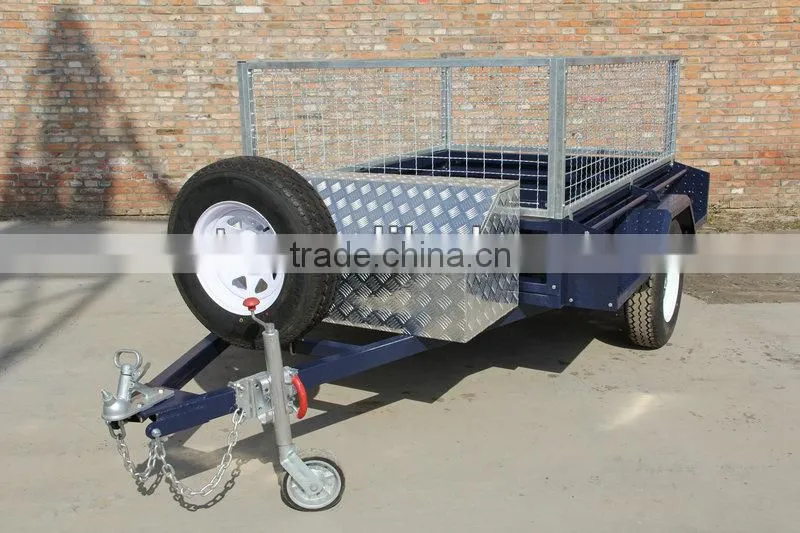

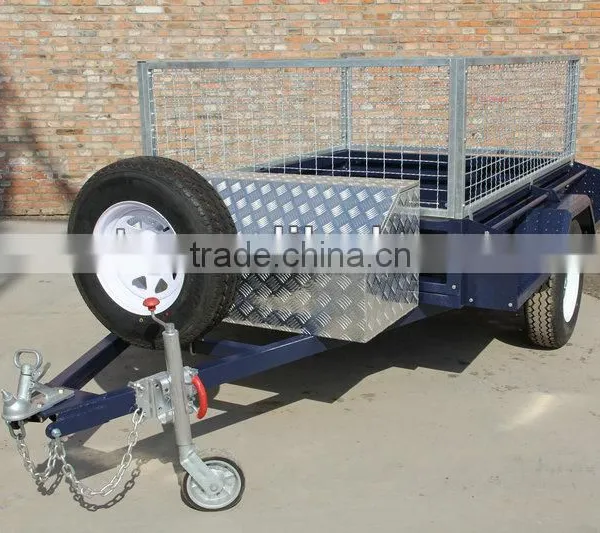

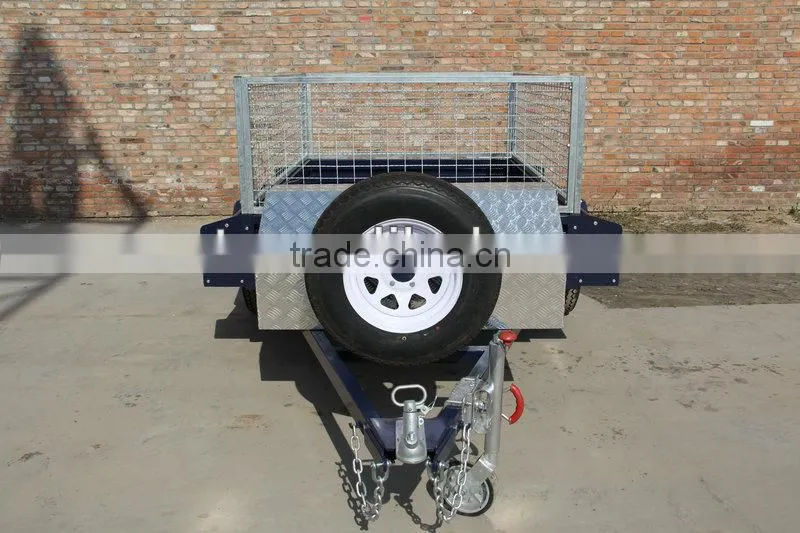

Jockey Wheel: swing up type jockey wheel with solid wheel
Trailer electric set-up

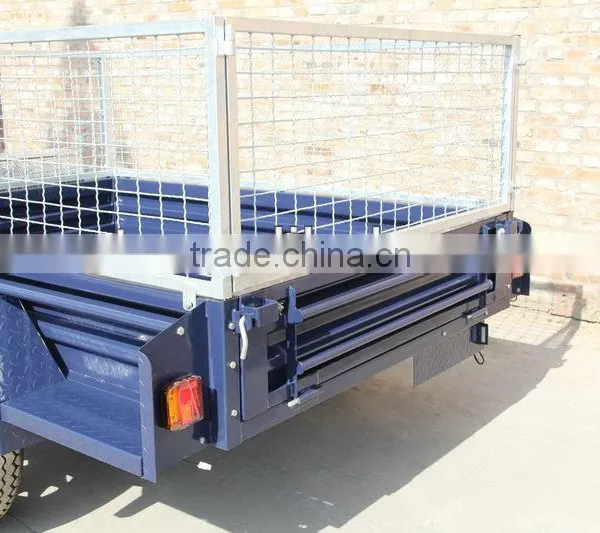

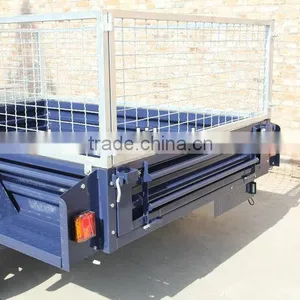

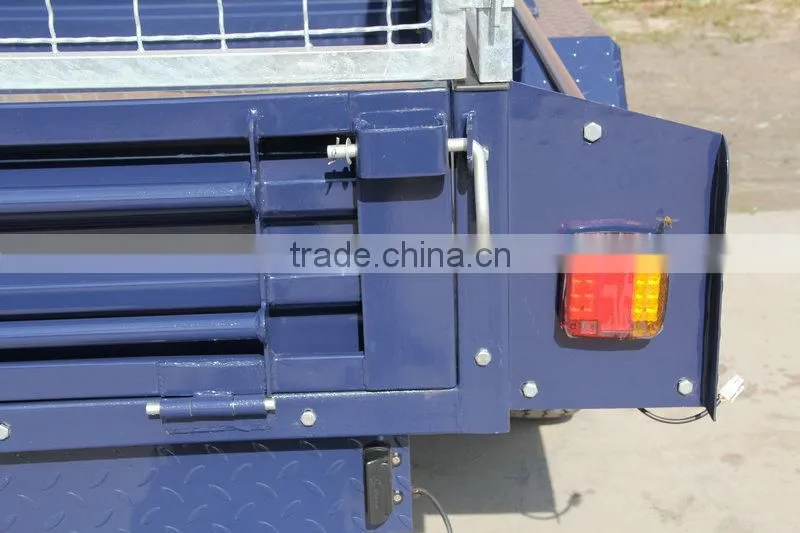

LED tail Lights and number plate lights (ADR approved or with E-mark)
7-pin plug: flat or round plugs available for choice
Wire cable: standard 6-core wire cable
