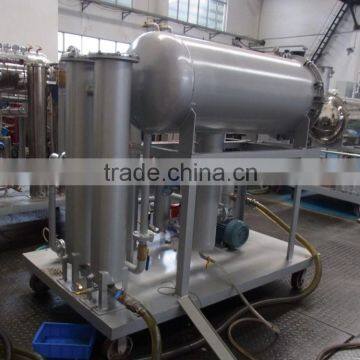

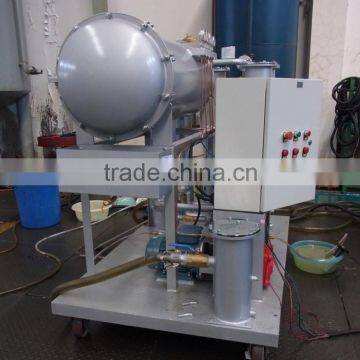

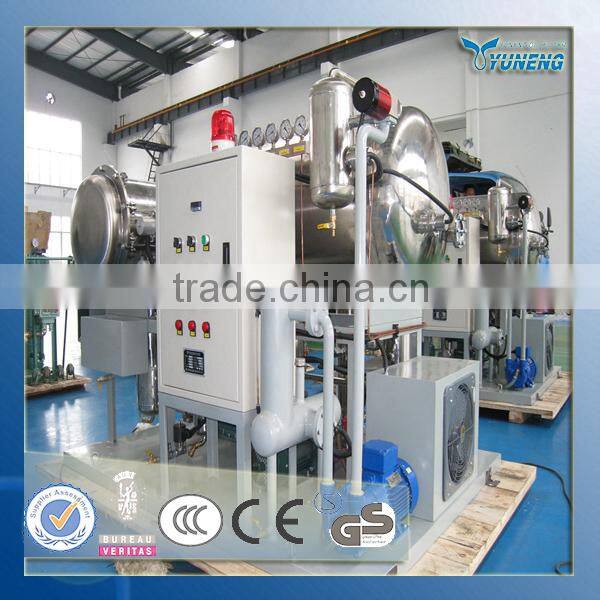

Help CenterWaste Diesel Fuel Oil Filtration and Dehydration Machine
Related Products
-
ZJC-T Series Oily Water Separator MarineUS$ 3,000 - 10,000MOQ: 1 Set -
ZJC-T Series Oil-water Separator Machinery Special for Turbine OilUS$ 3,000 - 10,000MOQ: 1 Set
-
20 Year Experience Portable Lube Oil Purifier SystemUS$ 5,000 - 8,000MOQ: 1 Set
-
20 Year Experience Used Hydraulic Oil Cleaning Oil Filter MachineUS$ 5,000 - 8,000MOQ: 1 Set
-
20 Year Experience Used Hydraulic Oil Water SeparatorUS$ 5,000 - 8,000MOQ: 1 Set
JT Series Fuel oil/diesel oil/turbine oil/lubricant Water Oil Separator purifier is made of a hydrophilic coalescing element and a hydrophobic dehydration element which are configured and optimized in a certain proportion. According to the different physical effects of the water in the oil, the free water drops with big diameters when passing the coalescing element. The dehydration element will then separate the water drops, which will be automatically drained out after sinking in the water holder. The oil and water will thus be separated. Combining automatic emulsion splitting, high-efficiency dehydration and precise filtering, the filter can effectively filter out the water and impurities in the oil. The product is suitable for the online automatic operation of various light oil system, turbine oil systems and lubricating systems. It has obvious effects on the online operation of leakage sets.
II Features of Product
1. The whole equipment designed individually with nice appearance,low power and low cost for operation.
2. The plant is all made of stainless steel without adding antirust so that working uninterruptedly.
3. The oil-water interfacial apparatus and automatic drained valve could offer exactly detached water level and drain water automatic when it accumulated condign capacity.
4. Electric system control with PLC (touch screen) which could show working condition and operation of all parts clearly. It also can monitor equipments,automatic control and protect stopping machine. It could use of the equipment operation online without human.
5. Adopting the special oil pump made in Germany that have good airproof,low noise and long life time.
6. Multilayer filtration including coarse filter,protecting filter,nice filer are all imported from Europe and U.S.A. The effect of control impurities is excellent.
III JT Series Used Turbine/Insulating Water Oil Separator purifier
|
Item |
Parameter |
Type Unit |
JT-50 |
JT-100 |
JT-150 |
JT-200 |
|
|
Technical Parameter |
Flow Rate |
L/MIN |
50 |
100 |
150 |
200 |
|
|
Working Pressure |
Mpa |
≤0.5 |
|||||
|
Temperature Range |
°C |
45-65 |
|||||
|
Power Supply |
|
50Hz 380V 3-Phase 4-Wire (or as requested) |
|||||
|
Total Power |
KW |
1.5 |
3 |
||||
|
Inlet/Outlet Diameter |
mm |
32 |
38 |
45 |
50 |
||
|
Size |
Length |
mm |
1500 |
1500 |
1600 |
1650 |
|
|
Width |
mm |
1000 |
1050 |
1200 |
1250 |
||
|
Height |
mm |
1400 |
1400 |
1500 |
1600 |
||
|
Weight |
Kg |
450 |
500 |
600 |
700 |
||
|
Oil Treatment Index |
Water Content |
ppm |
≤100 |
||||
|
Kinematic Viscosity |
mm2/s |
≤20% in comparison to the original bias value of new oil |
|||||
|
Demulsibility |
min |
≤15 |
|||||
|
Filtering Accuracy |
µm |
≤5 |
|||||
|
Cleanness |
NAS |
Grade 5-8 |
|||||
|
Oil Appearance |
|
Transparence |
|||||
