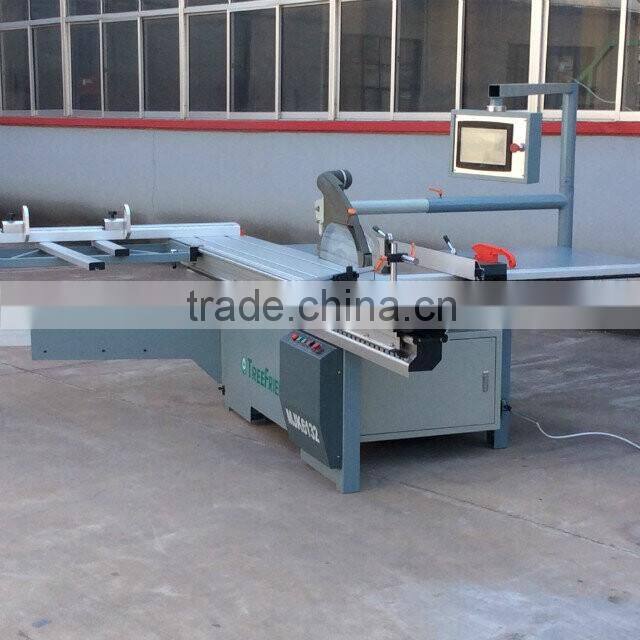

Automic Sliding Table Saw/panel Cutting Machine/45-90 Degree Tilting 160515

Name: Automic Sliding Table Saw/panel Cutting Machine/45-90 Degree Tilting 160515
Brand: Treefriend
SKU: 103906663
Availability: InStock

Automic Sliding Table Saw/panel Cutting Machine/45-90 Degree Tilting 160515 thumbnail-1

Automic Sliding Table Saw/panel Cutting Machine/45-90 Degree Tilting 160515 photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Table Panel Saw

Use:

Woodworking

Contact Supplier Request Quote Chat Now

Qingdao Yongjia Textile Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Table Panel Saw

Use Woodworking

Style Horizontal

Place of Origin Shandong, China

Brand Name Treefriend

Model Number MJK6132

Usage wood

Voltage 380V

Power(W) 5.5

Dimension(L*W*H) 3372*3218*976

Weight 950kg

Certification Iso9001

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Product introduction:

This machine is according to customer requirements

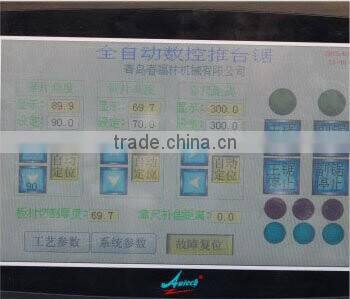

Eye-level control panel:

All basic function operations are done by the eye-level control panel and all data are easyily visible.The panel can be swayed to any side with great ease and this dies not effect orther operations.The main saw cutting blade and sliding board saddle are adjusted electrically to customers' satisfaction.

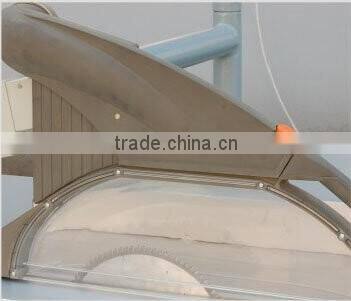

Dust-absorbing hood:

The Treefriend dust-absorbing hood is convincing with its optimized streamling dynamic structure.The dust-absorbing hood is applicable to the maximum saw cutting height of 125mm(irrelevant to the slot cutting system)and can be swayed sideways at will.

Horizontal baffle plate:

With the help of fixed horizontal baffle plate.the precise cutting at the vertical angle can be achieved.All the data about adjustment can be easily visible on the horizontal baffle plate's ruler.The peach-sized baffle plate is tightly attached to the horizontal baffle plate,easily propelled and automatically adjusted within the saw cutting section.

dimensions of sliding table	3200×415mm
maximum length of saw cutting	3200mm
maximum width of saw cutting	1200mm
maximum thickness of saw cutting	90° 105mm
	45° 74mm
diameter of main saw blade	250-350mm
bore diameter	Φ30mm
diameter of auxiliary saw blade	120mm
bore diameter	Φ20mm
speed of main saw spindle	gear one	3200rpm
	gear two	3900rpm
	gear three	4700rpm
speed of auxiliary saw spindle	8400rpm
power of main electric motor	5.5 kw
power of auxiliary electric motor	0.75kw
electronic motor for main saw up and down	voltage	24V
	power	100w
	rotation speed	1800rpm
electronic motor for sliding angle	voltage	24V
	power	100w
	rotation speed	1800rpm
electronic motor for auxiliary saw up and down	voltage	24V
	power	40w
	rotation speed	1800rpm
electronic motor based on model route	400w
outline dimensions	3372×3218×976mm
tilting saw bladle	0-45°
net weight	950kg

This machine is according to customer requirements

Packaging &shipping:

This machine is according to customer requirements

Standard Seaworthy Export Packing

Delivery Detail:30 days after payment

Our services:

This machine is according to customer requirements

.reply your inquiry in 24 working hours.

.Experienced staffs answer all your questions in profession and fluent English.

.Customized design is available OEM&ODM are welcome.

. Prominent and unique solution can be provided to our customer by your our well-trained and professional engineers and staffs.

.Special discount and protection of sales area provided to you distributor.

.Do the best of textile machinery such production like water jet loom,air jet loom and carding machine in China and we have our own raw material processing workshop, it has the absolute competitive advantage on price.

FAQ:

This machine is according to customer requirements

1. Q: Is your factory or foreign trade companies ?

A: We are a factory with our own trading department.

2. Q:How old is your factory is engaged in the textile machinery production ?

A:There are 14 years of experience. We can produce any type you need

3. Q: Are your product quality is reliable ?

A:Our factory regarding doing first the person and go into business as the principle

4. Q:How to get you factory?

A: After arrived at Qingdao airport just 30 minutes of expressway can be reached
