Yuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD Camera

Yuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD Camera thumbnail-1
Yuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD Camera thumbnail-2
Yuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD Camera thumbnail-3
Yuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD Camera thumbnail-4
Yuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD Camera thumbnail-5
Yuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD Camera thumbnail-6
Yuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD Camera photo-1
Yuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD Camera photo-2
Yuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD Camera photo-3
Yuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD Camera photo-4
Yuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD Camera photo-5
Yuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD Camera photo-6
US$ 15 - 1,500 MOQ: 50 Units
Key Specifications
Get Latest Price
Type:
Other
Power:
Battery
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen YKS Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other
Power Battery
Place of Origin Guangdong, China
Model Number VMAR8872

Yuneec Q500  Quadcopter Rc Drone With 12.4 MP 4K HD Camera

Specifications:
TYPHOON Q500 Multicopter
FLIGHT TIME: Up to 25 Minutes
DIMENSIONS: 9.45 in (210mm) x 16.54 in (420mm)

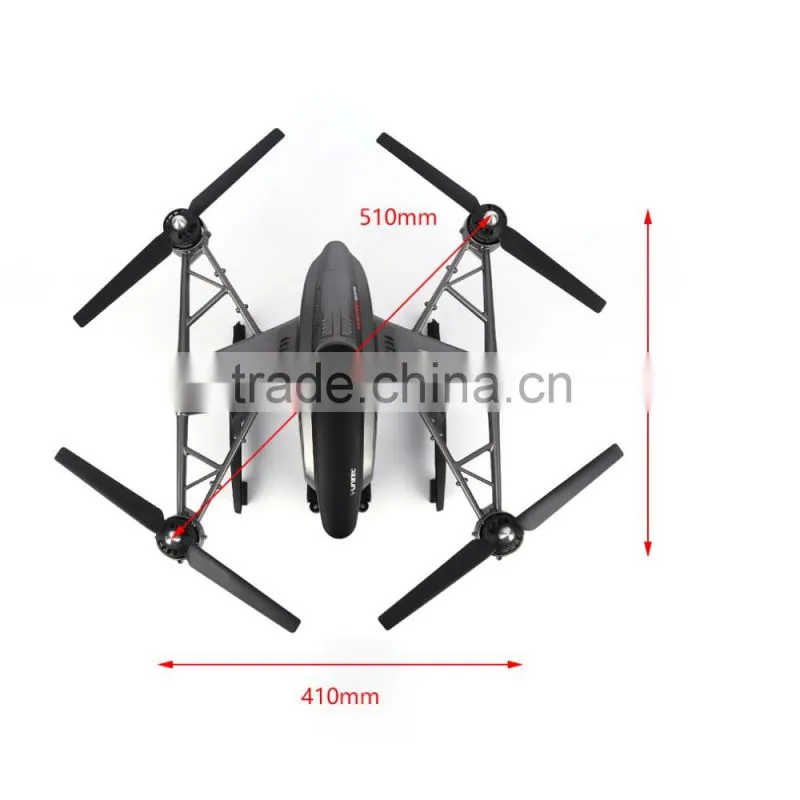

DIAGONAL MOTOR TO MOTOR DISTANCE: 20 in (510mm)
PROPELLER/MAIN ROTOR DIAMETER: 13.0 in (330mm)
WEIGHT WITHOUT BATTERY AND PAYLOAD: 40.0 oz (1130g)
MAXIMUM TAKEOFF WEIGHT WITH CGO3: 60.0 oz (1700g)
BATTERY: 5400mAh 3S 11.1V LiPo (included)
CHARGER: 3S 11.1V LiPo DC Balancing Smart Charger with AC Adapter
(included)
TRANSMITTER: 10-channel 2.4GHz with 5.8GHz video downlink (included)
MAXIMUM FLYING ALTITUDE: Default 400 Feet Above Ground Level (Adjustable via the Q500 GUI)
RADIO CONTROL FREQUENCY BAND: 2.4GHz

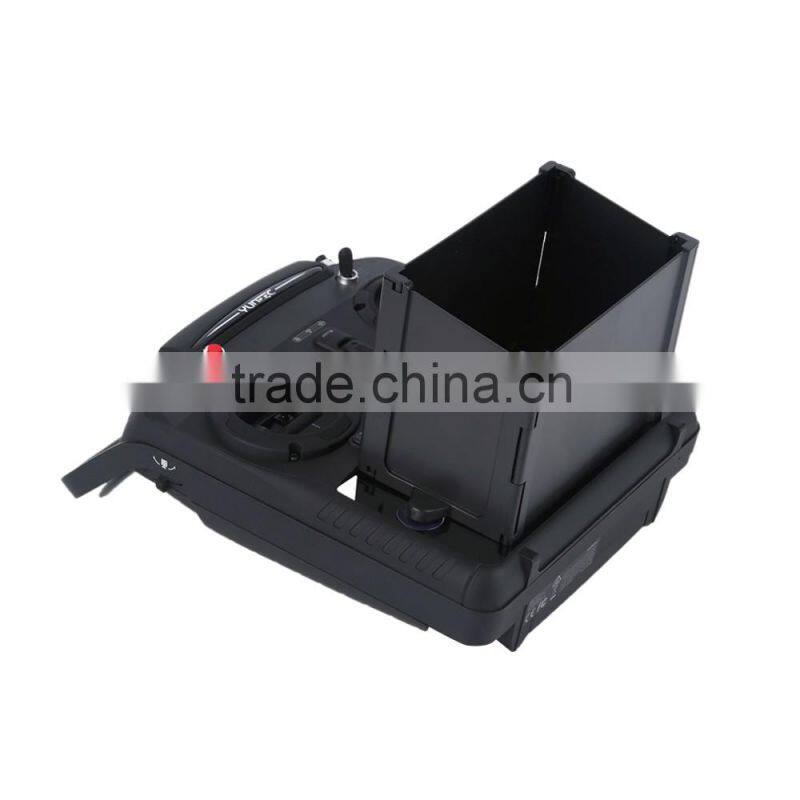

ST10+ Personal Ground Station
NUMBER OF CHANNELS: 10
OPERATING SYSTEM: Android
SCREEN SIZE: 5.5"
SCREEN RESOLUTION: 854 x 480
RADIO CONTROL FREQUENCY BAND: 2.4GHz
CONTROL TRANSMISSION DISTANCE/RANGE (OPTIMUM CONDITIONS): FCC Compliance: Up to 800m (2624.67 ft) / CE Compliance: Up to 400m (1312.34 ft)
ROBUST RADIO CONTROL MODULATION: Yuneec Protocol
VIDEO LINK FREQUENCY BAND: 5.8GHz
FLIGHT SYSTEMS TELEMETRY DATA ON SCREEN DISPLAY (OSD): Yes
TACTILE AND AUDIBLE FEEDBACK: Yes
BUILT-IN LIPO BATTERY VOLTAGE / CAPACITY: 3.6V/5200mAh 18.72Wh

CGO3 Gimbal Camera
DIMENSION: 4.2x5.0x3.1in (106x128x80mm)
WEIGHT: 6.9oz (195g)
SENSOR: 1/2.3" CMOS
EFFECTIVE PIXELS: 12.4 Megapixels
CAMERA LENS: 0.6in (14mm)/F2.8 1.4in/35mm No Distortion
VIDEO FOV: 115 Degree
ELECTRONIC SHUTTER: 1/30 - 1/8000
WORKING TEMPERATURE: 0°C-40°C
POWER CONSUMPTION: 10W
VIDEO TRANSMISSION RANGE: Up to 400m (1312ft)
TRANSMISSION SYSTEM: 5.2Ghz - 5.8Ghz
VIDEO UHD: 4K at 30FPS
FULL HD: 1080p at 24/25/30/48/50/60/120FPS
HD: 720p at 24/25/30/48/50/60/120FPS
MICROPHONE: Yes

CGO Steadygrip
DIMENSIONS: 8.78 in (223mm) x 2.95 in (75mm) x 7.13 in (181mm)
WEIGHT (WITHOUT CAMERA/GIMBAL): 13.9oz (395g)
COMPATIBLE CAMERA: CGO2 Series / GoPro Hero4 Black with GB203 Gimbal
Adapter plug: US

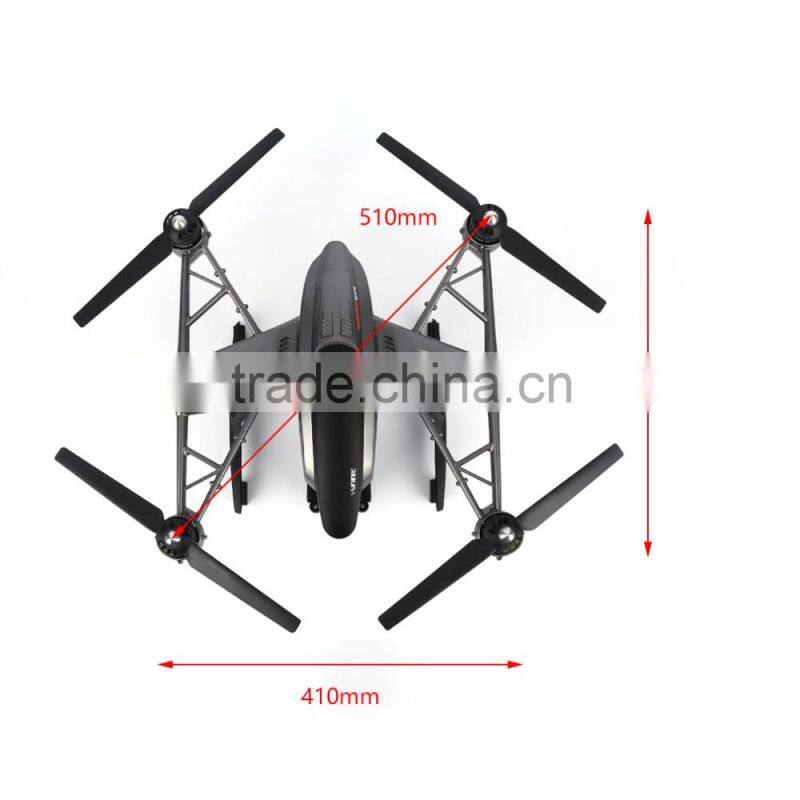

Wheelbase: 510mm

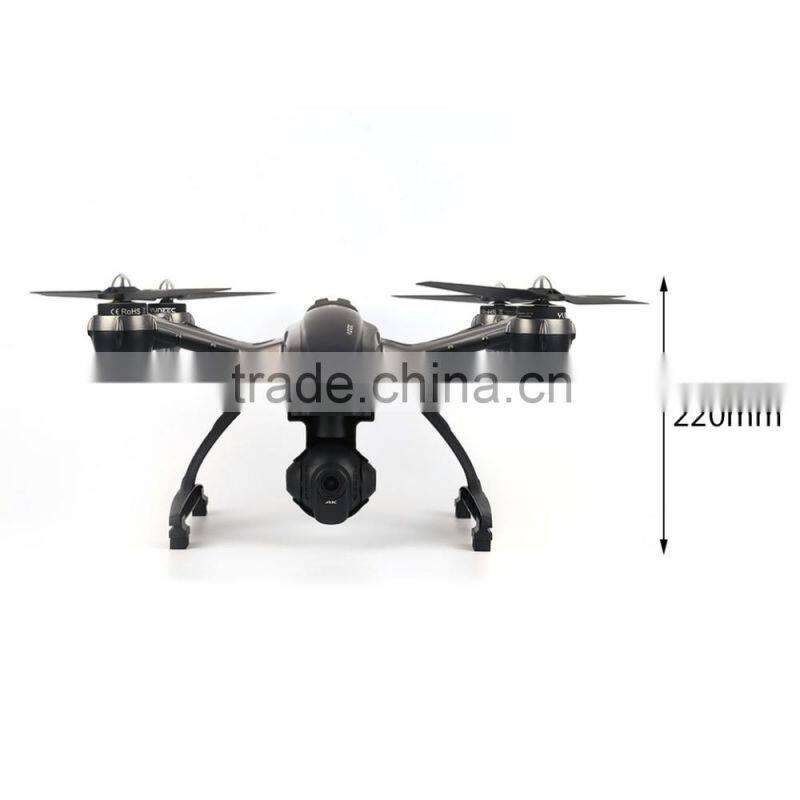

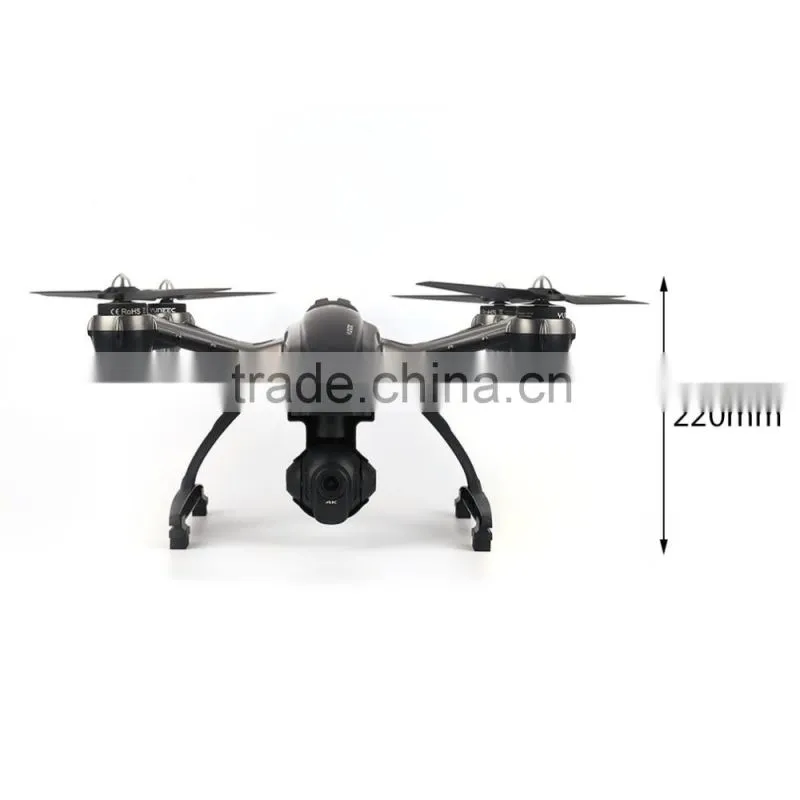

Flight size: 410 x 410x 220mm
Package size: 580 x 470 x 315mm
Net weight: 4190g
Package weight: 11317g


How to use:
1. installed phone CGO3 software After the bottom
2. head mounted 8 5 batteries power;
3. wifi phone search CGO3, password 1234567890;
4. after the connection is successful, open the phone CGO3 software, click into the Camera, PTZ operations can be carried out hand;
5.Mode key functions: green light for the PTZ auto-mode; green light flashes as PTZ control up and down through the pulley rotation
6.Camera camera and video features by the mobile phone APP control (to change the resolution, environmental effects)

Yuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD CameraYuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD CameraYuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD CameraYuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD CameraYuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD CameraYuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD CameraYuneec Q500 FPV Quadcopter Rc Drone With 12.4 MP 4K HD Camera

Package included:
1 x Q500 Multicopter
1 x CGO3-GB Camera and 3-Axis Gimbal
1 x ST10+ Personal Ground Station / Transmitter
1 x ST10+ LCD screen sun shade
1 x USB to usb Cable
1 x YUNA100 USB Interface / Programmer
2 x 5400mAh LiPo Flight Battery
1 x 3S 11.1V LiPo Balancing Connector Lead
1 x SC 3500-3 DC LiPo Balancing Charger
1 x DC automobile accessory socket
1 x AC to DC adapter supply
1 x 8 GB memory Card with SD Adapter
1 x Motor Holder / Prop Installation Tool
2 set of extra Propellers
1x Steady Grip for 4k Camera

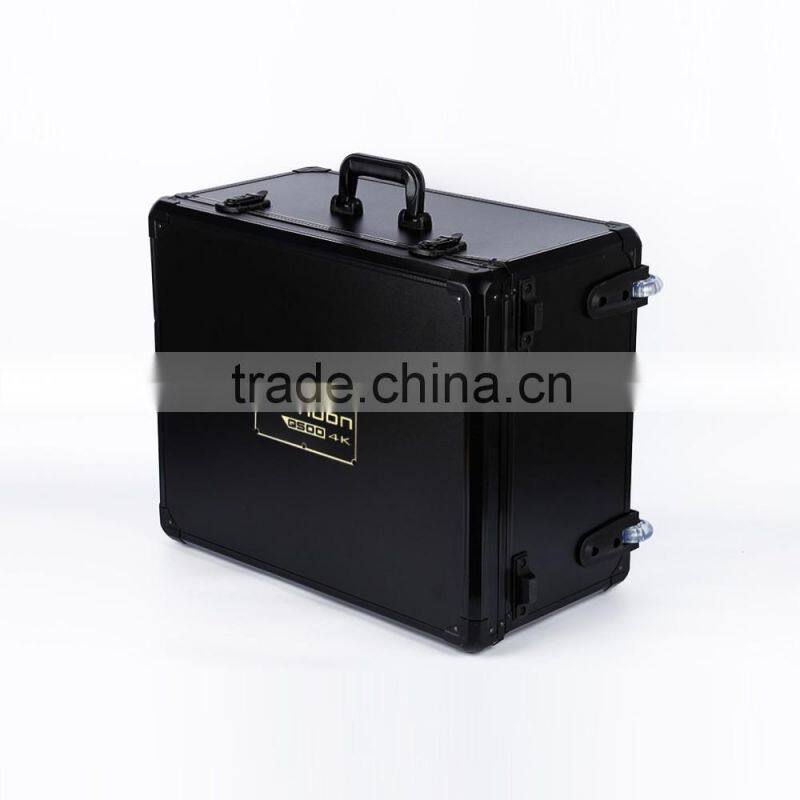

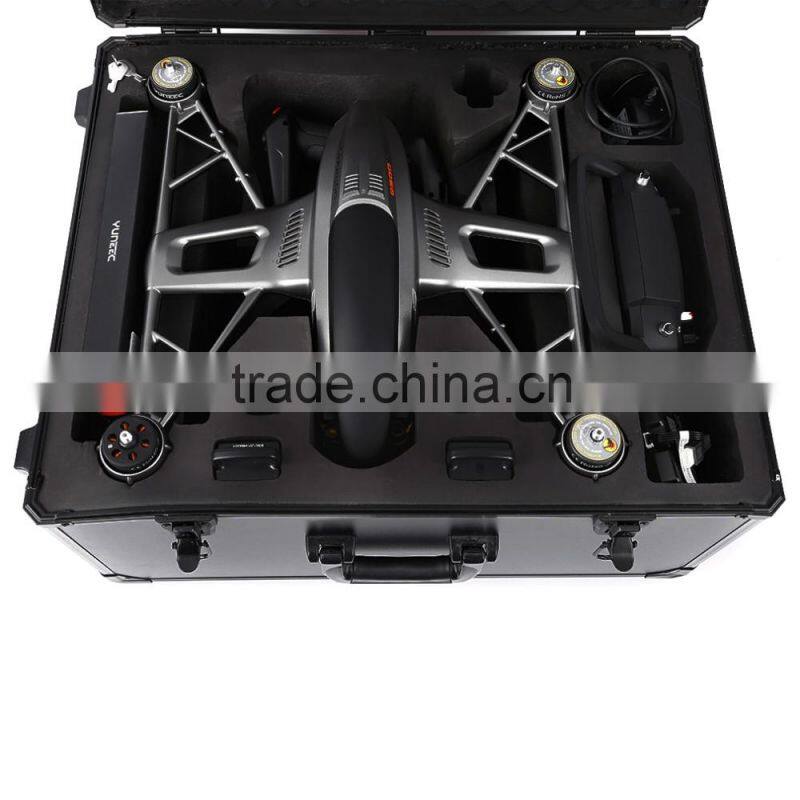

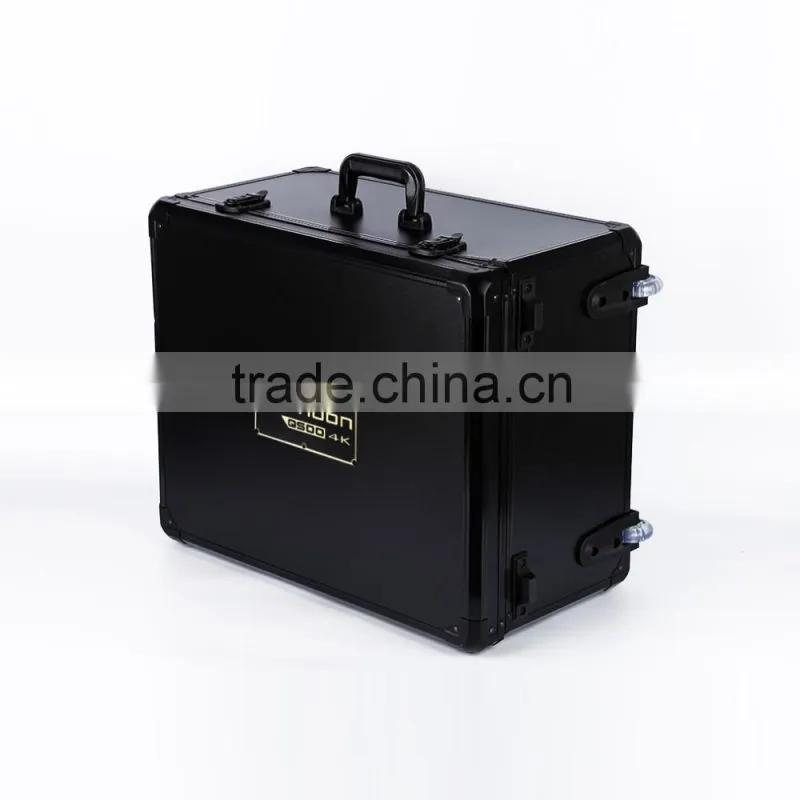

1 x Aluminum Hardshell Trolley Carry Case for Q500
1 x Limited 6-Month Warranty
