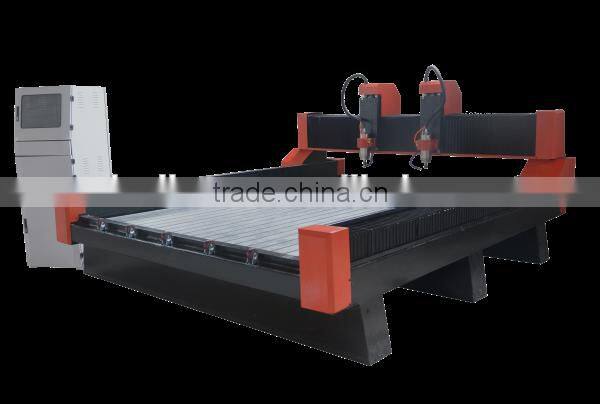

Multi Seperate Heads Stone Carving Cnc Router With Dust Collector

Multi Seperate Heads Stone Carving Cnc Router With Dust Collector thumbnail-1
Multi Seperate Heads Stone Carving Cnc Router With Dust Collector photo-1
US$ 4000.00 - 4000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
CNC Router
Use:
Marble
Contact Supplier Request Quote Chat Now
Jinan Missile CNC Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type CNC Router
Use Marble
Production Capacity 150sets/month
Place of Origin Shandong, China
Brand Name MISSILE
Model Number 2025
Voltage 380V/50Hz
Power(W) 5.5KW
Dimension(L*W*H) 2000x2500x250mm
Weight 2000KG
Certification CE Certificate
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

    multi seperate heads stone carving cnc router with dust collector

Product Description

FEATURES:

1. multi seperate heads stone carving cnc router with dust collector  IS SPECIALLY DESIGNED FOR ALL TYPE OF STONE CNC ROUTER.

2.STRUCTURE:THICK SQUARE PIPE WELDED STUCTURES,WHICH STRENTHEN HOLE LATHE BED STABLILITY.

3.TRANSMISSION: X AND Y AXIS HELICAL RACK .Y AXIS TWO SIDES DRIVING,FAST SPEED,POWERFUL.

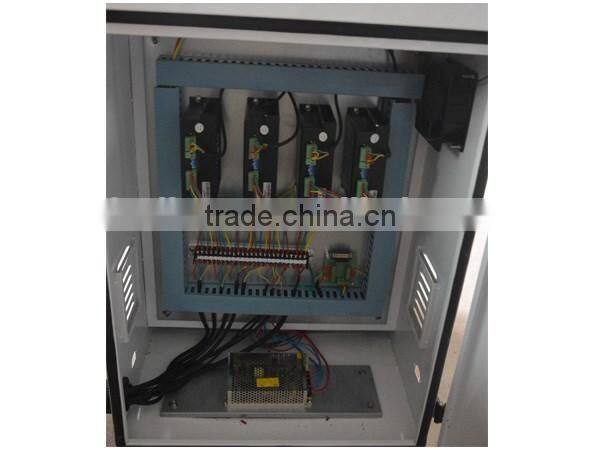

4.DRIVE SYSTEM: LEADSHINE STEPPER DRIVE WITH HIGH-SPEED STEPPER MOTORS,IT IS BETTER FOR ALL KINDS OF STONE.

5.CONTROL SYSTEM: NC STUDIO SYSTEM.

6.OPTIONAL:WATE-COOLING SPINDLE,DSP HANDLING CONTROL SYSTEM,SERVO MOTOR,CUSTOMIZED MODEL.

Paramater



X,Y,Z Working Area   2000x2500x250mm
X,Y,Z Traveling Positioning Accuracy ±0.05mm
X,Y,Z Repositioning Accuracy ±0.05mm

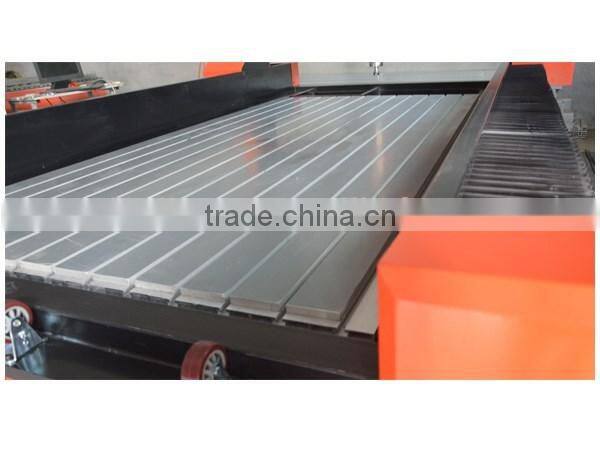

Table Surface

Aluminum  T-slot Table
Frame Square pipe Welded Structure
X, Y axis transmission Rack and Pinion gear
Z axis transmission Ball Screw
Max. Traveling speed   25000mm/min
  Max. Working speed   15000mm/min
  Rail Configuration   20 square rail
  Spindle Power

Water-cooling 5.5kw

(Opitioinal 3.0/4.5/7.5kw) spindle

  Spindle rotationg Speed 0-24000RPM
  Drive Motors Stepper System (Opitional Yaskawa/ Panasonic Servo motors)
  Working Voltage    AC380V/50Hz/3PH
  Operating System Ncstudio system(Option: DSP)
  Command Language G code, u00, mmg, PLT, HPG
  Software Compatibility   Type3,Wentai,Artcut
  Packing

  Wooden case

  N.W.

  2000KG

  G.W.

  2200KG





 multi seperate heads stone carving cnc router with dust collector

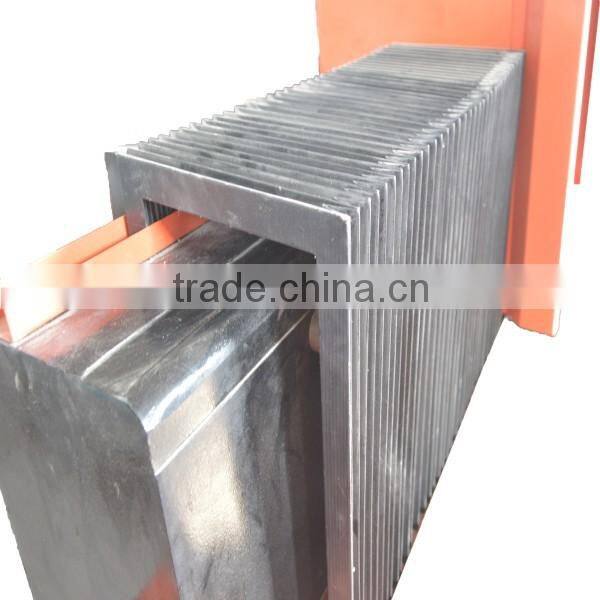

Detailed Images

 multi seperate heads stone carving cnc router with dust collectormulti seperate heads stone carving cnc router with dust collectormulti seperate heads stone carving cnc router with dust collectormulti seperate heads stone carving cnc router with dust collector



APPLICABL FIELD:

WALL PAINTING, MARBLE,GRANITE,TOMBSTONE CERAMIC TILE ETC THESE STONE LETTER AND PATTEN ENGRAVING AND RELIEF ENGRAVING.ALSO USED FOR COPPER,ALUMINUM CUTTINGS.

Sample pictures

multi seperate heads stone carving cnc router with dust collector

Packing

 multi seperate heads stone carving cnc router with dust collectormulti seperate heads stone carving cnc router with dust collectormulti seperate heads stone carving cnc router with dust collector



SERVICES







Guarantee & Aftersales Service:

1.Guarantee for one year

2.24-hour technical support by email or calling

3.User-friendly English manual for machine using and maintaining

4.Free technician training for large customers.



FAQ

 Questions and answer:

Q1.how to get the most suitable machine and best price

please tell the  material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2: Do you have the manual of machine.

Yes,we have



Q3.If we donot know how to use the machine,can you teach us? Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

Q4.How about your after-sales service?

we offer you 24 hours service phone,skype or MSN.



Q5.How about your guarantee period?

one year and during the time,if you have  any questions ,we will solve it for free.
