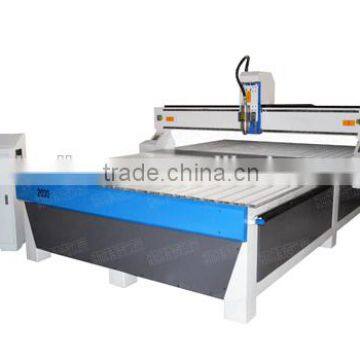

20 square rail 220V stepper system 2030 cnc router for advertising material
Features:
1.Structure: 20 square rail 220V stepper system 2030 cnc router for advertising material is thick square tube welded bed, strict control of bed deformation rate.

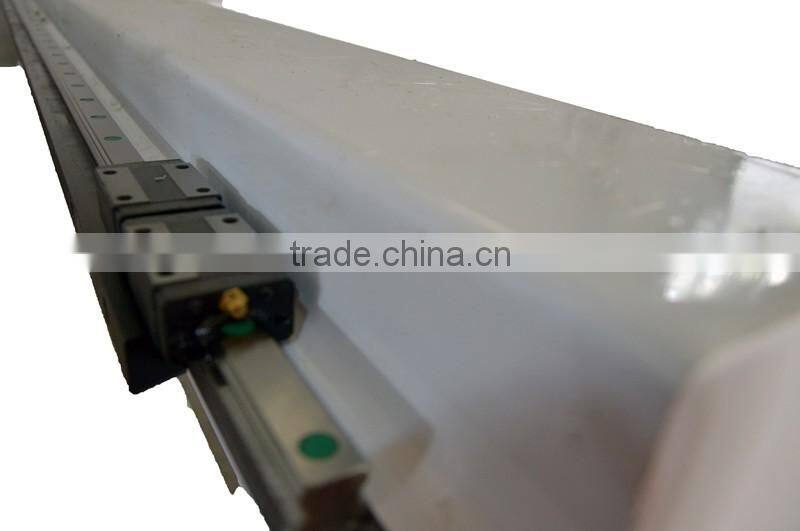

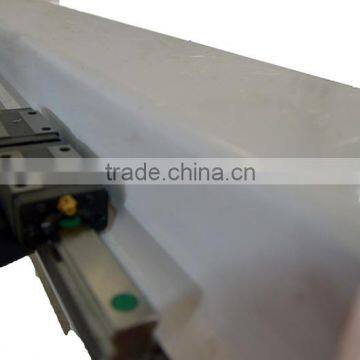

2.Transmission: Y-axis helical rack,fast speed. Three axises square linear rails, high precision, wear resistance, long life.

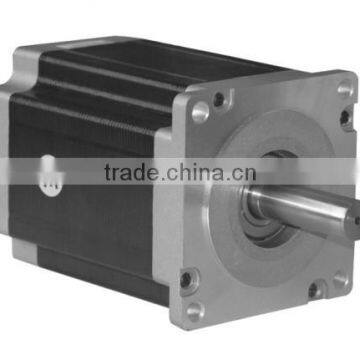

3.Drive system: 20 square rail 220V stepper system 2030 cnc router for advertising material is Leader shine stepper driver with high-speed stepper motor, it is good for the common materials’engraving and cutting in advertising industry.

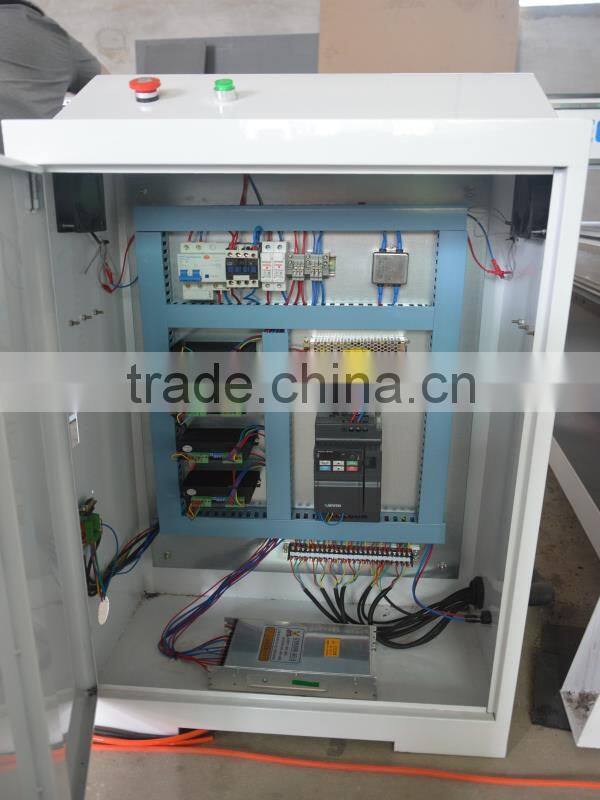

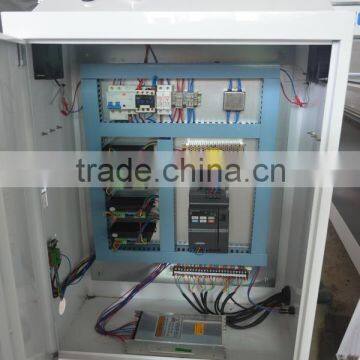

4.Control system: Ncstudio systems which connect with computer directly.
5.Optional: air-cooled spindle, DSP handset control system, custom-size models.
6.The machine Features: 20 square rail 220V stepper system 2030 cnc router for advertising material is the most popular one in advertising industry. It is a model combining practicality and economy, with highly cost-effective.
| X,Y,Z Working Area | 2000x3000x200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
| X,Y,Z Repositioning Accuracy | ±0.05mm |
| Table Surface | Aluminum T-slot Table |
| Frame | Square pipe Welded Structure |
| X, Y axis transmission | Rack and Pinion gear |

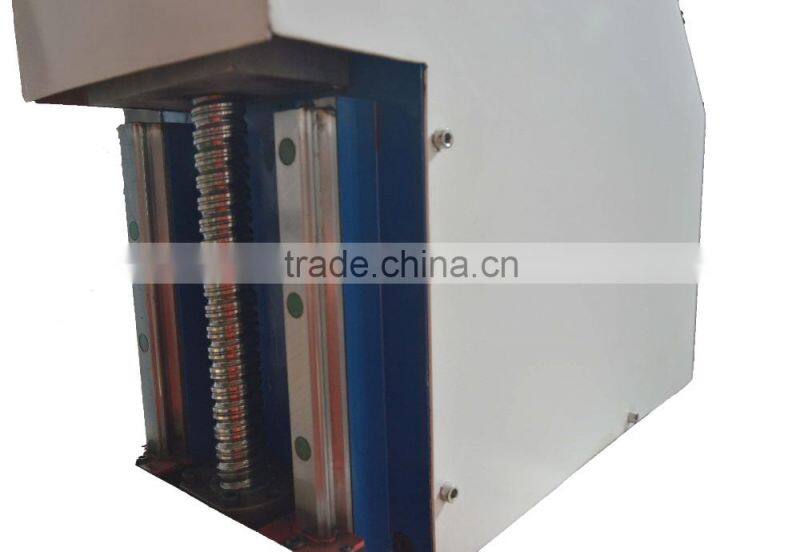

| Z axis transmission | Ball Screw |
| Max. Traveling speed | 25000mm/min |
| Max. Working speed | 15000mm/min |
| Rail Configuration | 20 square rail |
| Spindle Power |
Water-cooling 3kw (opitioinal air-cooling spindle) |
| Spindle rotationg Speed | 0-24000RPM |
| Drive Motors | Stepper System |
| Working Voltage | AC220V/50HZ (Opition: AC380V/50Hz) |
| Operating System | Ncstudio system(Option: DSP) |
| Command Language | G code, u00, mmg, PLT, HPG |
| Software Compatibility | Type3 or Wentai (ArtCUT), or ArtCAM |
| Packing |
Wooden case , L3700mmW2700mmH1900mm |
| N.W. | 1300KG |
| G.W. | 1700KG |
Main applications:
Acrylic, PVC board, MDF board and other board’s processing, Wave board production, various types of artificial board shaped cutting, LED, neon channel literally cutting, light box molding.
Guarantee & Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
FAQ
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us? Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
WELCOME TO VISIT OUR FACTORY !!!
