1,The motor is high-efficiency and power-saving whose efficiency can achieve a primary energy consumption(IE4) standard.
2,The system adopts vector control technology, so the starting torque is higher, the dynamic response is faster and the overload ability is stronger.
3,In the case of the multi machine drive, it can achieve power balance automatically by the master-slave control.
4,Realize the real maintenance free by getting rid of the reducer,mechanical soft starting devices and other intermediate link.
5,The motor speed and other technical parameters can be designed separately according to the user needs.
|
Permanent-magnet Motor |
Traditional Motor |
Energy consumption level |
IE4 |
IE1 |
Motor efficiency |
0.96 |
0.89 |
Efficiency of drive system |
0.96 |
0.76 |
|
Electricity charge for 3-year operation |
About $2.04 million |
About $2.55 million |
Maintenance cost |
0 |
About $77328 |
Total cost to be saved |
US$588015 will be saved with Permanent-magnet drive system |
|

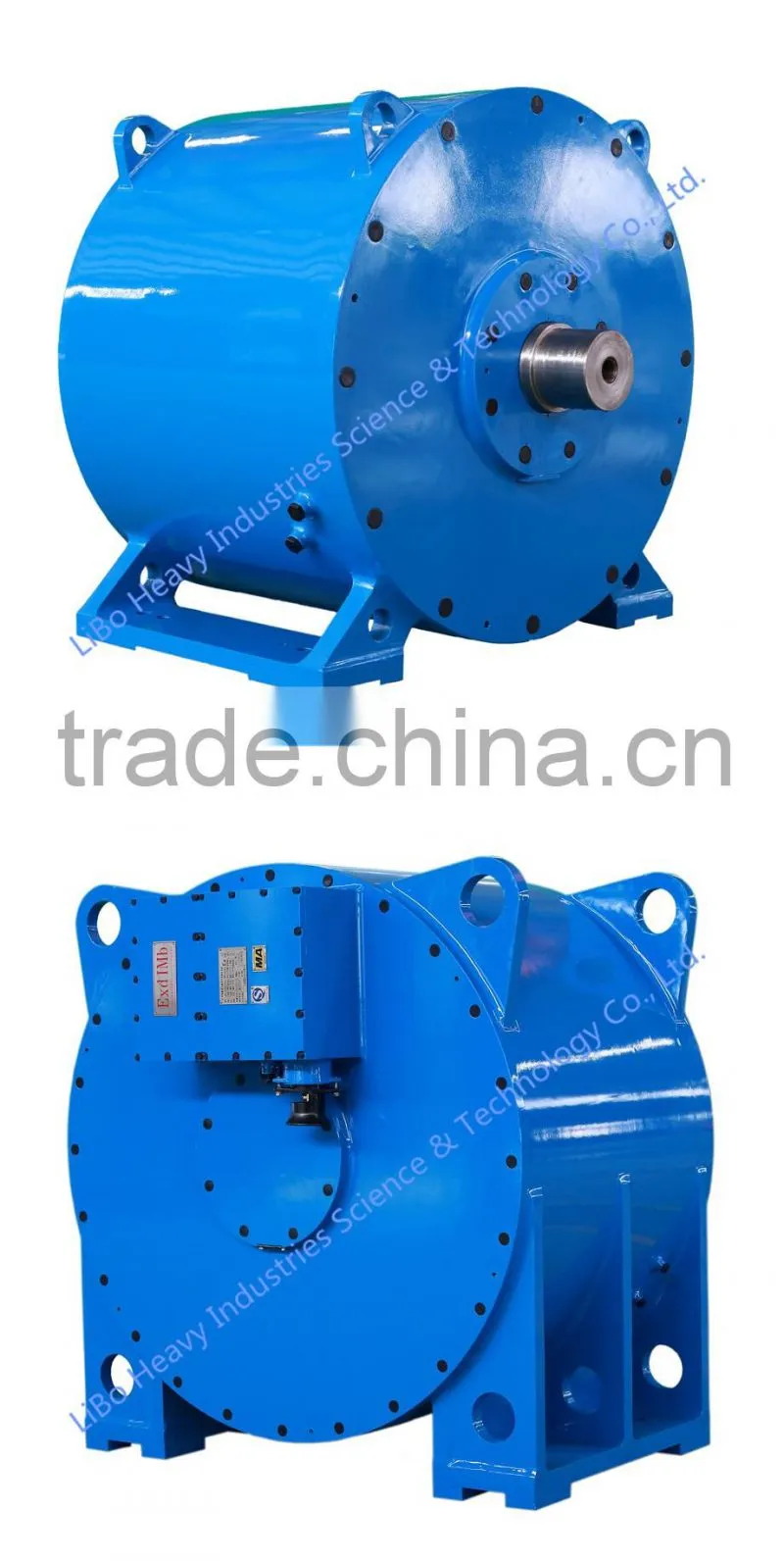

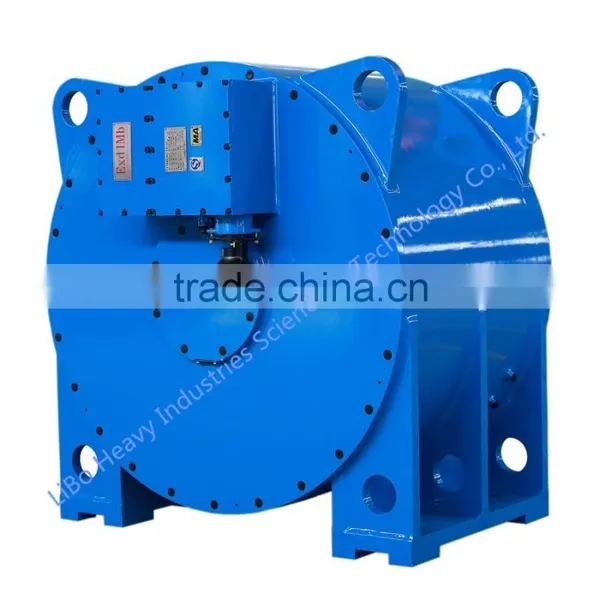

Overview
Our Factory

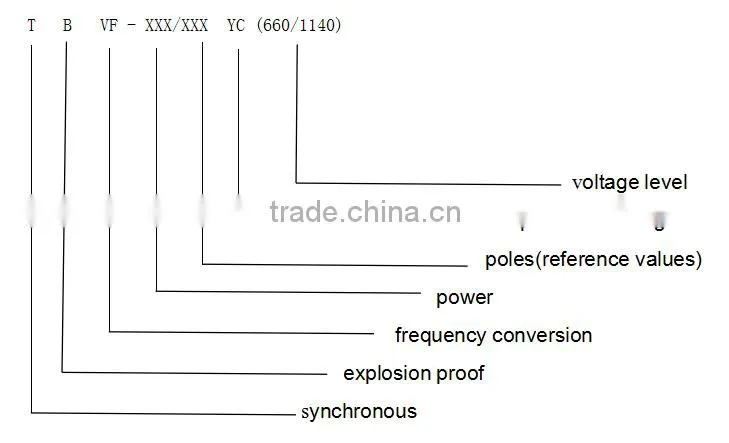

Specification model explanation
Application environment and other motor parameters explaination
|
Explosive-proof type |
Mine-used flameproof; explosion-proof mark:ExdIMb |
Shell protection grade |
I P55 |
Cooling mode |
IC46W(water cooling) |
Working system |
Continuous duty(S1) |
Temperature tolerance level of the insulation material |
H |
Using ambient temperature |
0℃~45℃ |

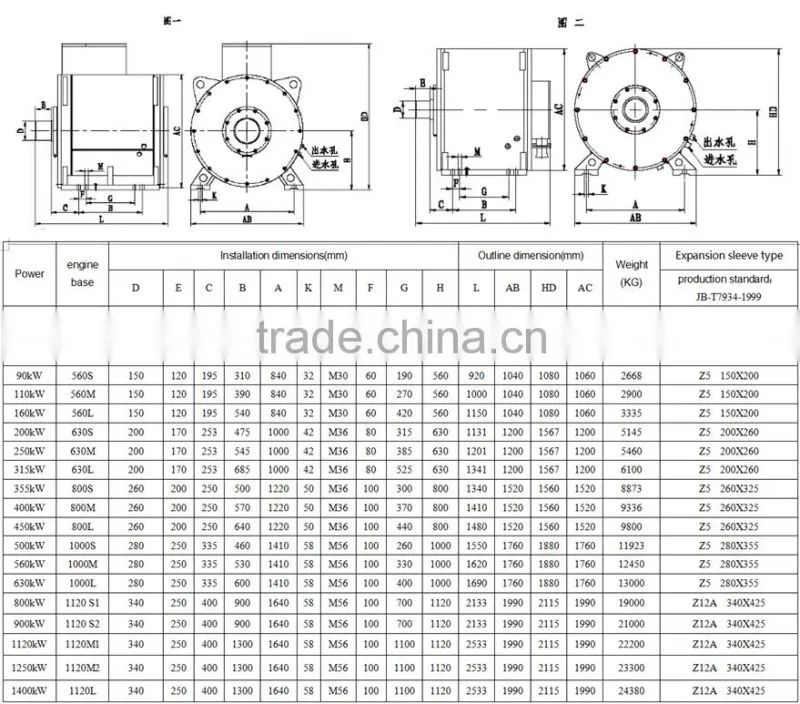

Technical parameters
Remarks: 1: The above parameters are standard motor parameters; the parameters may change when the users usage occasion is different and you can view the specific parameters on the incidental performance parameters table of the permanent magnet motor.
2: When the motor rated speed is 60r/min or 90r/min,some of the motor performance parameters are shown like the above table
Product installation
Our Certificates

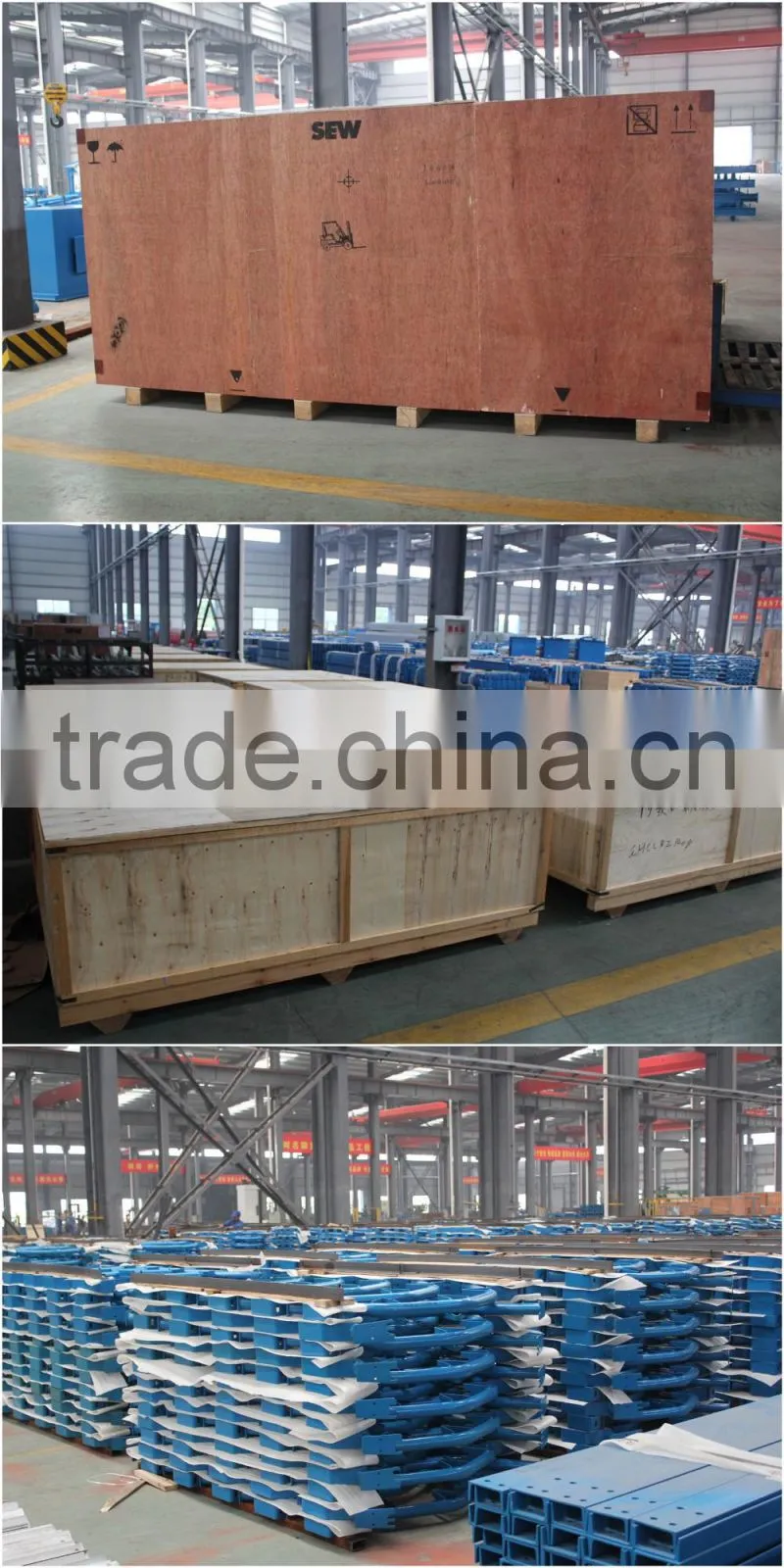

Packaging and transportation
1.Packing:
We all take standard export packing cases made of exemption plates that thickness of the composite plates are about the 9mm to 15mm according with the export requirements.Of course,We also can take the wooden cases made of solid wood with fumigation and supply the Inspection Certificate of Fumigation.
2.Freight:
(1)Shipping:We cooperate with good international ship agency to ensure the interests of the buyer that the buyer can receive the goods in time.We usually accept liner shipping so that we should contact duly and co-operate on the freight peak to solve those problems of transportation.If you have any other requirements,Please tell us and consult with it.
(2)Express and Air transport:We also move goods by express and air transport if you really have emergency demand for these goods .But we can’t take the resulting costs and the scale of the goods must be small.
(3)International multimodal transport:The qualified MTO takes the transportation of the goods to make sure to arrive in terminal on time.We use container transport in general with the exception of special circumstances.
Company Introducation
LIBO HEAVY INDUSTRY SCIENCE&TECHNOLOGY CO.,Ltd. is located at the foot of Mount Tai, as the state-level High-Tech Enterprise with integrated system of Production, Study and Research.We are specialized in the development and manufacture of complete sets and key components for bulk material handling, especially belt conveyors and stacker-reclaimer used in round stockyard.With the registered capital of ¥119.6millions, we are one of the largest companies in the bulk materials handling industry, which owns high-level technical equipment and comprehensive strength and offer full service for products
our partner
LBHI is known all over the world by its high-performance product,higher scientific and environmentally friendly mode of production.These characteristics make LBHI be the quality supplier and reliable business partners to many company in the world.
