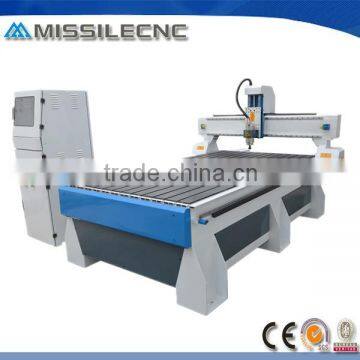

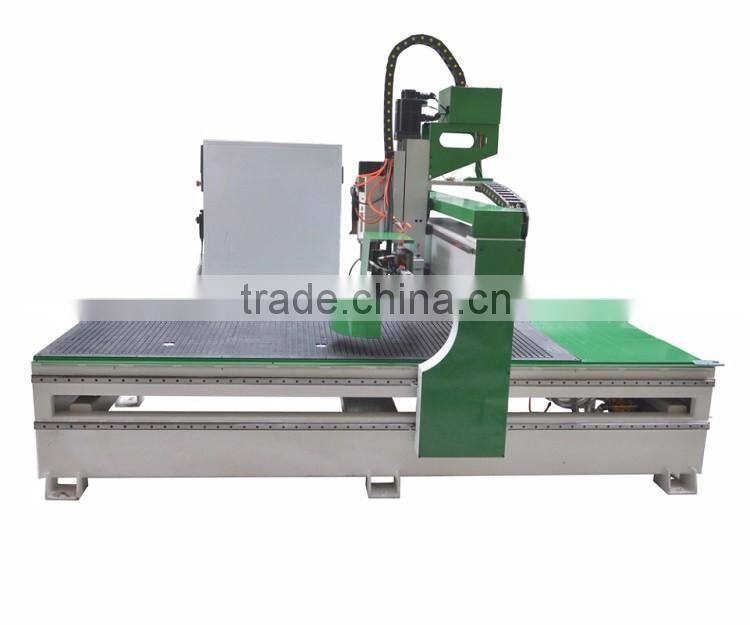

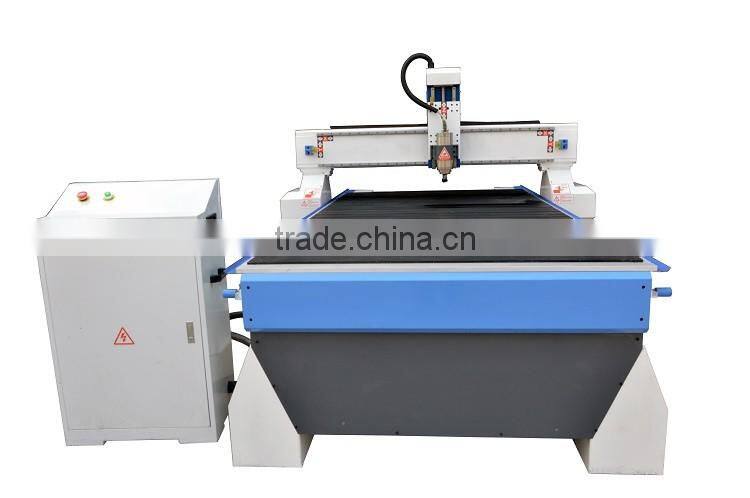

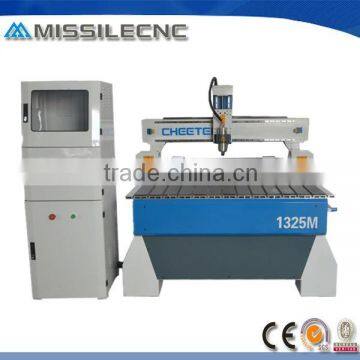

Woodworking Engraving Carving Machine 1325 CNC Router for Sales
The Woodworking Engraving Carving Machine 1325 CNC Router for Sales is one of the most polular product of woodworking CNC machine.
1. Woodworking & Advertising industry machinery .
2. China 20 Rail from Taiwan & Ball screw for Z axis
3. Aluminum T-slot Working table (option : Vacuum working table )
4. Ncstudio Control System with connection to computer , easy to control and know the operation path.
5. Stepper motor ( option : Servo motor )
Technical parameters of Woodworking Engraving Carving Machine 1325 CNC Router :
X,Y,Z Working Area |
1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy |
±0.05mm |
X,Y,Z Repositioning Accuracy |
±0.05mm |
Table Surface |
Aluminum T-slot Table (Opitional: Vacuum table) |
Frame |
Square pipe Welded Structure |
X, Y axis transmission |
Rack and Pinion gear |
Z axis transmission |
Ball Screw |
Max. Traveling speed |
25000mm/min |
Max. Working speed |
15000mm/min |
Rail Configuration |
20 square rail |
Spindle Power |
Water-cooling 3.0kw (Opitioinal air-cooling spindle) |
Spindle rotationg Speed |
0-24000RPM |
Drive Motors |
Stepper System (Opitional YASKAWA sevo) |
Working Voltage |
AC380V/50Hz (Opitional: AC220V/50HZ ) |
Operating System |
Ncstudio system (Opitional: DSP) |
Command Language |
G code, u00, mmg, PLT, HPG |
Software Compatibility |
Type3 or Wentai (ArtCUT), or ArtCAM |
Packing |
Wooden case , L3200mmW2000mmH1900mm |
N.W. |
1200KG |

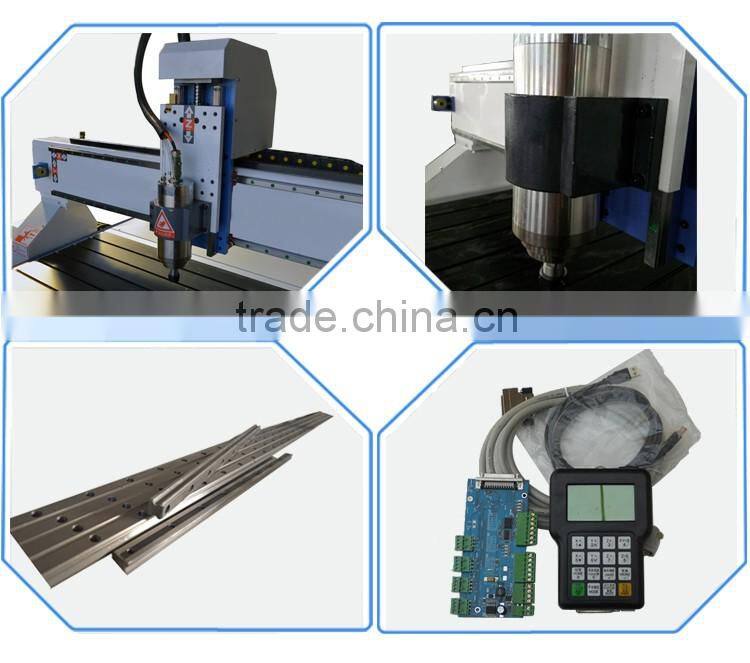

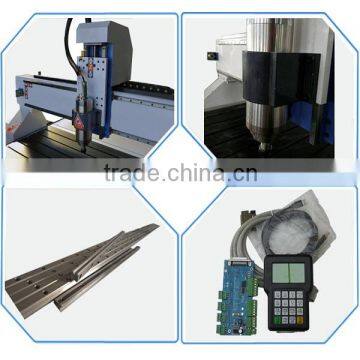

Features of Woodworking Engraving Carving Machine 1325 CNC Router :
1.Structure: thick square tube welded bed, the overall aging treatment, strict control of bed deformation rate.
2.Transmission: Y-axis helical rack, fast speed.
3.Drive system: Leader shine stepper driver with high-speed stepper motor, it is good for engraving and cutting MDF, wood, acrylic and other furniture and advertising material.
4.Control system: Weihong Nc-studio operating systems which connect with computer directly.
5.Optional: air-cooled or water-cooled spindle,vacuum table or aluminum T-Slot table, DSP handset control system, servo motor, custom-size models.
6.Features: The Woodworking Engraving Carving Machine 1325 CNC Router is the standard woodworking engraving machine. It completely satisfies the engraving and cutting in woodworking industry.
Main applications of Woodworking Engraving Carving Machine 1325 CNC Router :
1.Furniture industry: wooden doors, cabinet doors, board, office, solid wood furniture
2.Other wood products industry: speakers, game consoles cabinets, computer tables, sewing machine table, musical instruments, etc.
3.Board processing industry: insulation piece, plastic chemical products; PCB; fast train inside body, bowling tracks, stairs; compact grade laminate, epoxy resin, ABS, PP, PE and other cementitious mixtures’s milling process
4..Decoration industry: folding screen, wave plates, large wall, advertising boards, signs and logo’s processing.
Woodworking Engraving Carving Machine 1325 CNC Router Packing: strong wooden package
Shipping: 7-20 working days after confirming the order
MISSILECNC is a professional CNC machinery manufacturer. We have our own two brands: CHEETECH (classic series) and MISSILECNC (advanced series). MISSILECNC ecpanded its presence with over 5,000 CNC routers and systems, involving more than 200 kinds of series: like woodworking CNC Router, Stone CNC Router, CNC Router with Pneumatic Tool Changer and Automatic Tool Changing CNC Router, Advertising CNC Router etc.
Questions and answer for Woodworking Engraving Carving Machine 1325 CNC Router :
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
