china cabinet servo woodworking cnc router with auto load unload system
Product description:

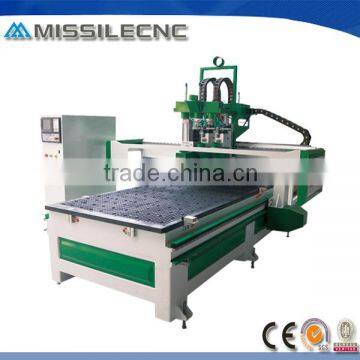

Our MISSILE-1325NMB02 woodworking cnc router is designed for Nested Based Applications. This cabinet woodworking cnc router integrate with auto load table, two spindles tool change cnc machine, auto offloading table and drilling units, for mass production and kinds of patterns.
Parameters
X,Y,Z Working Area |
1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy |
±0.05MM |
X,Y,Z Repositioning Accuracy |
±0.05mm |
Table Surface |
Vacuum table |
Frame |
Heavy duty frame welded structure |
X, Y axis transmission |
Rack and Pinion gear |
Z transmission |
Ball Screw |
MAX traving speed |
80000mm/min |
Max. Working Speed |
25000mm/min |
Rail Configuration |
25 square rail (Taiwan HIWIN) |
Spindle Power |
4.5KW air cooled spindle*2 |
Spindle rotationg Speed |
18000RPM |
Drive Motors |
JAPAN YASKAWA servo |
Working Voltage |
AC380V/50Hz,3PH |
Operating System |
TAIWAN SYNTEC system |
Drilling |
5+4 boring units |
Computer Interface |
USB |
Command Language |
G code, u00, mmg, PLT, HPG |
Software Compatibility |
Type3,Wentai,Artcut (Option: ) |
Packing and Size |
Wooden case |
N.W. |
3500KG |
Features
The accessory
ATC double spindle Automatic load system
CNC routing system Boring units
Our MISSILE serial is customize high level model, for nested based manufacturing. There are cabinet woodworking cnc router with auto load unload system and high precise cnc router for cutting aluminum. We can product machine meeting your requirement.
The samples & application
Our cabinet woodworking cnc router is widely used in the wooden furniture, cabinet, kitchen, cabinet door, closet etc.
Working video
This is our cabinet woodworking cnc router working video for cutting panel furniture, for yr reference.
Workshop
FAQ
1.Question: what is this machine used for? Do i need a cnc router?
This machine can be used for furnitures engraving, room decorations, industrial equipment parts, music instrument, mold, art&craft, building models and advertisment industry.
2.Question: How can i find a machine which can satify my requirement within my budget? Which one is the right one for me?
1)What is the most complex design?
Do you plan to use the machine for cutting, carving, drilling, or all of the above?
2)X axis ( ____ )mm------W
Y axis ( ____ )mm ------L
Z axis ( ____ )mm ------H
3. Question: What is the machine warranty?
Our machine are with one year qualtiy warranty.
