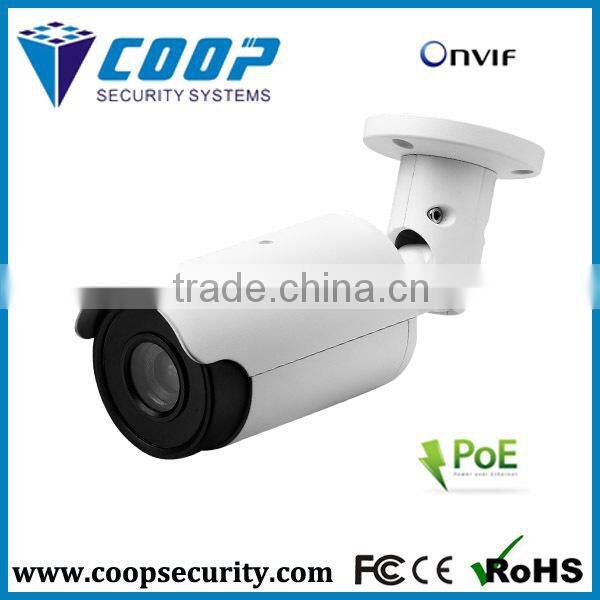

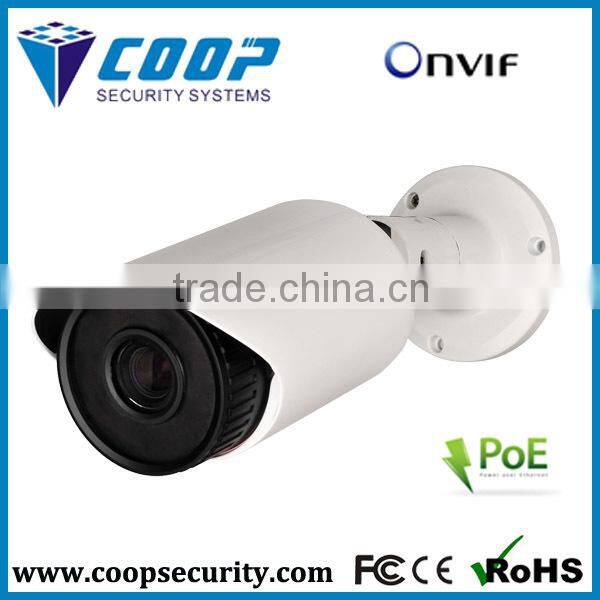

2015 New Products Electronics Starlight Camera Outdoor Waterproof IP66 MJPEG IP Camera POE Web Server, NVR, CMS

Product Name

IP-960P-C5A1

Model

1.3MP CMOS Economical starlight level super low illumination network camera

Image Sensor

1/2” 1.3MP CMOS IMX185B

Dynamic Range

69.5 dB

SNR

44dB

Lens Mount

CS

Min. Illumination

0.001Lux F1.4 (Color);0.00001Lux F1.4 (B/W)

Day & Night

Auto ICR optical filter color to black white, Fixed black white,fixed color,external control

Lens

8mm fixed lens

AGC

Auto / Manual

White Balance

Auto / Indoor / Outdoor / Sodium Mode / Manual

WDR

D-WDR

DNR

Support 2D NR,3D NR

Exposure Mode

Program Mode (User-Defined Shutter area),Shutter Mode(1/5 - 1/20,000s),Support slow shutter

Video Compression

H.264 High profile / M-JPEG

Audio

Audio Compression:G711,PCM     1CH Input:linearity,impedance 1KΩ,1CH output,linearity,impedance 600

Maximum Resolution

1280x960 22fps

Video Resolution

Main Stream(1280x960,1280×720,720×576,640×480)

Deputy Stream(640×480,352×288,320×240,176×144)

Output Bite Rate

Constant Bite Rate(CBR)or Variable Bite Rate(VBR),stream set area:32K~10M

Mobile Remote

Support Android,IOS

Network Protocols

TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,802.1X,P2P

Compatibility

Support ONVIF platform access of HIK,Dahua,XM CMS,Topsee UC2,support main current NVR ONVIF protocol accessing

Network Port

1CH 10/100BaseT Ethernet,RJ45 port

Power Supply

12VDC 0.15A

Dimension

280(L)mm x 95(W)mm × 90(H)mm

Operating Temperature

-30°C ~60°C

Operating Humidity

0%-90% RH (No condensation)
