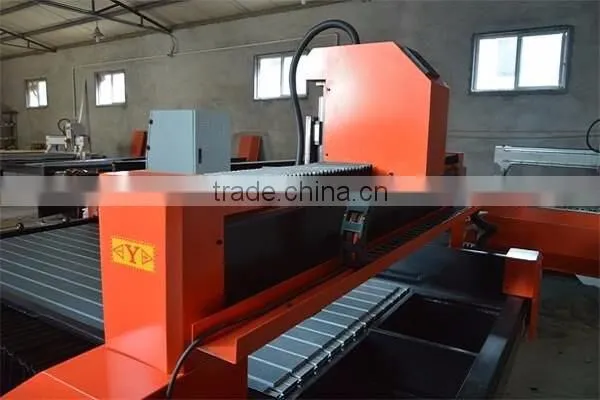

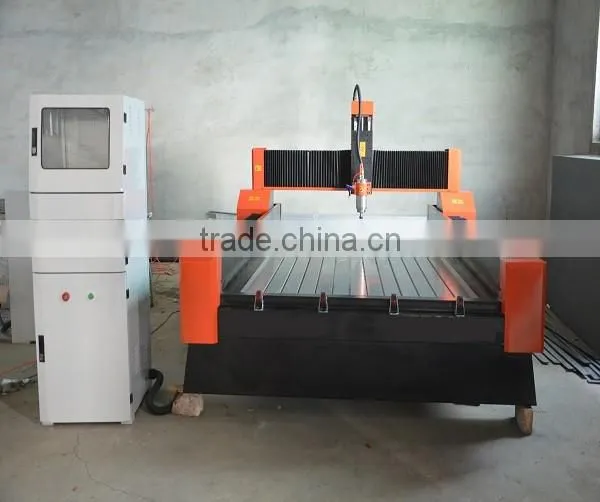

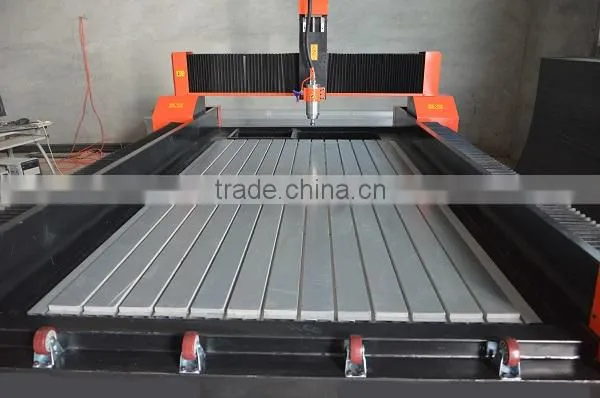

China professional cnc router 1325 for stone engraving
Features of cnc router 1325 for stone engraving :
This model machine is specially designed for all type of stone cnc router.
Structure:Thick square pipe welded structures, which strengthen hole lathe bed stability.
Transmission: X and Y Axis HELICAL rack. Y Axis two sides driving, fast speed, powerful.
Drive ststem: Leadshine stepper drive with high-speed stepper motors. It is better for all kinds of stone.
Control system: Nc-studio system.
Optional: Air-cooling or water-cooling spindle, DSP handling control ststem, Servo motor, customized model.
Applications of cnc router 1325 for stone engraving :
Wall painting, marble, granite,tombstone ceramic tile etc. These stone letter and patten engraving and relief engraving. Also used for copper, aluminum cuttings.
Description |
Parameter |
X,Y,Z Working Area |
1300x2500x250mm |
X,Y,Z Repositioning Accuracy |
±0.05mm |
Table Surface |

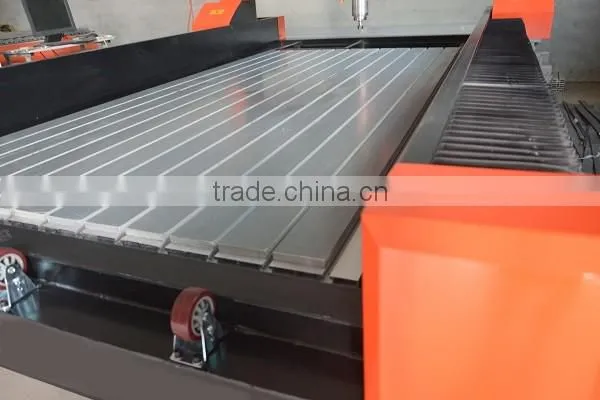

T-slot Table |
Frame |
Welded structure |
X, Y axis transmission |
Rack and Pinion gear |
Z transmission |
Ball Screw |
Rail Configuration |
20 square rail |
Max. Traveling Rate |
25000mm/min |
Max. Working Speed |
15000mm/min |
Spindle Power |
Water cooling 5.5KW(Opitioinal 3.0/4.5/7.5kw) spindle |
Spindle Speed |
24000RPM |
Drive Motors |
Stepper System (Opitional Yaskawa/ Panasonic Servo motors) |
Working Voltage |
AC380V/50Hz/3PH |
Command Language |
G Code |
Operating System |
Ncstudio System (Opitional:DSP) |
Computer Interface |
USB |
Software Compatibility |
Type3,Ucancam,Artcut (Optional ) |
Packing Size |
Wooden case |
N.W. |
1600Kg |
|
Wooden Box With Accessories inside
|
1),Electric Box(1pc) or computer control cabinet
|
|
|
(1),Tool box(1 set):
|
a,NCStudio Control card(1pc); b,Data cable(1pc); c,Disc(1pc); d,Power cable(1pc); e, Knife Tool(1set); f,Upper blade wrench(1 set); g,T-clip(1 set); h,Allen wrench(1 set); I,toolholder; j,Random Software Data sheet(1pc); k,Pump(2pcs); l,packing list(1pc)
|
|
Qty/Ctn |
1Set/ctn |
|
Cartoon Size |
Based on the products |
|
Q1.How to get the most suitable machine and best price?
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us? Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
