Specifications
1/4 type interline transfer CCD PTZ CameraHigh sensitivity with True Day/Night function
Mirror and Up-Side-Down function

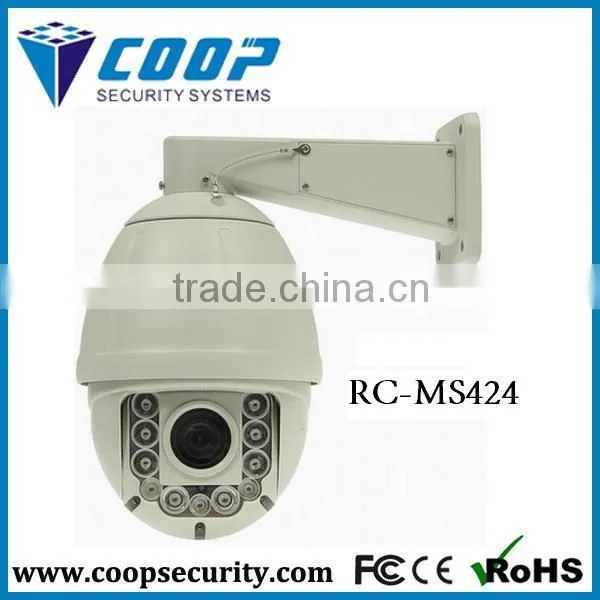

6'' Outdoor IR High Speed Dome Camera
Model NO.:RC-MS424
Features:
1/4 type interline transfer CCD with 976 (H) x 494 (V) pixels (NTSC),976 (H) x 582 (V) pixels (PAL)
24x Optical Auto focus Zoom lens :f=3.3 mm to 79.2 mm
20x Digital Zoom: Up to 480x with optical zoom (GP-MS424)
650 TV lines typical at color and B/W imaging horizontal resolution
Super Dynamic technology delivers 160x wider dynamic range compared to conventional cameras.
High sensitivity with True Day/Night function:
0.5 lx at color mode at F1.4 (Sens Up: Off, AGC: High)
0.04 lx at B/W mode at F1.4 (Sens Up: Off, AGC: High)
Day/Night operation can be selected to automatically or manually switch from color to B/W.
Privacy Mask: up to 8 masks can be displayed within one view angle.
Mirror and Up-Side-Down functions
VMD (Video Motion Detection)
DNR (Digital Noise Reduction)
Image Stabilizer
Technique Specification:
Model | RC-MS424 |
Camera | |
Image Sensor | 1/4 type interline transfer CCD |
Effective Pixels | NTSC: 976(H)x494(V) PAL: 976(H)x582(V) |
Scanning Mode | 2:1 interlace |
Scanning Area | 3.6(H)x2.7(V) mm |
Horizontal Resolution | 650 TV line typical |
Minimum Illumination | Color 0.5 lx (50 IRE, F1.4, Shutter: NTSC 1/60 sec, PAL 1/50 sec, Gain: High, Sense UP:OFF) B/W 0.04 lx (50 IRE, F1.4, Shutter: NTSC 1/60 sec, PAL 1/50 sec, Gain: High, Sense UP:OFF) |
Video S/N Ratio | More than 50 dB (AGC: OFF) |
Backlight compensation | Multi / Center / OFF (Mask settings possible) |
White Balance | AWC / ATW / MWB (Adjustable R and B signals) / Outdoor / Indoor / Fluorescent |
Iris Control | Auto / Manual |
AGC | Low / Middle / High / OFF (Adjustable) |
Super Dynamic | ON / OFF (ON: 54 dB typical) |
Electronic Shutter | NTSC:1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10 000 sec. PAL :1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10 000 sec. Long shutter : x1, x2, x4, x6, x10, x16, x32, x64, x128, x256, x512 |
Electronic Sensitivity UP | Auto / OFF, max 32x |
Electronic iris | ON / OFF |
Day & Night (IR) | Auto / Color / BW |
Digital Noise Reduction | High / Low |
Gamma | 0.45 / 1 / SMART1 / SMART2 |
Video Motion Detection | ON / OFF, adjustable sensitivities |
Privacy Mask | ON / OFF, up to 8 zones |
Mirror Image Effect | H/V / HV / OFF |
Image Stabilizer | ON / OFF |
Camera Title (OSD) | 16 alphanumeric characters (cameraID:8 + Title:8) |
Auto Focus | Auto / Manual / One-Push / Stop AF |
Aperture compensation | ON / OFF (H/V settings possible) |
Synchronization | Internal / External (V-sync.) |
Lens | |
Focal Length | 3.3 mm ~ 79.2 mm / F1.4-2.8 |
Zoom Ratio | 24x Optical Zoom, 20x Digital Zoom |
View Angle | Horizontal : 2.7°~ 60.2° Vertical : 2.0°~ 46.0° Diagonal : 3.4°~ 72.8° |
Pan and Tilt | |
Manual Speed | Pan(0.4°~180°/S) Tilt(0.4°~80°/S) |
Rotation | Pan 360°Continuously Tilt0-105° Auto Flip |
Focus Speed | Speed adjustable base on focus distance |
Preset | 128 |
Function | PRESET/TOUR/SCAN/PATTERN |
Display Zone | 8 editable title zone |
Alarm function | 7CH Alarm in, 2CH alarm out |
Video Out | 1.0Vp-p,75Ω,BNC Connector |
Communicate | RS485 Bus |
Protocol | PELCO-D,PELCO-P,KALATEL,VCL,MOLYNX,VICON etc |
Baud Rate | 2400/4800/9600/19200 bps |
Camera ID | 1~254 |
Infrared | |
IR Distance | 120M |
IR Intensity | Automatically adjusted, depending on the zoom ratio |
Alarm | |
Alarm Input | 7 Alarm input |
Alarm Output | 2 Alarm Output |
Input/output | |
Monitor Output | NTSC: Composite, 1.0 Vp-p, 75 Ω PAL : Composite, 1.0 Vp-p, 75 Ω |
General | |
Menu Language | English,Chinese |
Working Temperature | -40℃~+60℃ |
Working Humidity | 0~95%(None condensation) |
Protection | IP66,4000W lighting proof, wave proof, surge-proof |
Power | AC 24V±4V |
Consumption | (PTZ+IR)33W (PTZ+IR+Heating)53W |
