Specifications
2 Megapixel IP PTZ Camera1920x1080resolution
25fps low 180ms delay time
Horizontal 360 d(endless)
Vertical: 180(Auto Flip)

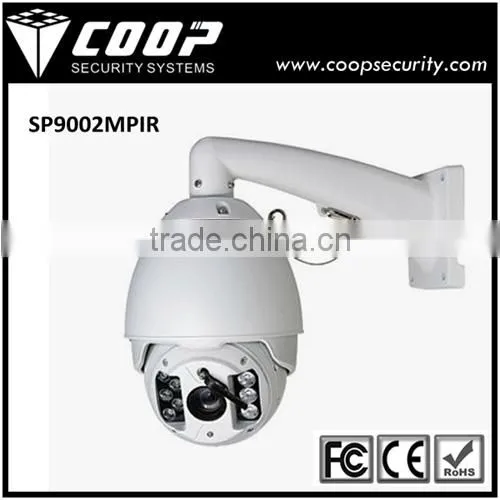

Weaterproof Waterproof Vandal-proof Outdoor High Speed 2.0MP PTZ IP Camera
Features of PTZ IP Camera
2MP 1080P speed dome camera
1920×1080resolution / 25fps low 180ms delay time
Horizontal 360°(endless) / Vertical: 180°(Auto Flip) / Recognization people face Max 100M
support guard function / support preset, cruise, line scan / support dual stream output
support motion detection/ support local and front end record and playback
Infrared sensitivity value can be adjusted
multi-user review simultaneously. Authority manage Limits.
Adopt wiper to clear lens
- Adpot TMS320DM368 video processor.
- adopt Linux embed operating system.
- adpot H.264 video compression, support dynamic rate control,
- support 1080P(1920×1080),D1(720×576),CIF(352×288),QCIF(176×144) video format,
- frame rate 10~25fps can be adjusted, simultaneously output dual stream, rate16Kbps~8Mbps can be adjusted,audio code standard AMR,G.711,rate: 4.75Kbps~12.2Kbps can be adjusted.
- Support: RTSP,HTTP, HTTPS,FTP,DHCP,MUDP,SMTP,CIFS,UPNP, PPPOE, NTP,DDNS.
- adopt RJ45, 10/100M IP adaptive, LAN video time delay< 180ms,
- IR LED outside it’s able to heat radiation,
- MAX 100M recognization people face,
- support multi-user to browser and Limits of authority manage,
- support image snapshot.
- Local storage,image parameter adjust,local and front end playback.
- Precise Motor driven, Horizontal 360°(0.5°~200°/S),vertical 180°(0.5°~60°/S),
- unlimited point rotation,adopt 4800bps fixed set-up.
- Support vertical image auto flip function,
- line scan speed high, middle, low can be adjusted.
- Max 128 preset, 16 group cruise can be choosed freely MAX 4 group cruise,
- support 4 group patter scan.
- Adopt aluminium seal structure, good heat radiation, waterproof grade IP66,
- standard with bracket.
- N/W: 6KG, Safe Electricity supply, DC15V±10%(4A)
- Power consumption 25W (When -25°C~60°C,humidity <95%,no condensation)
- Supply wiper clear function,
- Optional: USB storage(MAX 500G) built in TF card(MAX 16G),
- 1 channel audio talk back(input/output 1 channel)
- alarm (4channel input/1 channel output)
Processor |
DavinciTMS320DM368 |
Access Method |
Ethernet |
VideoCompressionStandard |
H.264 |
AudioCompressionStandard |
AMR,G.711 |
Max FrameRate |
25 Frame/S |
VideoResolution |
1920*1080(1080P),720*576(D1),352*288(CIF),176*144(QCIF) |
Stream |
Dual stream. Main stream can choose 1080P/D1, sub streamcan choose D1/CIF/QCIF |
VideoCompressionBit Rate |
16Kbps~8Mbps |
AudioCompressionBit rate |
AMR:4.75Kbps~12.2Kbps;G.711:64Kbps |
Image Delay |
<200MS |
Net Interface |
RJ-45 10/100M Network adaptive |
InternetProtocol |
RTSP/HTTP/HTTPS//FTP/DHCP/MUDP/SMTP/CIFS/UPNP/PPPOE/NTP/DDNS |
Front EndStorage Device |
USB storage device can support maximum 500G, TF cardsupport maximum 16G(optional) |
TalkbackFunction |
1 way MIC In input, 1 way Line out output(optional) |
AlarmInterface |
4 way in, 1 way out(optional) |
Motion Detect |
Sensitivity 1~100% is adjustable, linkage alarm can be set |
Per Package includes: 1 PTZ IP Camera + bracket
Packing: 1 pcs to 1 Box. 2 Boxes to 1 carton.
Delivery: Usually 7-10 workdays upon receipt of payment.
Shipping: within 10 workdays. Usually shipping by Express (DHL/UPS/ TNT / FedEx /EMS, etc.)
By Air or by sea for large order
1. Sample order is highly welcomed.
2 Your LOGO can be puttted on cameras.
2. Model Number can be customized.
3. Welcome OEM & ODM order, MOQ for OEM is 50pcs/model.
More Products related to PTZ IP Camera similar to NVR 16CH
Q. What's the MOQ for this item?
A. MOQ 1pcs. Sample order is welcome.
Q. What's the payment term?
A. We accept payment by T/T bank transfer, PayPal, or WesterUnion.
Q. What's the delivery time?
A. Usually in 7-10 workdays after payment received.
Q. What's your detailed warranty policy?
A. Please kindly refer to our webiste for related information: /Warranty.html
