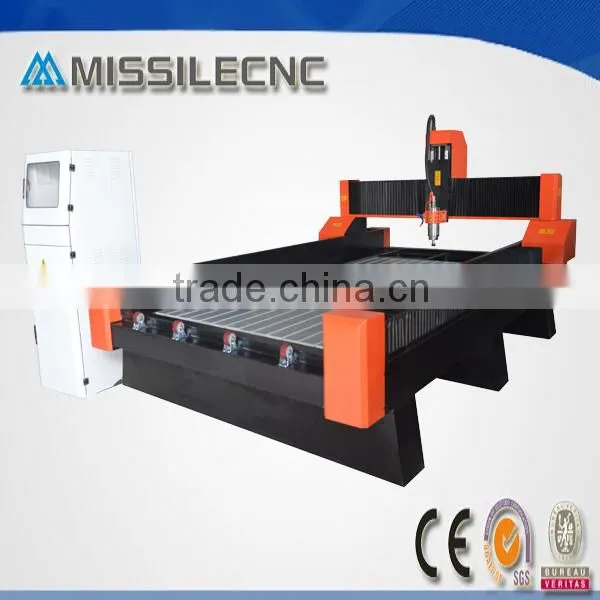

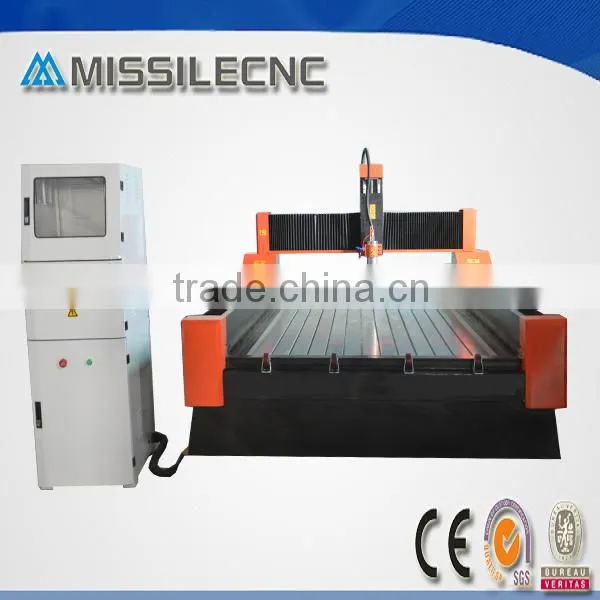

High precision 3d 1325 cnc router stone engraving machine
Features of cnc stone engraving machine :
This model machine is specially designed for all type of stone cnc router.

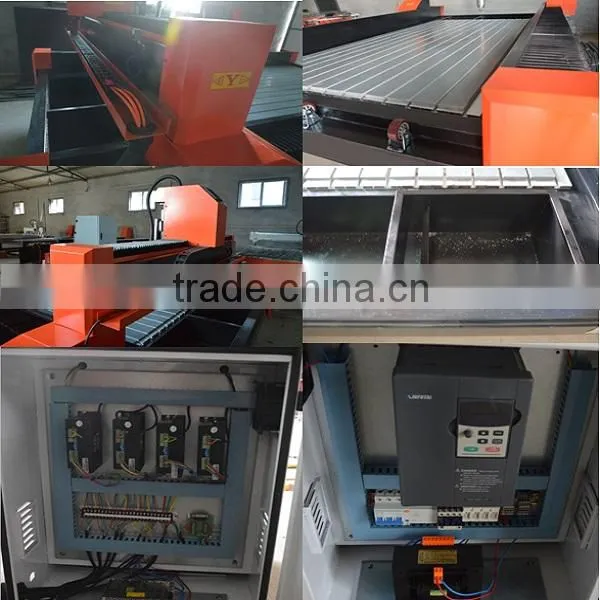

Structure:Thick square pipe welded structures, which strengthen hole lathe bed stability.
Transmission: X and Y Axis HELICAL rack. Y Axis two sides driving, fast speed, powerful.
Drive ststem: Leadshine stepper drive with high-speed stepper motors. It is better for all kinds of stone.
Control system: Nc-studio system.

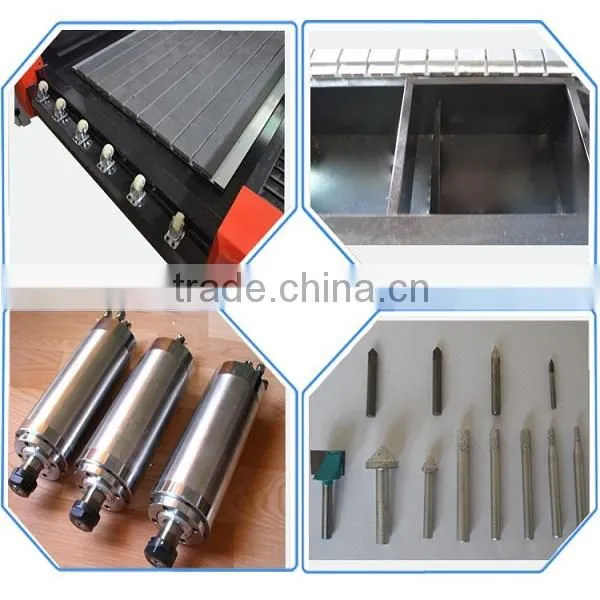

Optional: Air-cooling or water-cooling spindle, DSP handling control ststem, Servo motor, customized model.
Specifications of cnc stone engraving machine :
Description |
Parameter |
X,Y,Z Working Area |
1300x2500x250mm |
X,Y,Z Repositioning Accuracy |
±0.05mm |
Table Surface |
T-slot Table |
Frame |
Welded structure |
X, Y axis transmission |
Rack and Pinion gear |
Z transmission |
Ball Screw |
Rail Configuration |
20 square rail |
Max. Traveling Rate |
25000mm/min |
Max. Working Speed |
15000mm/min |
Spindle Power |
Water cooling 5.5KW(Opitioinal 3.0/4.5/7.5kw) spindle |
Spindle Speed |
24000RPM |
Drive Motors |
Stepper System (Opitional Yaskawa/ Panasonic Servo motors) |
Working Voltage |
AC380V/50Hz/3PH |
Command Language |
G Code |
Operating System |
Ncstudio System (Opitional:DSP) |
Computer Interface |
USB |
Software Compatibility |
Type3,Ucancam,Artcut (Optional ) |
Packing Size |
Wooden case |
N.W. |
1600Kg |
Applications of cnc stone engraving machine :
Wall painting, marble, granite,tombstone ceramic tile etc. These stone letter and patten engraving and relief engraving. Also used for copper, aluminum cuttings.
