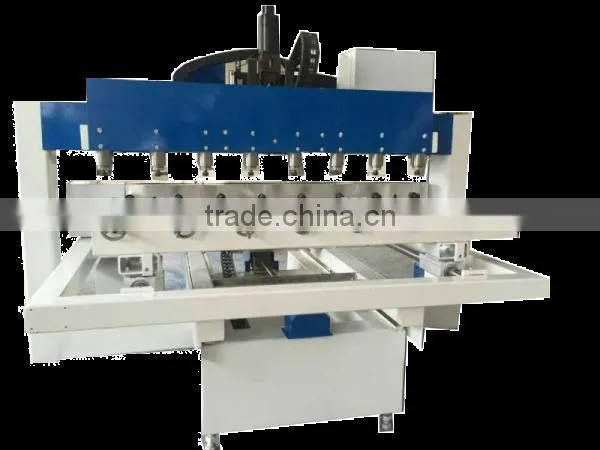

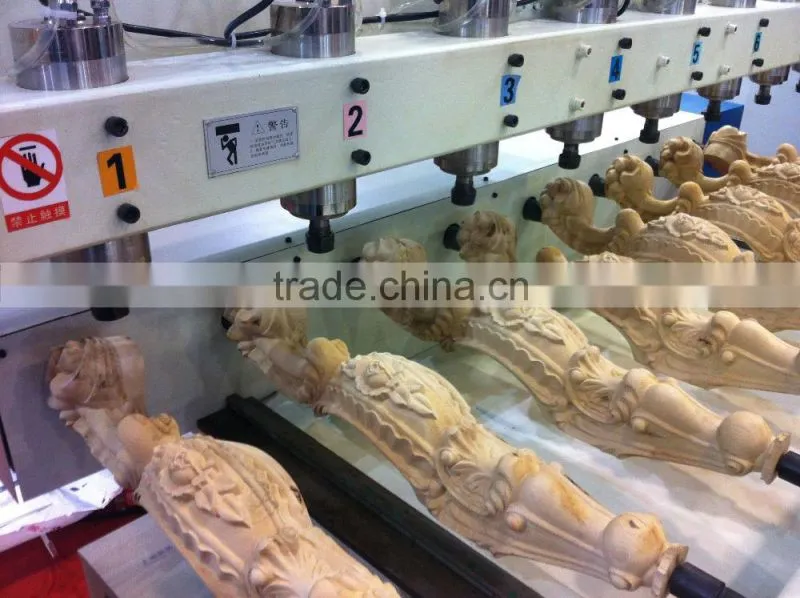

Industrial CNC 3D Engraving Cylinder 4 Axis Wood CNC Router Machine with 8 heads
1.Japan YASKAWA servo motors and drivers, world famous brand,very powerful,stable,low noise and much longer lifetime.

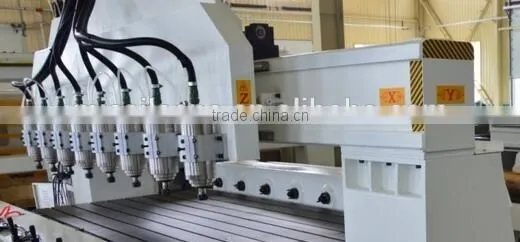

2. 8 pcs of 2.2kw water cooling spindle.
3. Original NC studio 4 axis control system,very powerful and professional for 4 axis;can memorize the working process.
4. Coated Ball screw gives it good resolution and less noise. We use Taiwan TBI brand,more stable and precise;For Z axis,we use double ballscrew,which has bigger and stronger holding power.
5. We use accurate LM linear (Taiwan HIWIN) 25#, more stable,higher precision,longer lifetime and lower noise.

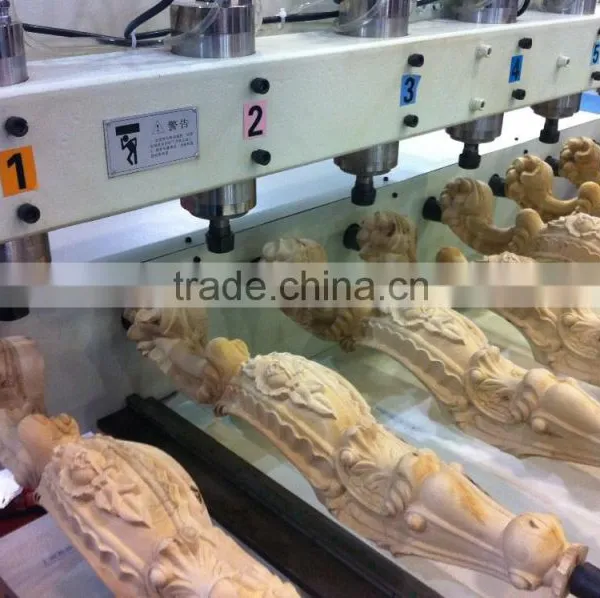

6.8 pcs of Rotary device: max. Diameter: 300mm, max. length: 1200mm.
7.Double use worktable. The flat table can be movable,so you can both work on flat and cylinder objects.
X,Y Working area |
2500*1300mm |
Z axis |
Z axis can reach 300mm |
Machine size |
3650*2450*1980mm |
type |
cylinder 4 axis wood ROUTER with 8 heads |
spindle |
8pcs of 2.2kw water cooling spindle |
Control system |
original NC studio 4 axis control system |
Linear rail |
25 # HIWIN Linear Guide way made in Taiwan |
transmission |
Imported high precision coated ball screw transmission (double ballscrew for Z axis) |
Motor and driver |
Japan YASKAWA servo |
Rotary device |
8 pcs of Rotary device: max. Diameter: 300mm, max. length: 1200mm |
switch |
Japanese OMRON Switch |
cable |
Highly flexible towline-only Cable Imported fire-resistant double-sheathed. |
cabinet |
Separate control cabinet |
Working voltage |
3PH 380V 50HZ |
package |
put into container |
1, Within 7 days since your local customs clearance: if the cnc machine’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have anyproblems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the laser machine
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
Dear, in order to recommend the best suitable machine with the best quality and price for you, please kindly contact me with below questions, our professional services will satisfy you!
1. what is you product?
2. what is the material of you product, and the size( length/width/thickness)?
3. what do you want to do on your product, cutting, drilling, milling, evgraving etc.?
4.what is the working area do you want?
5. do you have any other technical requirements? the more the better.
if you can provide some pictures of your products,that would be great!
