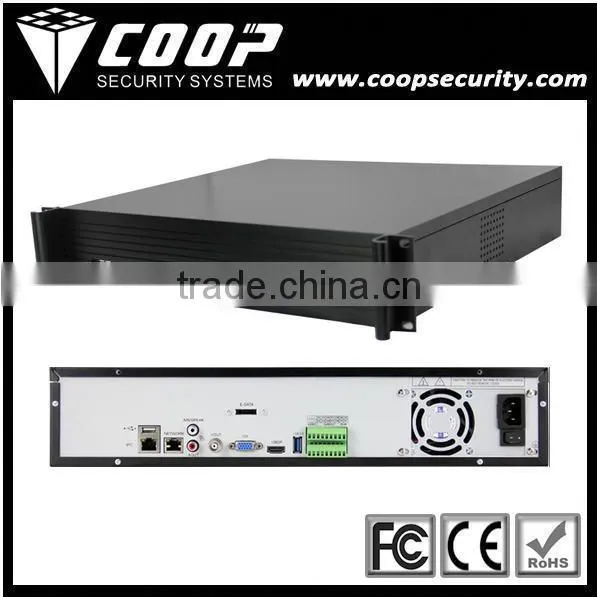

H.264 Support 9pcs HDD Port 2U Chassis 16CH High HD NVR

Name: H.264 Support 9pcs HDD Port 2U Chassis 16CH High HD NVR
Brand: COOP
SKU: 103887907
Availability: InStock

H.264 Support 9pcs HDD Port 2U Chassis 16CH High HD NVR thumbnail-1

H.264 Support 9pcs HDD Port 2U Chassis 16CH High HD NVR thumbnail-2

H.264 Support 9pcs HDD Port 2U Chassis 16CH High HD NVR photo-1

H.264 Support 9pcs HDD Port 2U Chassis 16CH High HD NVR photo-2

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

COOP

Model Number:

DV9016

Contact Supplier Request Quote Chat Now

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shipping from Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name COOP

Model Number DV9016

Support Onvif protocol H.264 2U Chassis 9HDD Port 16CH High resolution NVR

Model NO:DV9016

Product Description

Key Feature:

P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVRat any time and any place

Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that basedon Onvif, RTSP standard

Support megapixel HD network video preview, storage and playback;

Support search, playback and backup by event;

Support all channel image display on one screen at same time, support 4 channels’ image display by mainstream,and 4 channels playback;

Support monitor PTZ on preview mode

Offer CMS for free

Technical Specification:

Model Number		DV9016
Operating System		Embedded LINUX operating system
Image Code Control		Image code quality adjustable, variable bitstream and constant bitstream optional
Dual Stream		Each channel can set main stream and sub stream
Video Standard		1080P(1920×1080)30fps / 960P(1280×960) 30fps /720P(1280×720)30fps
Monitoring Image Quality		1080P(1920×1080) / 960P(1280×960) /720P(1280×720)
Image Motion Detection		Each screen can set multiple detection areas and set 6-level sensitivity
Recording Playback Quality		Any 4ch 1080P/960P/720P playback simultaneously
Region Cover		Every channel can set 4 cover regions(IPC Support)
Recording Mode		Support manual , auto, dynamic detection, alarm trigger record mode
Backup Way		Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup(Partly needs IPC Support)
Operation Way		Mouse
Local Login		User name and password
Recording Storage		Local HDD, network
External Ports	Video Input	16×(1280960)+sub[640480]+4Ref.+4Play 16ch 1.3MP IP Camera
		9x(19201080)+sub[960576]+4Ref.+4Play 9ch 2.0MP IP Camera
		4×(20481536)+sub[960576]+4Ref.+4Play 4ch 3.0MP IP Camera
		16×(1280960)+sub[720576]+1Ref.+4Play 16ch 1.3MP IP Camera
		16x(19201080)+sub[720576]+1Ref.+4Play 16ch 2.0MP IP Camera
	Audio Input	16ch network audio input
	Video Output	1ch VGA+1ch HDMI
	Audio Output	1ch RCA output
	Network Port	1 RJ45,10M/100M/1000M self-adaptive LAN port
	RS485 Port	Full duplex standard 485 port
	USB Port	3 USB 2.0 ports(one on front panel, two on rear panel)
	Alarm Input	4ch
	Alarm Output	1ch
	Wireless Port	3G,WIFI
HDD	HDD Port	9 SATA+1 E-SATA HDD ports
	MAX Capacity	Each port supports MAX 4TB HDD
Mobile Surveillance		Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone
Power Supply		ATX110-220V 300W 50-60Hz
Power Consumption		≤35W(without HDD)
Working Temperature		-10℃~+55℃
Working Humidity		10%-90%

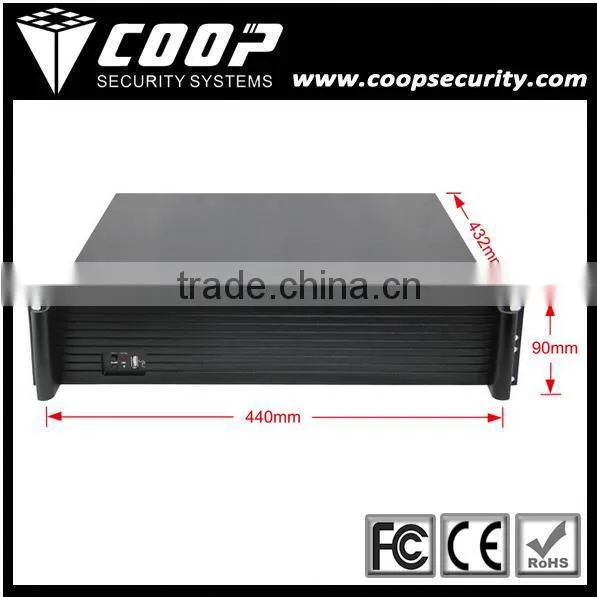

Dimension		Equipment: 440mm×450mm×90mm, Packing: 539mm×550mm×225mm
Installation Way		Desktop Installation
