Easy Operate PTZ Keyboard Controller Joystick TFT LCD Keyboard CCTV PTZ Controller K006-SD/K006-HD
LCD Keyboard CCTV PTZ Controller Features and Benefits:
Dome/DVR/ Matrix and compatible with multi-protocols, also support 4pcs keyboard linkage. 8 inch HD TFT LCD screen with foldaway structure.
Specification
- 8 inch HD TFT LCD screen for real-time video display
- HD-SDI/ NTSC/ PAL format adaptable automatically
- English OSD menu, easy to set all parameters.
- Support VBS,VGA signal input, resolution 800*600 pixel
- Support HD-SDI signal input and HDMI signal output (720P/50.720P/60.1080i/50.1080i/60.1080P/25.1080P/30)
- May control different brands high speed dome, mainstream DVR (Dahua/ Hikvision) and PELCO matrix
- Individual design for interface may easy updated based on different market requirements.
- Low consumption, only 1w when standby
- Foldaway structure can display the best angle of view
- Built-in Ni-MH battery ,can work well with no electrical site, easy moveable
LCD Keyboard CCTV PTZ Controller Specification:
Model No. |
K006-SD |
Standard Definition |
|
K006-HD |
High Definition |
LCD screen |
8" TFT-LCD |
|
View angle |
0°~135° |
|
Video input |
Complex video(NTSC/PAL),HD-SDI, VGA |
|
communication |
RS232,RS485 |
|
Distance |
Max. transmitting distance 1200m |
|
Baud rate |
2400bps,4800bps,9600bps,19200bps |
|
Protocol |
PELCO P/D, VISCA,DAHUA,HAIKAN |
|
Power supply |
DC( 9V~12V)±10% |
|
Electric current |
350mA |
|
Battery |
Ni-MH 700mAh |
|
Power consumption |
4.2W |
|
Standby consumption |
1W |
|
Environment temperature |
-20℃ ~ +50℃ |
|
Humidity |
0~95%(Non-condensation) |
|

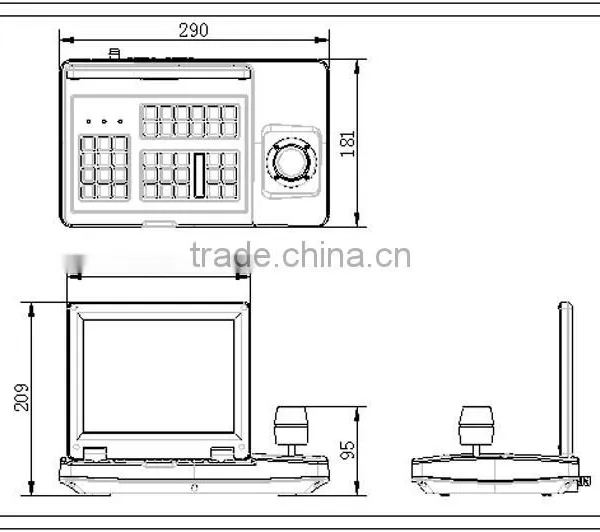

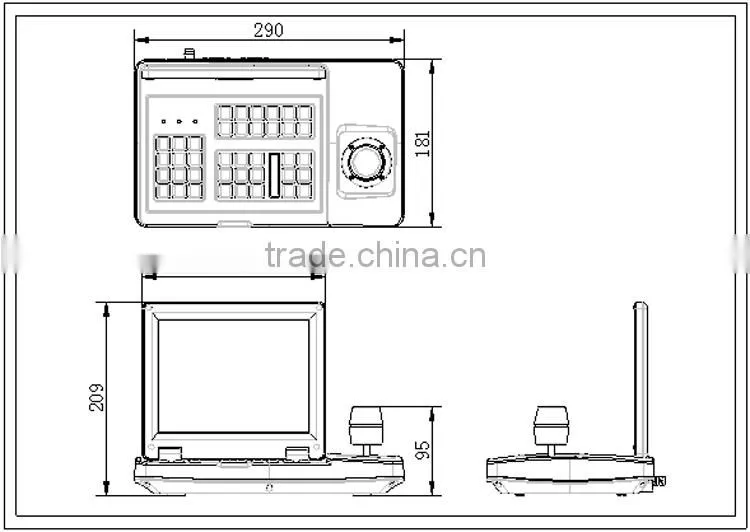

Dimension |
290(L)*191(W)*95(H)mm |
|
Net weight |
1.6Kg |
|

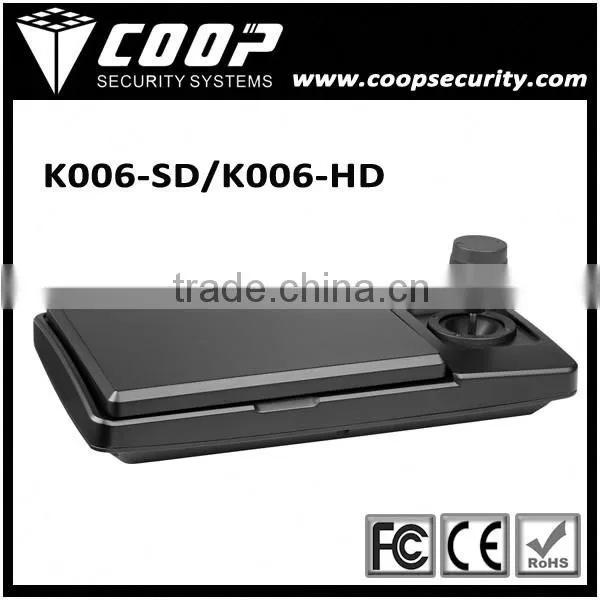

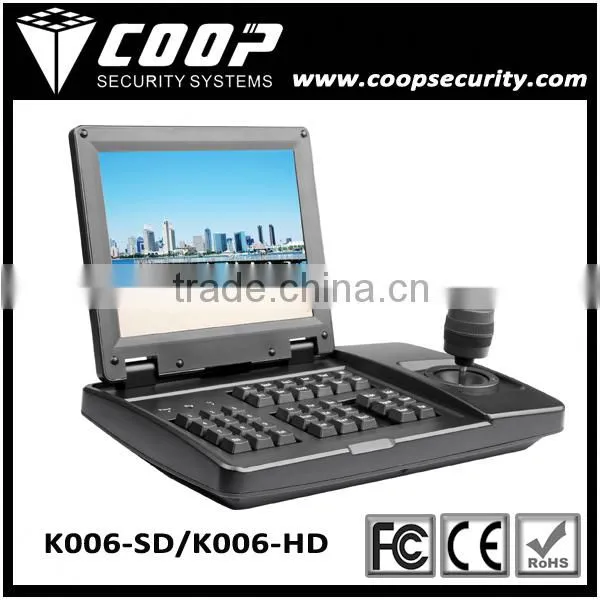

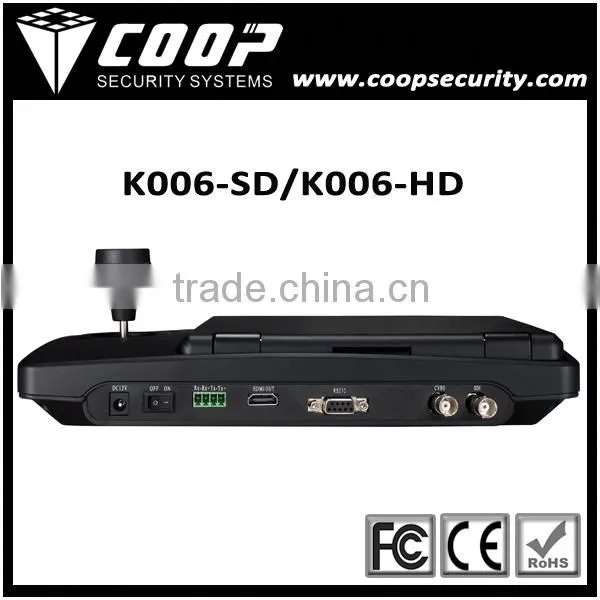

LCD Keyboard CCTV PTZ Controller Pictures:
COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Taipei International Show:
1. Transportation: UPS, TNT, DHL, EMS or FEDEX.
2. Item will be shipped out within 7 working days upon receipt of the payment.
3. Shipment may arrive within 5 – 16 days. Actual delivery days would be different for varies countries.
1. Pls report us if there are any problem, we will solve it ASAP.
2. This items comes with 2 YEARS
Q: How long your delivery time?
A: In general, the time is about one week.
Q: What’s your payment?
A: We accept payment by TT Bank Transfer in this stage.
